Atmos GS wood gasifier 25 kW – Efficient gasification boiler 🔥

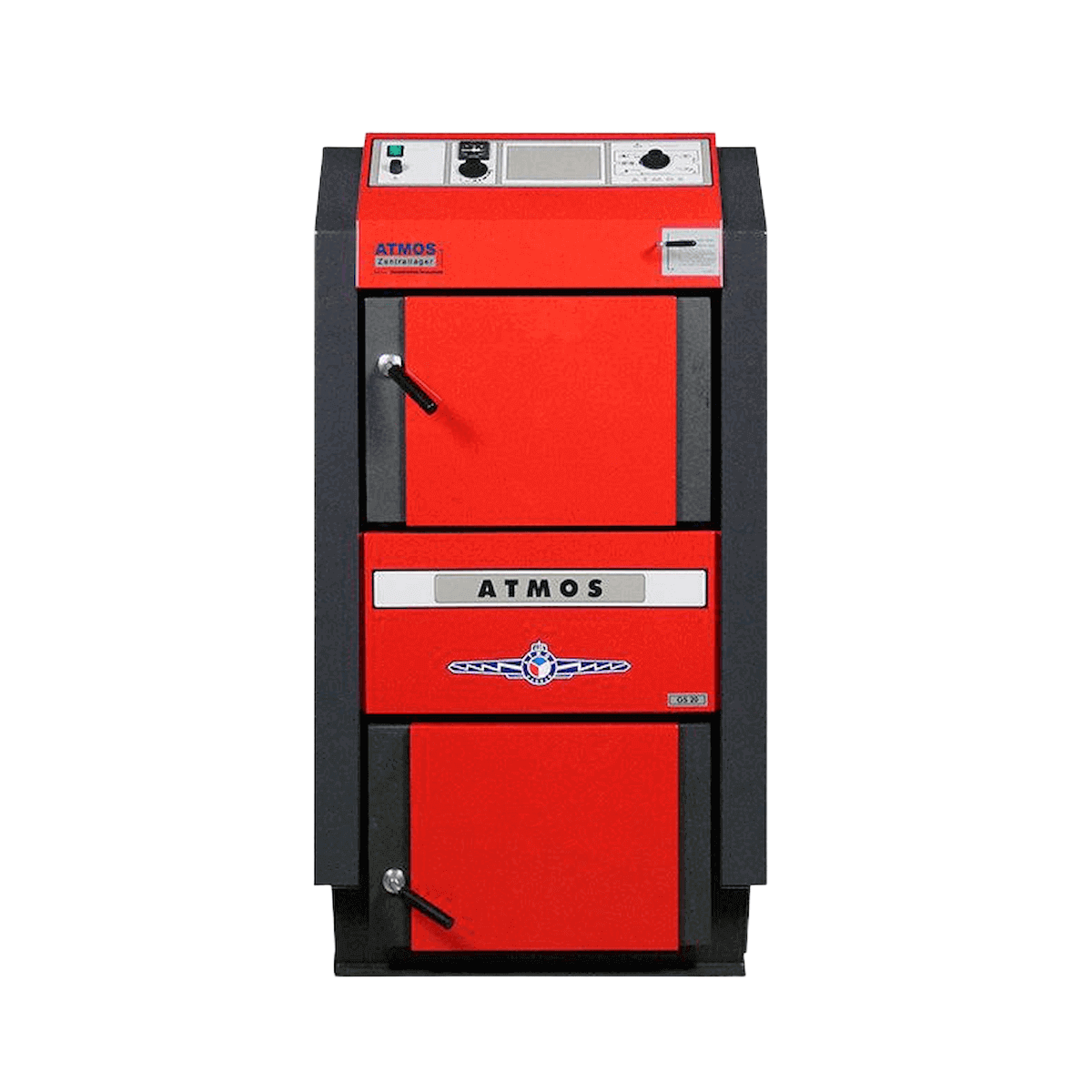

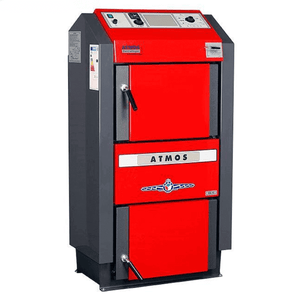

Wood boiler Atmos - GS 25 kW

Atmos GS wood gasifier solid fuel

Atmos wood boiler - GS wood gasifier solid fuel have an impressive efficiency of up to 87.1%. The design of the Atmos GS is based on the proven ATMOS GSE series However, it differs in that it does not have an additional exhaust gas heat exchanger and features a modified design of the ceramic molded parts in the filling and combustion chambers. These differences result in a slightly lower efficiency compared to the GSE series, but make the price-performance ratio even more attractive. Despite these modifications, the GS is now one of the most popular wood gasification boilers in the ATMOS portfolio.

The robust construction and high reliability make the Atmos GS wood gasification boiler the preferred solution for many users who value efficiency, durability, and sustainable operation with logs. This gasification boiler offers an efficient alternative to traditional heating methods, especially for households and facilities with high heat requirements.

Advantages:

Atmos wood boiler - GS wood gasifier solid fuel

• Gasification boiler made of high-quality 6 mm and 8 mm boiler steel, which ensures maximum stability and a long service life
• Generously dimensioned filling chamber allows comfortable adding of longer logs and ensures longer burning time
• Flexible door hinge: Left-hand side as standard, can be subsequently changed to right-hand side depending on the space situation in the boiler room
• Durable, replaceable fireclay lining (up to 4 cm thick) optimally protects the filling and combustion chamber from high temperatures and ensures an extended service life of the boiler
• Integrated safety heat exchanger (1/2") supports the thermal safety device for safe operation
• Innovative parallel and V-shaped filling chamber geometry promotes even combustion, prevents the formation of hollow fire and thus increases efficiency
• Comprehensive thermal insulation made of high-quality mineral wool reduces heat loss and maximizes energy efficiency
• Automatic switch-off after the wood has completely burned out – ensures safety and comfort
• Boiler control panel is prepared for the integration of a weather-compensated control system; thus allows the control of several heating circuits, including the solar circuit
• Meets the requirements of EN303-5 CE-0036 for environmentally friendly and safe heating

Technical data

• Energy efficiency class: A+

• Boiler class: 5

• Nominal heat output: 25 kW

• Efficiency: 86.1%

• Tensile force: 23 Pa

• CO content: 89 mg/m³

• Dust emission: 11 mg/m³

• Prescribed fuel: logs

• Maximum firewood length: 530 mm

• Exhaust gas temperature: 225 °C

• Exhaust gas mass flow: 0.015 kg/s

• Height: 1,280 mm

• Width: 678 mm

• Depth: 959 mm

• Flue pipe connection: 150/152 mm

• Weight: 408 kg

Scope of delivery

• Atmos GS 25 kW wood gasifier
• Detailed assembly & Operating instructions
