WITA circulation pump – energy-efficient water circulation pump

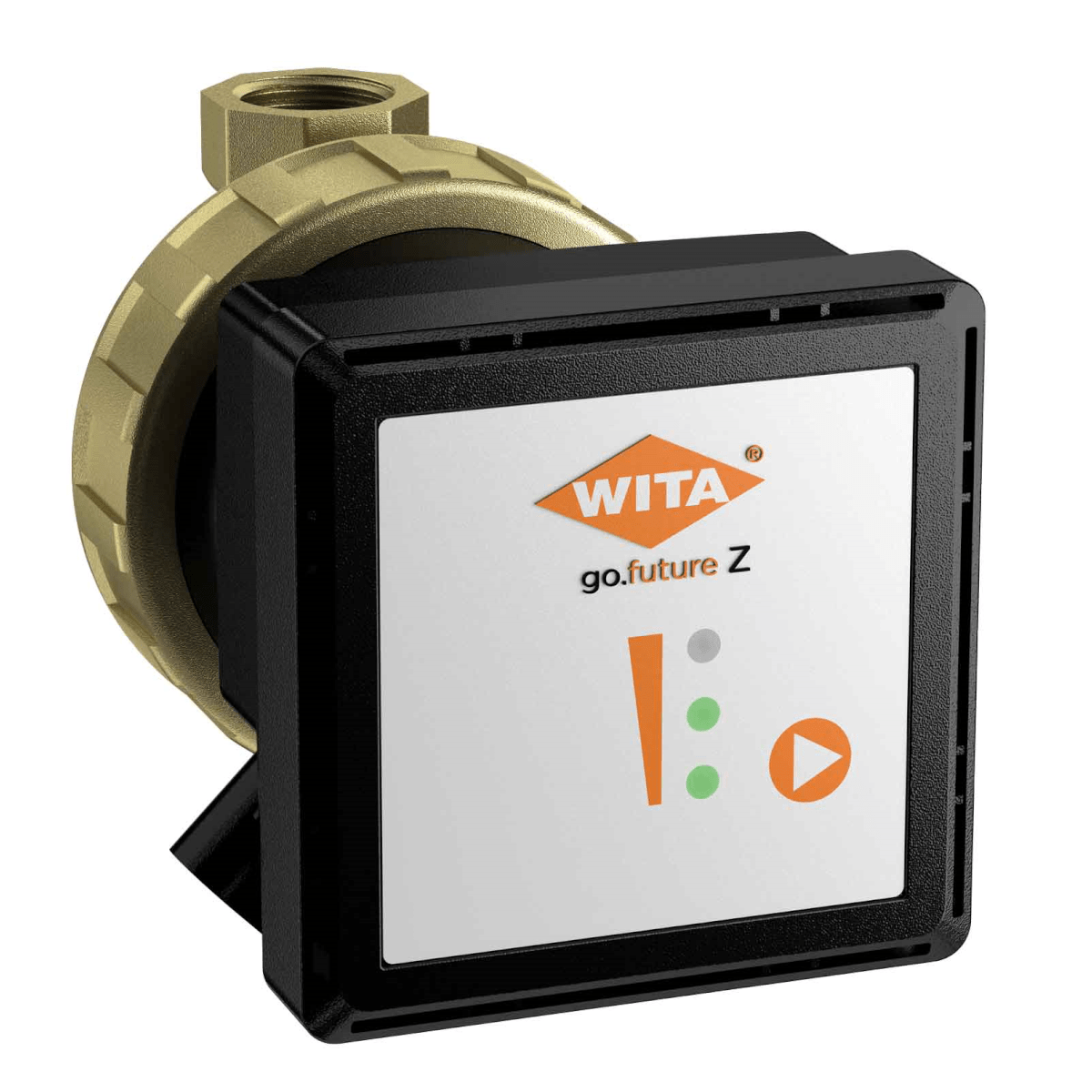

WITA®go.future Z – Energy-efficient water circulation pump

Product description

The WITA®go.future The Z pump stands out as a modern water circulation pump, distinguished by its exceptional energy efficiency. It not only saves energy but also ensures reliable operation in daily use. This pump is ideal for heating systems where a cost-effective and sustainable solution is required.

Energy efficiency and ease of use

Thanks to the innovative technology of WITA® energy-efficient pumps, energy consumption can be reduced by up to 80% compared to conventional circulation pumps. This not only results in a significant reduction in operating costs but also in environmentally friendly operation.

The simple one-touch operation allows for quick selection between three different performance curves. This enables users to individually adapt the operation to their specific needs and benefit from optimal flow rate and energy savings.

Performance characteristics and technical data

The pump offers a maximum delivery head of 1.4 m and a flow rate of up to 650 l/h. With a variable power consumption between 2.5 and 7.0 watts, it adapts to the requirements of the respective heating system. Control is achieved through three constant characteristic curves, ensuring consistent and reliable operation.

In addition, WITA® worksgo.future The system operates at ambient temperatures from 0 °C to +40 °C and media temperatures from +5 °C to +65 °C. The maximum system pressure is 10 bar, ensuring safe operation in various installations.

Material quality and practical properties

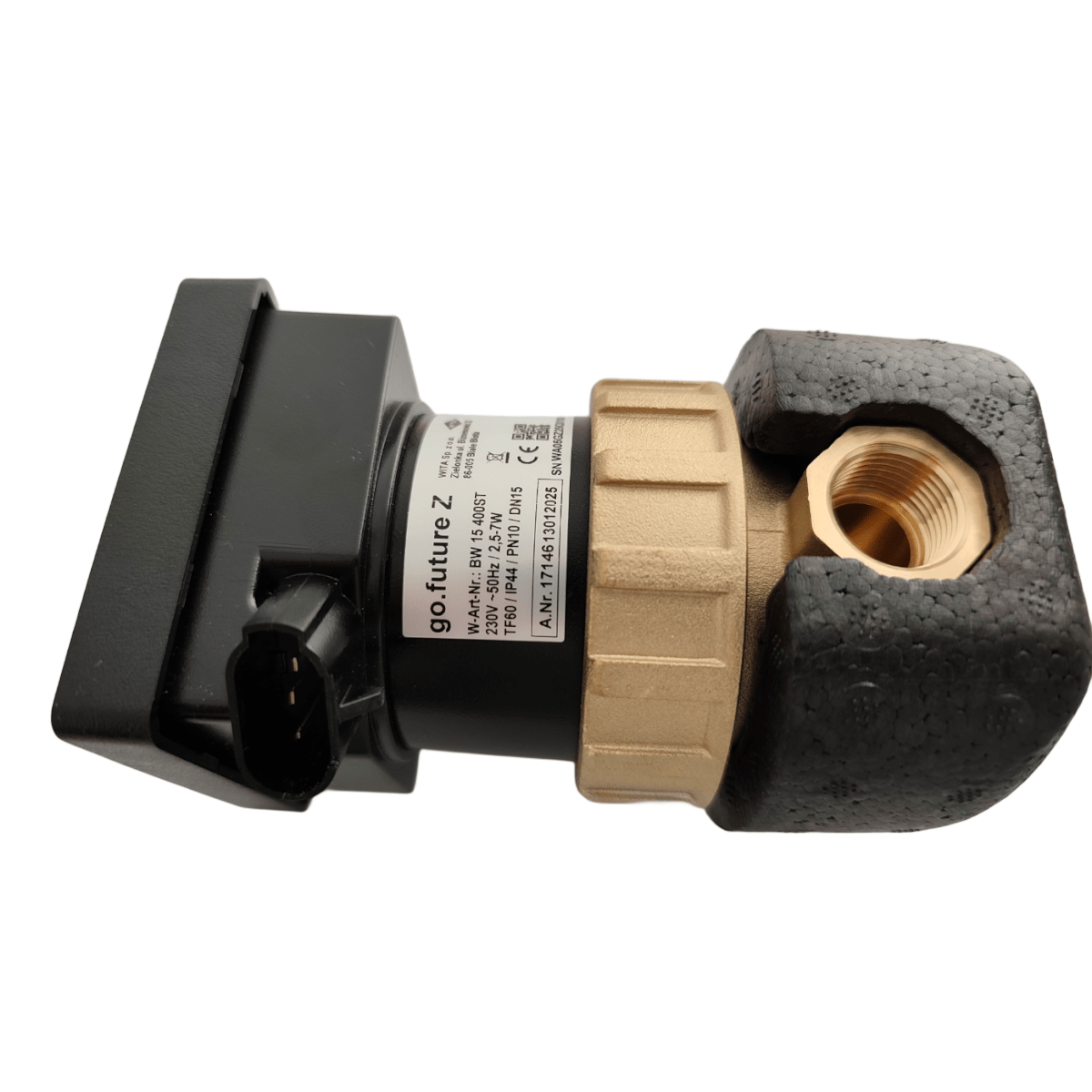

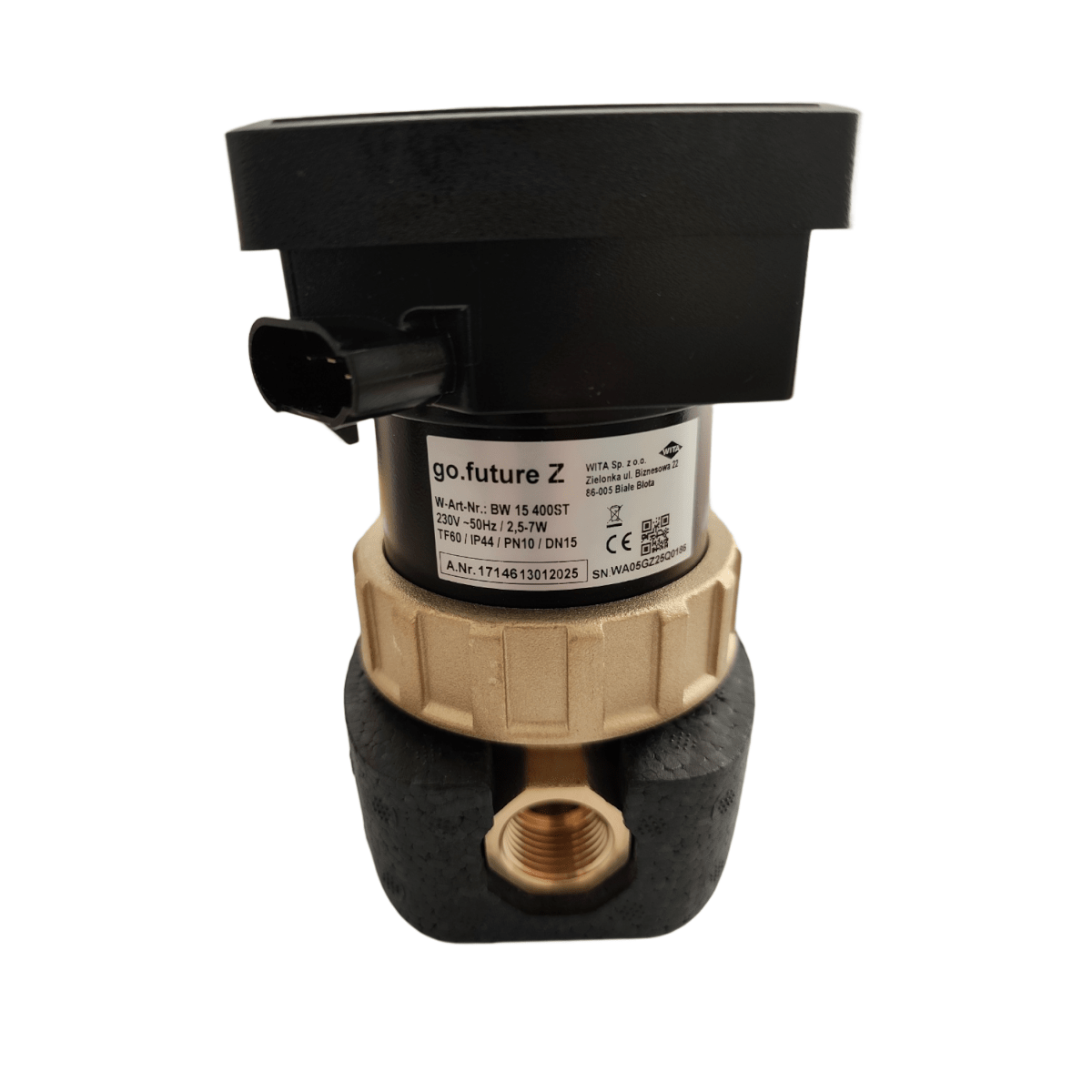

The pump housing is made of high-quality brass, ensuring not only durability but also stable and reliable operation. Its compact installation length of 81 mm and DN 15 connection allow for easy integration into existing systems.

The 230V, 50Hz supply voltage ensures smooth operation in typical household and commercial settings. Thanks to its IP44 protection rating, the pump is protected against the ingress of solid foreign objects and water, further expanding its range of applications.

Technical data

Scope of delivery

• WITA drinking water circulation pump go.future Z
• Assembly & User manual

Download

• Datasheet
