WITA circulation pump - energy -efficient water circulation pump

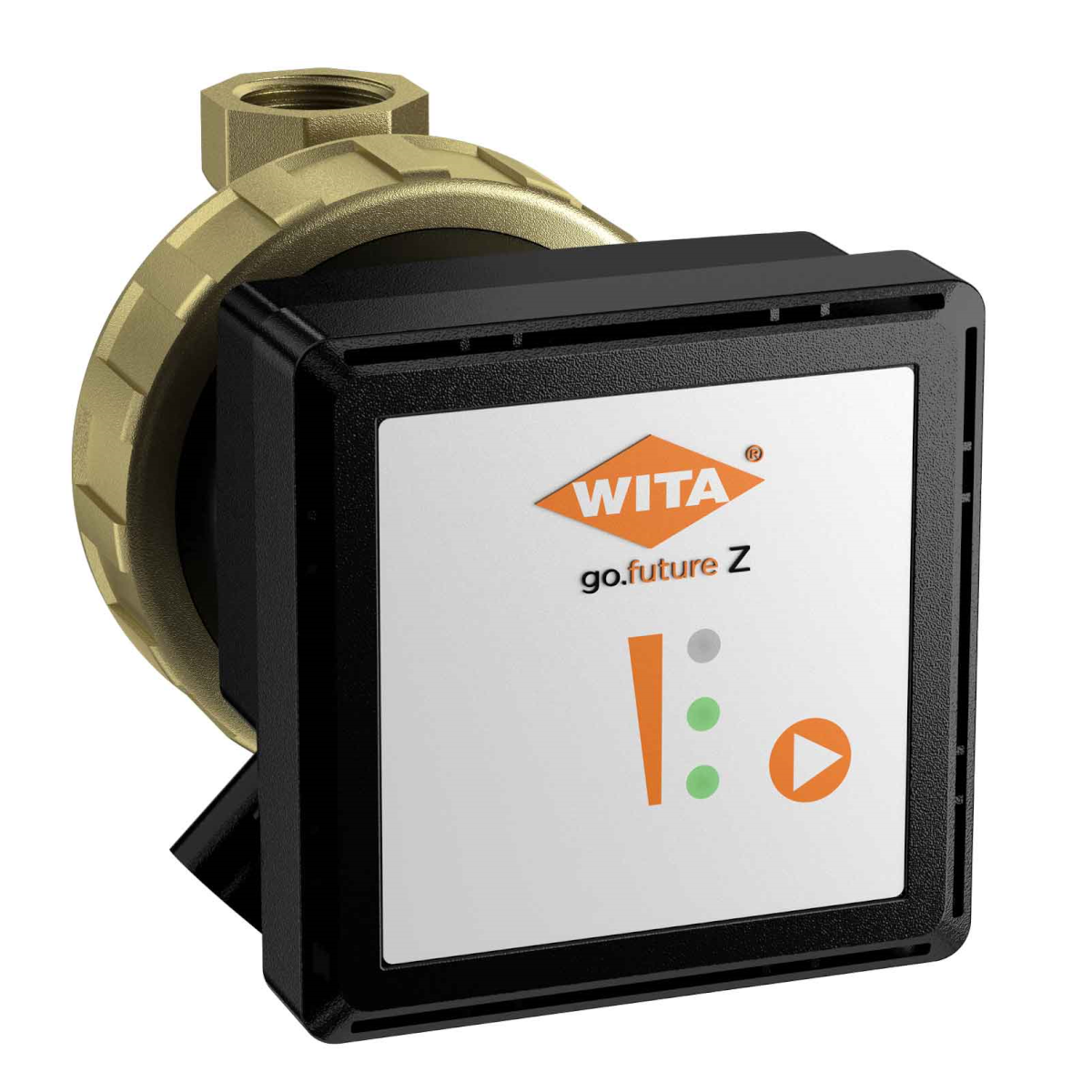

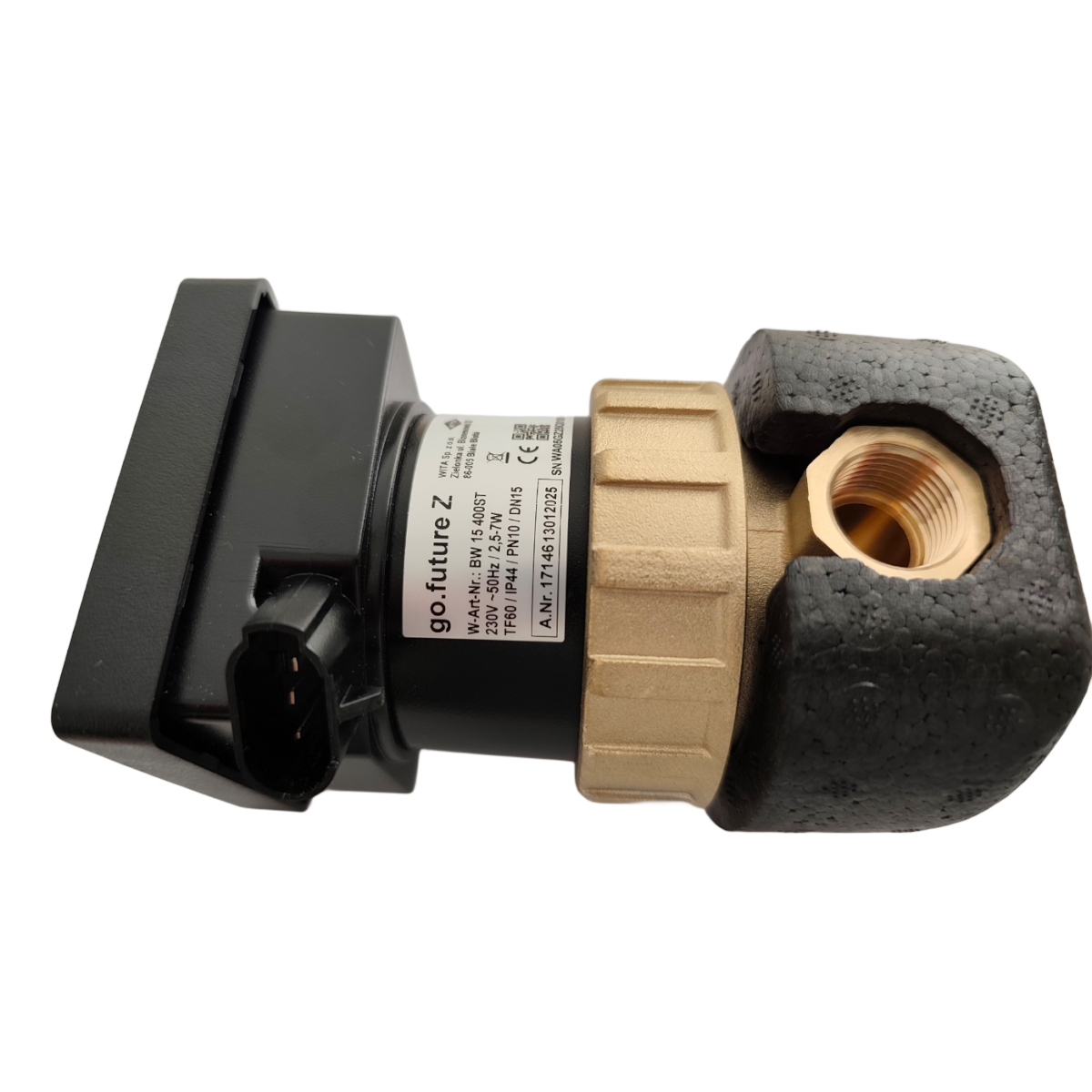

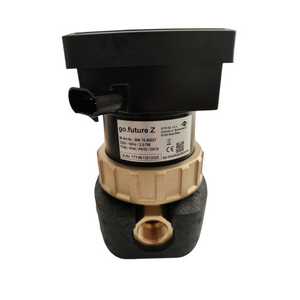

WITA®go.future Z – Energy-efficient water circulation pump

Product description

The WITA®go.future Z is a modern water circulation pump characterized by its exceptional energy efficiency. It not only saves energy but also enables reliable operation in daily use. The pump is ideal for heating systems where a cost-effective and sustainable solution is required.

Energy efficiency and ease of use

Thanks to the innovative technology of WITA® energy-efficient pumps, energy consumption can be reduced by up to 80% compared to conventional circulation pumps. This not only significantly reduces operating costs but also ensures environmentally friendly use.

The simple one-touch operation allows for quick selection between three different performance curves. This allows users to individually adapt operation to their specific needs and benefit from optimal pumping performance and energy savings.

Features and technical data

The pump offers a maximum head of 1.4 m and a flow rate of up to 650 l/h. With a variable power consumption between 2.5 and 7.0 watts, it adapts to the requirements of the respective heating system. Control is achieved via three constant characteristic curves, ensuring consistent and reliable operation.

In addition, WITA®go.future Z at an ambient temperature of 0 °C to +40 °C and a media temperature of +5 °C to +65 °C. The maximum system pressure is 10 bar, ensuring safe operation in a variety of installations.

Material quality and practical features

The pump housing is made of high-quality brass, ensuring not only durability but also stable and reliable operation. The compact installation length of 81 mm and the DN 15 connection ensure seamless integration into existing systems.

The supply voltage of 230V at 50 Hz also enables smooth operation in typical household and commercial applications. Thanks to its IP 44 protection rating, the pump is protected against the ingress of solid foreign objects and water, further expanding its application possibilities.

Technical data

Scope of delivery

• Drinking water circulation pump WITA go.future Z
• Assembly & Operating instructions

Download

• Data sheet
