Hot water memory Sunex Fish S8 X

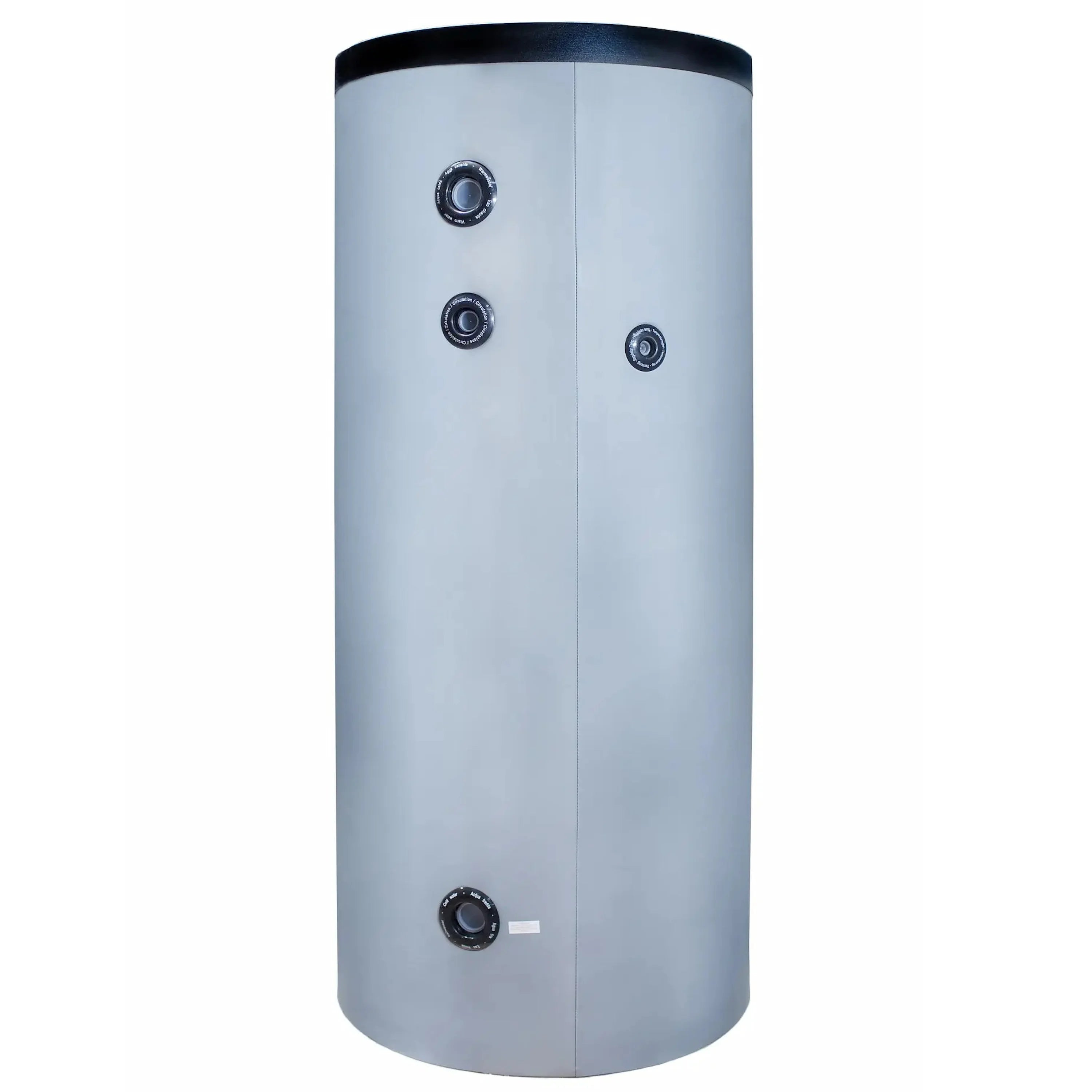

SUNEX Fish S8 X – standing hot water tank for the household

Product description

The SUNEX Fish S8 X is a standing hot water tank for the reliable provision of domestic hot water in private areas. Thanks to its robust construction made of S235JR steel and automatic welding processes, it offers a long-lasting solution for households with different heat needs.

The inner surface of the memory is covered with a high-quality enamel layer and is additionally protected by two magnesium anodes. This combination effectively reduces corrosion and, in accordance with DIN 4753, ensures that the process water only comes into contact with hygienically perfect surfaces.

The thermal insulation consists of 50 mm thick, CFC-free rigid polyurethane foam, which minimizes heat losses and reduces standby losses. A replaceable PVC outer jacket protects the insulation and facilitates maintenance and replacement.

Material: S235JR; maximum operating temperature: 95°C; maximum operating pressure: 10 bar; maximum test pressure: 15 bar. Inspection openings are available in diameters of ø122 mm and ø179 mm.

The standard equipment includes an inspection opening, a thermometer, a sleeve for an electric heating element and two magnesium anodes. The gray exterior color gives the device an unobtrusive appearance. During installation and maintenance, observe the applicable standards and have connection work carried out by qualified specialist personnel.

Technical data

• Material: S235JR
• Welding: automatic welding
• Protection: high-quality enamel layer and 2 protective anodes
• Maximum operating pressure of the accumulator: 10 bar
• Maximum test pressure: 15 bar
• Maximum operating temperature: 95ºC
• Insulation: 50 mm thick polyurethane foam
• Outer jacket: gray color
• Inspection opening: ø 122 mm/ø 179 mm
