Hot water memory 100 liters with heating rod teri 1.5 kW

100-litre hot water tank with TERi 1.5 kW heating element – Efficient hot water preparation and reliable quality

Product overview

The 100-liter hot water tank offers a modern solution for centralized and safe domestic hot water heating. Thanks to its highly efficient heat exchanger, the water is optimally heated using energy from a solar thermal system or a boiler.

It can be flexibly integrated into various heating systems and thus ensures high hot water comfort with a demand between 100 and 180 liters.

Effective heat transfer and innovative additional option

The integrated heat exchanger with a surface area of 1.2 m² ensures effective heat transfer, while the tightly foamed polyurethane insulation minimizes energy losses. This enables efficient and cost-effective operation.

In addition, it is possible to retrofit the hot water tank with a 1 1/2"-electric heating element. This offers the advantage that photovoltaic systems can also be optimally integrated into the system, thus creating an adaptable solution for various energy sources.

High-quality corrosion protection and durability

The tank's interior lining is particularly resistant to corrosion thanks to a high-quality enamel coating. Additionally, a large magnesium anode is integrated, which acts as a sacrificial anode and further protects the drinking water tank from harmful influences.

These robust materials and the sophisticated tubular superstructure contribute to an extended service life of the device and ensure long-term reliable operation.

Technical details of the hot water tank

With a volume of 100 liters, a heat exchanger capacity of 5.27 liters, and an operating temperature of up to 95°C, this storage tank is a versatile and powerful solution. All connections for flow, return, and circulation are standardized, allowing for easy integration into existing systems.

The robust thermal insulation made of PUR foam, the high-quality connections such as the 1 1/2"-Connection for the electric heating element as well as the well-thought-out safety features characterize this hot water tank as a reliable and efficient product.

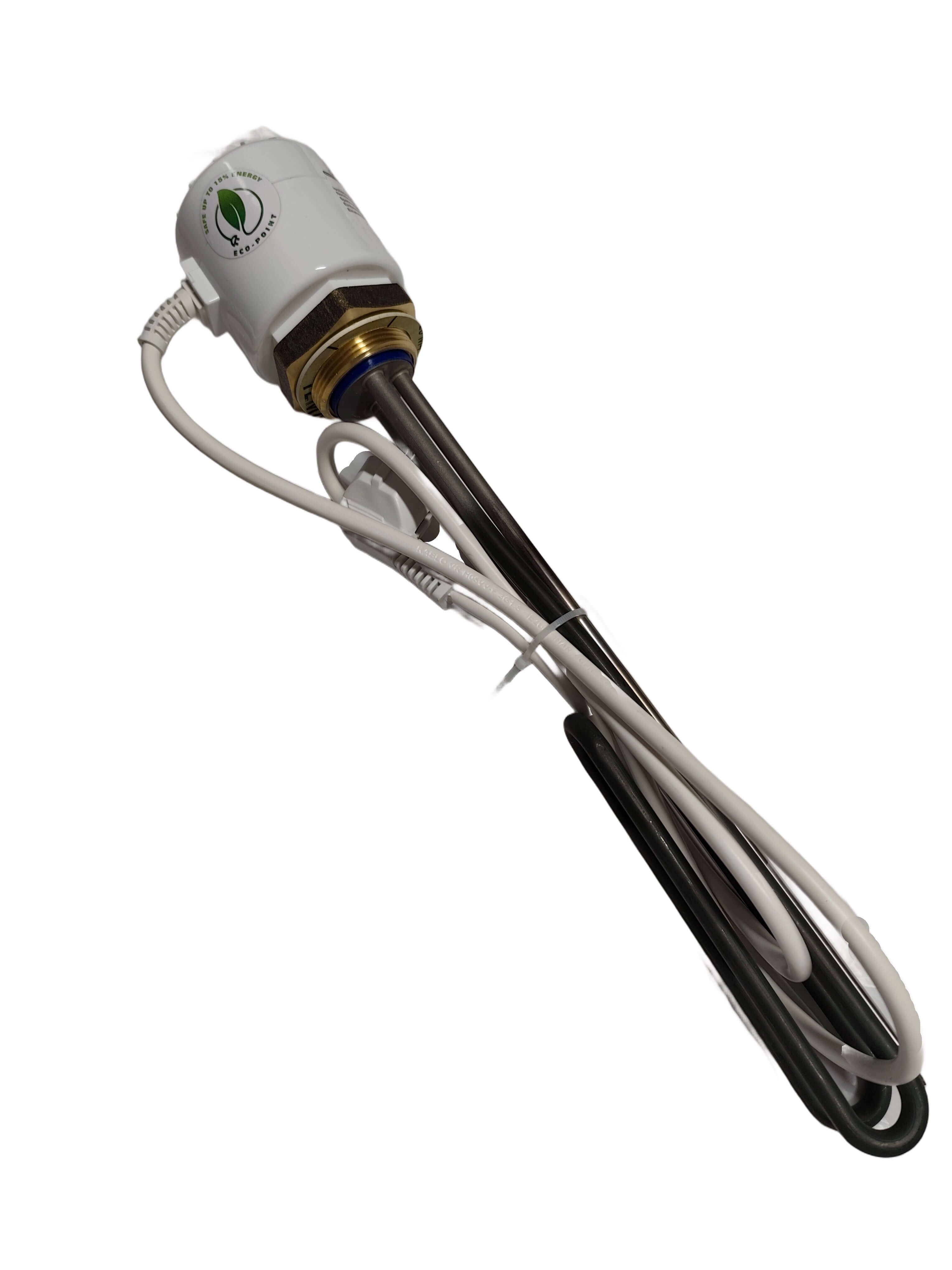

Screw-in heaters – Efficient heating of liquids

Complementing the hot water tank, the innovative screw-in heater offers an ideal solution for the direct heating of liquids. Thanks to its flexible application, it is suitable for use in water heaters, solar systems, buffer tanks, storage tanks, and stainless steel tanks.

The robust construction and the use of high-quality materials ensure safe and long-lasting heating performance even under demanding conditions.

Robust construction and easy installation

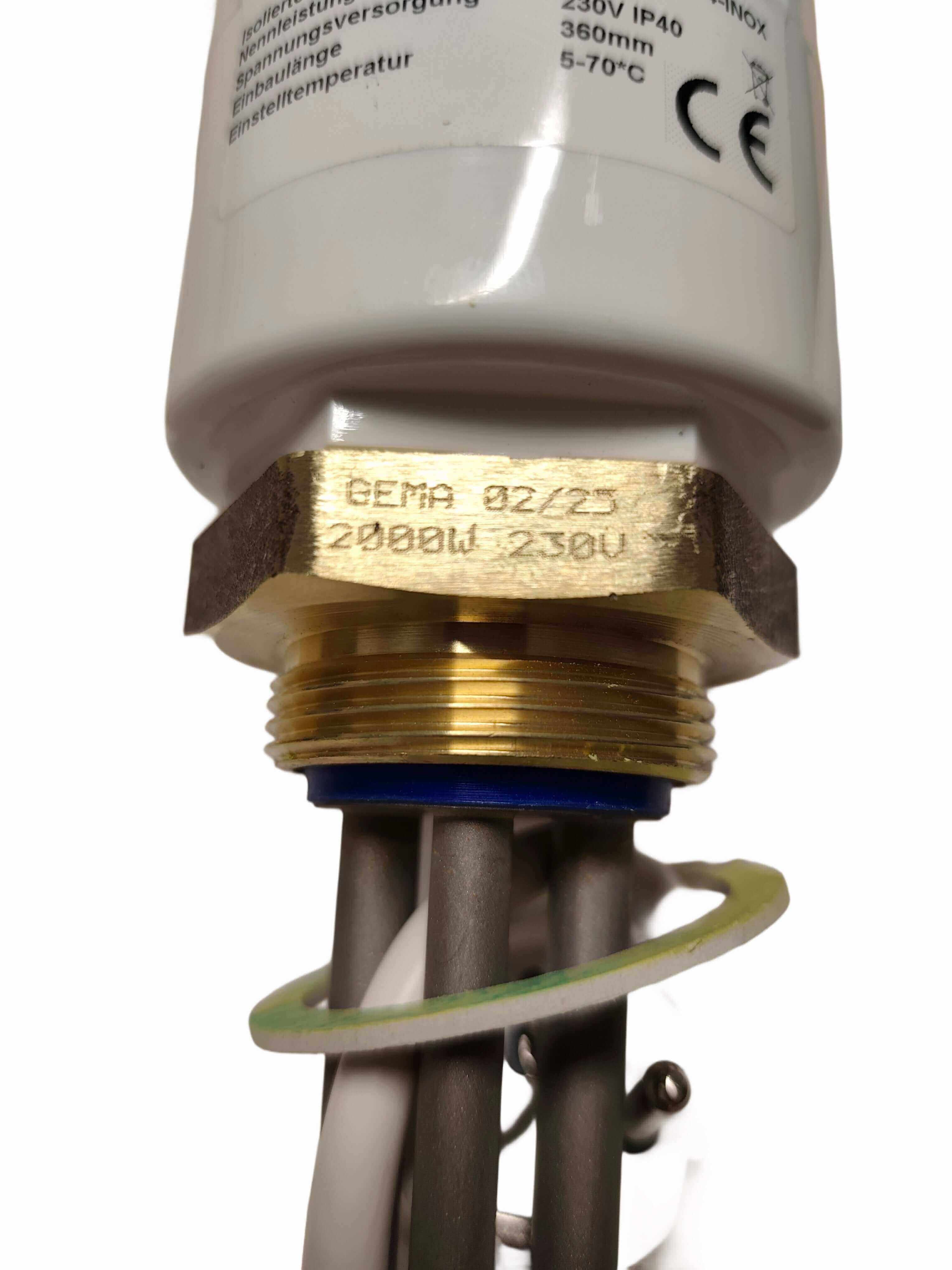

The design of the screw-in heater is based on a tubular heating element mounted in a capillary sheath. The well-designed 6/4" thread allows for safe and easy installation.

The use of acid-resistant Incoloy steel guarantees high resistance to corrosion, ensuring reliable functionality in the long term.

Practical functions and security features

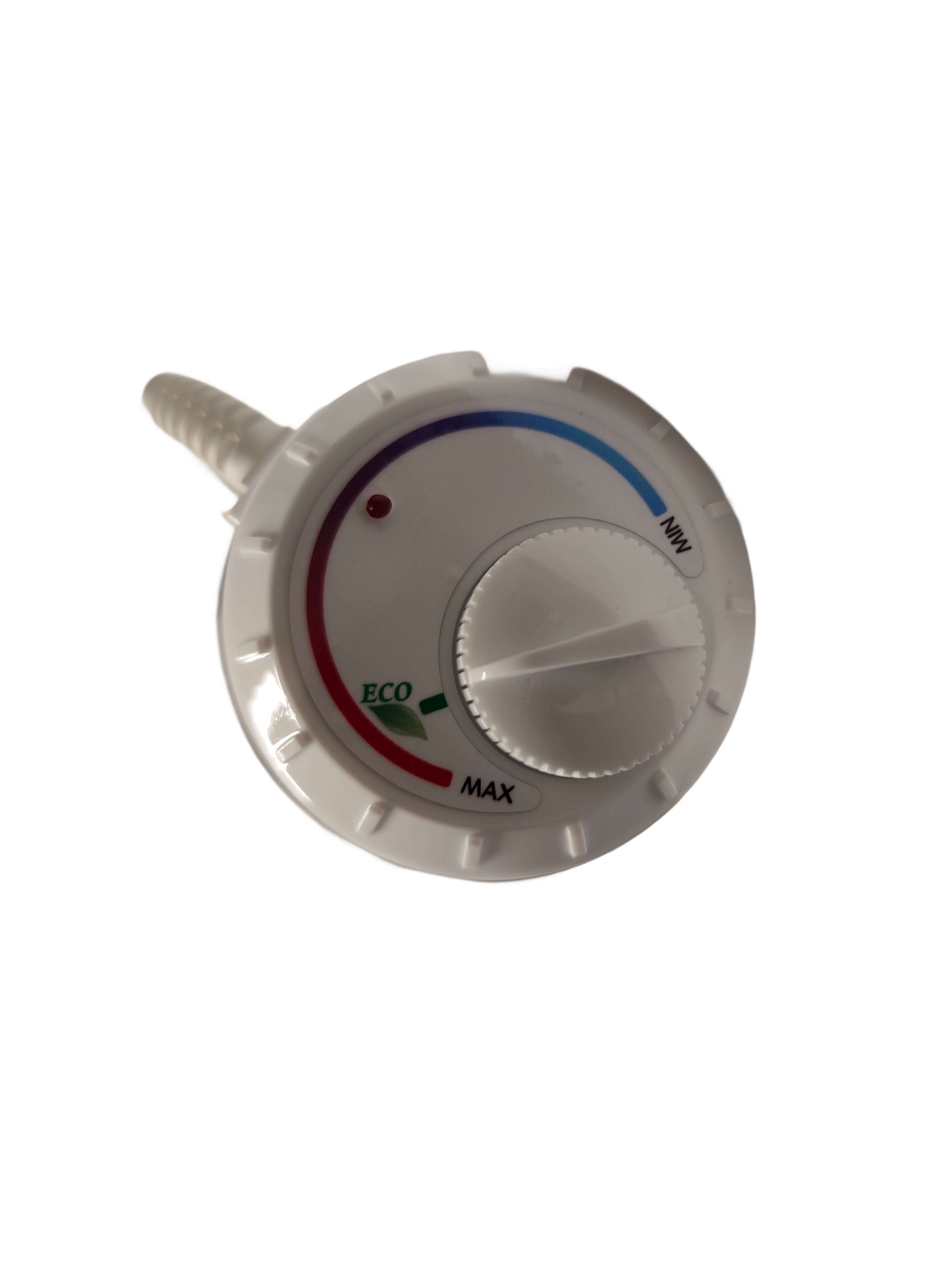

The practical plastic housing of the screw-in heater provides additional protection for the integrated electronics and is impact-resistant. Thanks to the adjustable operating temperature between 5 and 70 °C, the system can be precisely tailored to individual requirements.

Innovative safety features such as the non-automatic temperature limiter (TSR) with a maximum temperature of 87 °C and an operating indicator light help to increase user comfort and ensure the safe operation of the device.

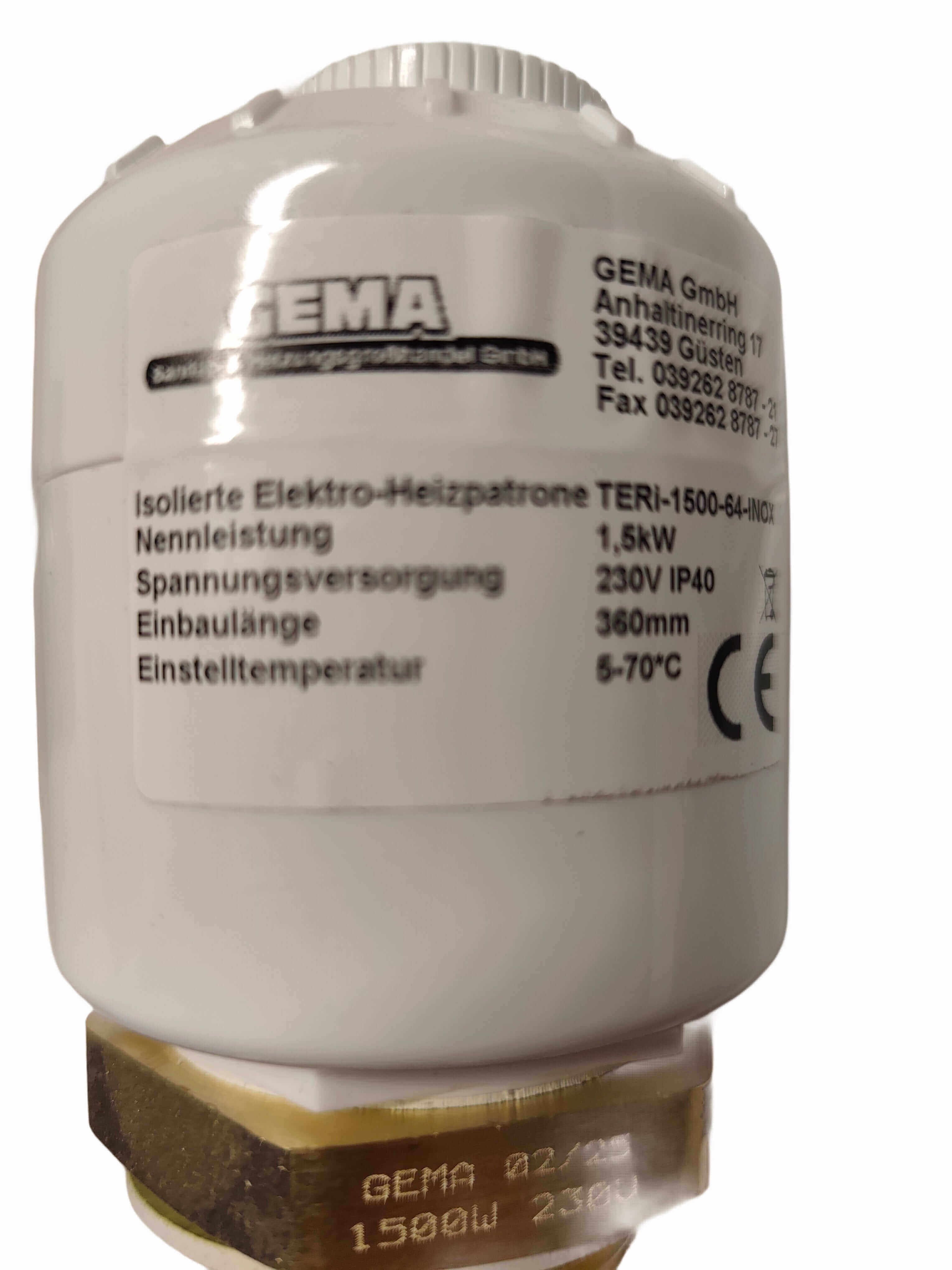

Technical details of the screw-in heater

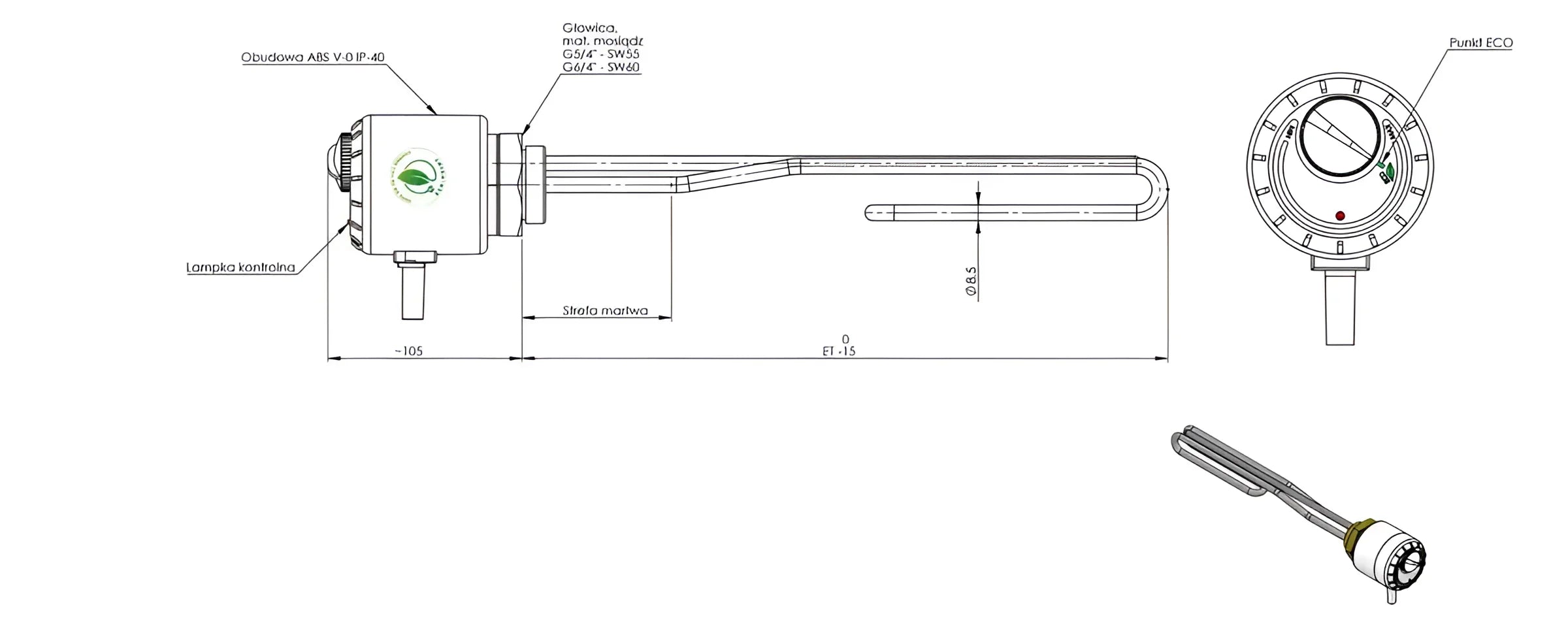

With an output of 1500 W or 2000 W and an immersion area of 360 mm, the heater offers excellent heating performance. Its precise design, with an 80 mm unheated zone and a standardized 6/4" threaded connection, enables seamless integration into various systems.

The integrated 1500 mm long power cable including plug simplifies commissioning and ensures safe operation, while compliance with European safety standards meets the highest quality standards.

Conclusion

The 100-liter hot water tank with TERi 1.5 kW heating element combines modern technology with high efficiency and durability. The sophisticated heat exchanger technology combined with powerful corrosion protection and the flexibility to connect to various heating systems make this product an ideal choice for demanding applications.

Complemented by the versatile screw-in heater, which heats liquids quickly and safely, both components together offer an innovative and sustainable solution for hot water and heating systems.

Technical data

Technical data hot water tank

• Volume: 100 liters
• Heat exchanger surface: 1.2 m²
• Heat exchanger capacity: 5.27 liters
• Connection flow and return heating: 3/4" AG
• Connection flow and return domestic water: 3/4" AG
• Circulation connection: 3/4" AG
• Magnesium anode connection: 1 1/4" IG
• Connection for electric heating: 1 1/2" IG
• Thermal insulation: polyurethane foam (PUR)
• Max. operating temperature storage 95 °C
• Max. operating pressure storage tank/heat exchanger: 6 bar
• Max. operating temperature heat exchanger 100 °C
• Loss: 28 watts
• Dimensions with insulation (diameter x height): 625 x 770 mm
• Weight (empty): 64 kg

Technical data heating element

• Connection: 1 1/2"
• Power supply: 230V
• max. operating pressure: 10 bar
• unheated length: 80 mm
• Installation length: 305 mm
• Safety temperature limiter: 93 °C

This package contains

• 100 liter hot water tank with 1 heat exchanger including insulation
• safety valve
• Operating and maintenance instructions for storage
• 1 x enamelled heating element 1.5 kW
• Installation instructions for heating element

Download

• Operating instructions for drinking water storage tank
