Sunex | SKU:
SRK30
Vacuum tube collectors 110.0 kg
Manufacturer Information
Normal price
925,13 €
Basic price
/
Unavailable
vAT included.
Shipment will be charged at checkout.
Vacuum tube collectors - HP30 is backordered and will ship as soon as it is back in stock.
Lieferung und Versand
Lieferung und Versand
Die Bearbeitungszeit beträgt in der Regel 1 Werktag. Die Lieferzeit für Paketware ist 1-3 Werktage. Für Speditionsware ist die Lieferzeit 3-5 Werktage. Die Leiferzeiten außerhalb Deutschlands sind abweichend.
Vacuum tube collectors
Normal price
From
679,33 €
Basic price
/
Unavailable
Description
Description

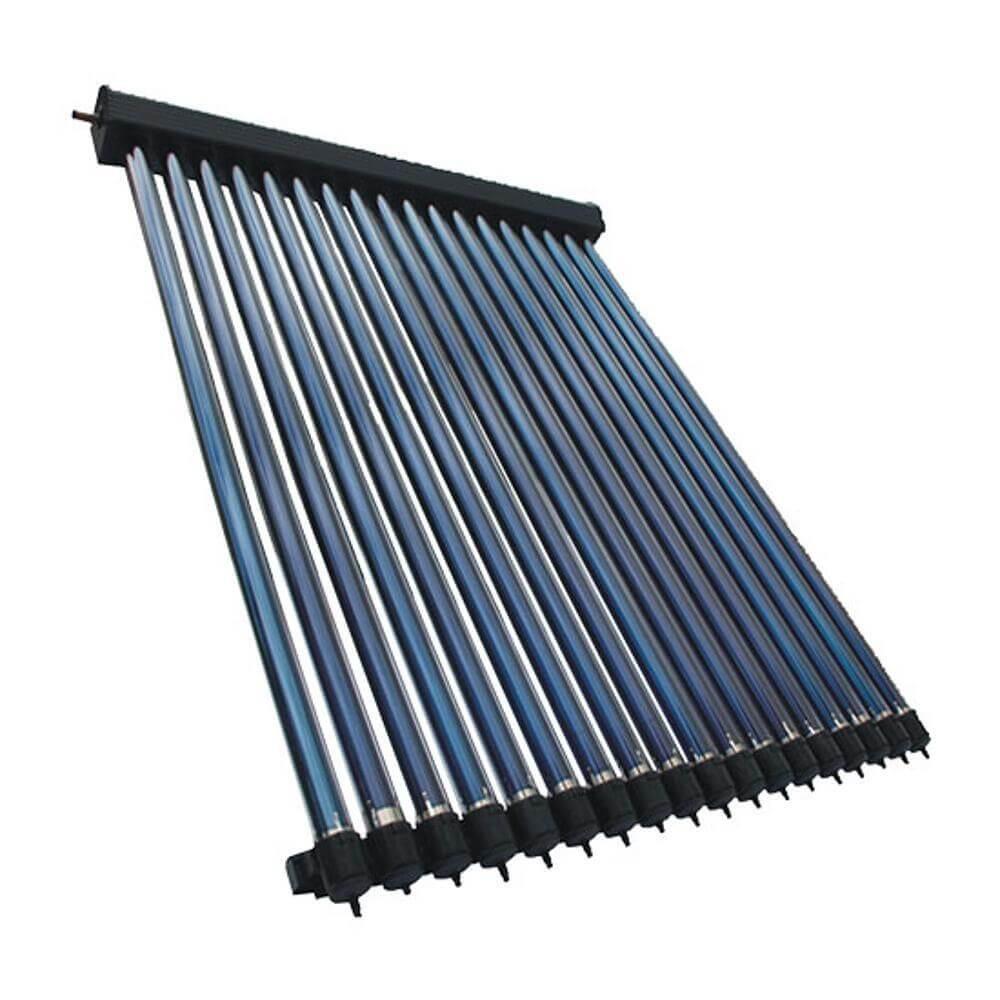

Sunex vacuum tube collectors
The tube collector type HP 22/30 from the manufacturer Sunex is produced in the so-called HEAT PIPE technology and consists of borosilicate silicon glass
The glass is only 2 mm thick and has a low iron oxide content. This manufacturing process ensures high operational reliability for the heating system. This is also reflected in the mineral wool and the black aluminum casing of the manifold, which offer maximum protection against weather conditions. The copper pipe system ensures maximum energy generation, and the construction ensures maximum service life. Thanks to heat pipe technology, glass tubes can be easily replaced without draining the system.
Tube collector HP 22
- Connection of a mirror is possible, which increases efficiency on cloudy days
- Quick and easy installation
- Heat pipe technology
- Made of borosilicate silicon glass
- Volume: 1.26 liters
Tube collector HP 30
- Optional connection of a mirror for higher efficiency on cloudy days
- Heat pipe technology allows easy replacement of glass tubes
- Aluminum housing for maximum protection against weather conditions
- Made of borosilicate silicon glass
- Volume: 1.85 liters
Technical data: Sunex vacuum tube collectors
| HP22 | HP30 | |
|---|---|---|
| Number of vacuum tubes | 22 | 30 |
| Vacuum tube diameter | 58 mm | 58 mm |
| Wall thickness | 2 mm | 2 mm |
| Total area | 3.61 m2 | 4.89 m2 |
| Aperture area | 2.70 m2 | 3.68 m2 |
| H x W x D | 199/192/18.2 cm | 199/245.5/18.2 cm |
| Connecting pipe diameter | 22 mm | 22 mm |
| Optical efficiency absorber/aperture | 93.7/58.2% | 93.7/58.2% |
| Losses per 1 absorber/aperture | 2.69/1.67 kW/m2xK | 2.69/1.67 W/m2xK |
| Losses a 2 absorbers/aperture | 0.01/0.006 W/m2xK2 | 0.01/0.006 W/m2xK2 |
| Absorption factor | &>0.94 | &>0.94 |
| Emission factor | &<0.8 | &<0.8 |
| Weight | 82 kg | 105.4 kg |
| Permissible collector inclination | 15 - 50° | 15 - 50 ° |
| Collector height | 0.18 mm | 0.18 mm |
| Collector weight | 82 kg | 105.4 kg |
| supporting structure | aluminum/stainless steel | aluminum/stainless steel |
| Absorber material | copper | copper |
| Absorber thickness | 1.5 mm | 1.5 mm |
| Selective layer | Highly selective | Highly selective |
| Heat transfer medium | Liquid for vacuum collectors | Liquid for vacuum collectors |
| Number of connections | 2 | 2 |
| connecting pieces | Ø22 | Ø22 |
| insulating material | mineral wool | mineral wool |
| Housing/insulation thickness | 35 mm | 35 mm |
| Max operating pressure | 6 bar | 6 bar |
| Single-row connection | up to 4 collectors | up to 4 collectors |
| Suitable for: | roof, terrace, foundation, wall | roof, terrace, foundation, wall |
| Compliance with the standard: | EN 12975 | EN 12975 |
