Hot water tank 100 L with Incoloy 825 heating element 2 kW – drinking water storage 🔥
SKU: ETWS100+SEHP2
Delivery time Germany
Package 1 - 3 days
Shipping 3 - 5 days
Delivery time Europe
Package 3 - 5 days
Shipping 5 - 7 days
Guaranteed safe checkout
Hot water tank 100 L with Incoloy 825 heating element 2 kW – drinking water storage 🔥
Drinking water storage tank 100 L with Incoloy 825 heating element 2 kW
Product overview
The 100-liter hot water tank offers a modern solution for centralized and reliable hot water heating, ideal for daily use as well as for use as a buffer tank. The system impresses with its versatility, whether combined with solar thermal systems, boilers, or even photovoltaic systems.
Thanks to the integrated technology, you enjoy a high level of hot water comfort, reliably covering your needs from 100 to 180 liters. The combination of innovative technology and high-quality workmanship guarantees an efficient and long-lasting solution.
Efficient hot water technology
Inside the storage tank, a highly efficient heat exchanger ensures optimal transfer of thermal energy from various heat sources, such as solar panels or boilers. This ensures that the domestic water is heated gently and thoroughly.
The circulation connection allows the heat to be distributed quickly and evenly throughout your system, further increasing comfort in daily use.
Durability and corrosion protection
The drinking water storage tank features special internal corrosion protection through a high-quality enamel coating, ensuring long-lasting durability. Additionally, a large magnesium anode has been integrated, which acts as a sacrificial anode and provides further protection against corrosion.
These dual protection mechanisms ensure that the longevity of the storage is maintained even under regular use and demanding operating conditions.
Technical data hot water tank
With a volume of 100 liters and an effective heat exchanger with a surface area of 1.2 m², the storage tank offers sufficient capacity for a variety of applications. The precisely designed thermal insulation using polyurethane foam (PUR) ensures minimal heat loss.
The flow, return, and circulation connections are standardized, allowing for easy integration into existing heating systems. Furthermore, the storage tank is designed for operating temperatures up to 95°C and pressures up to 6 bar.

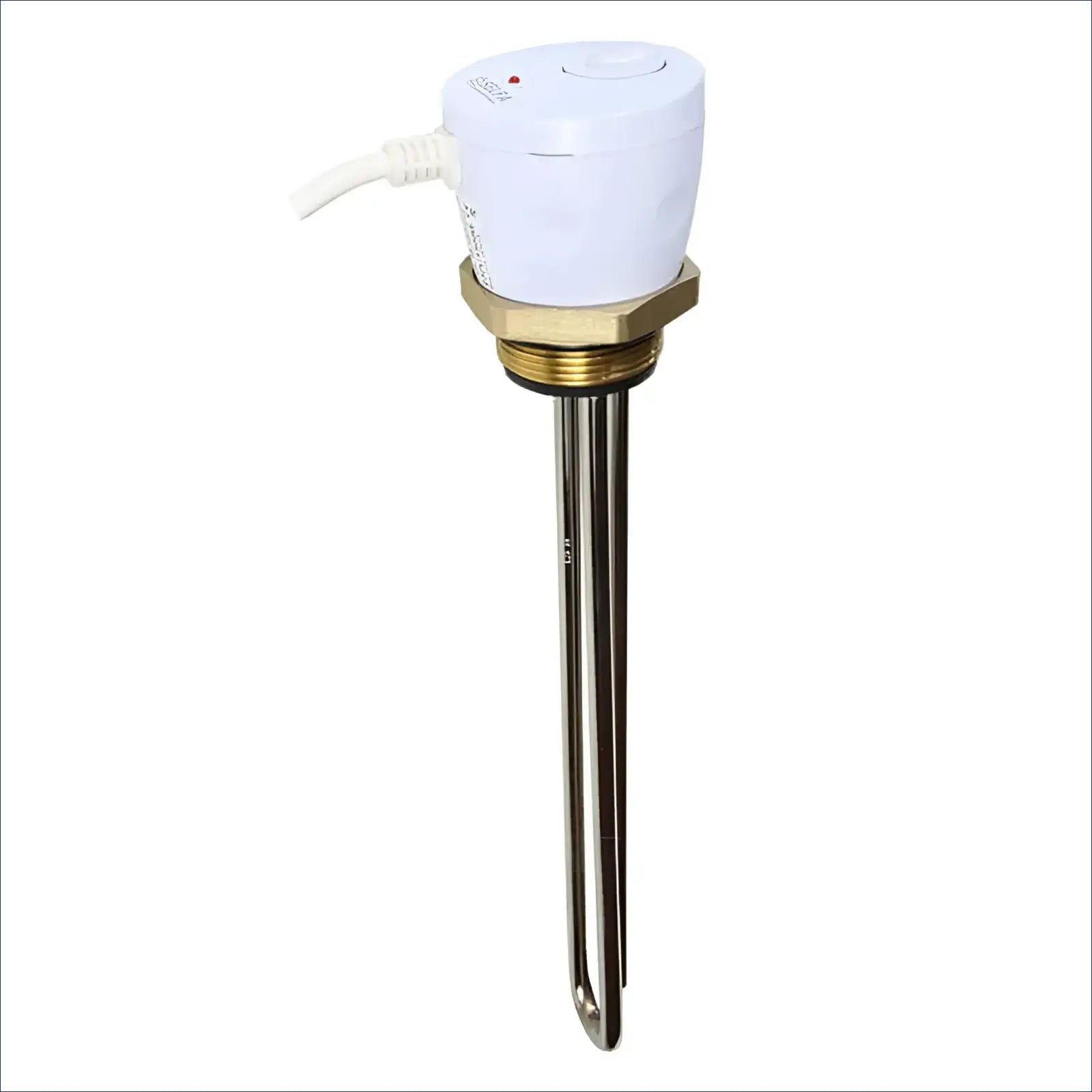

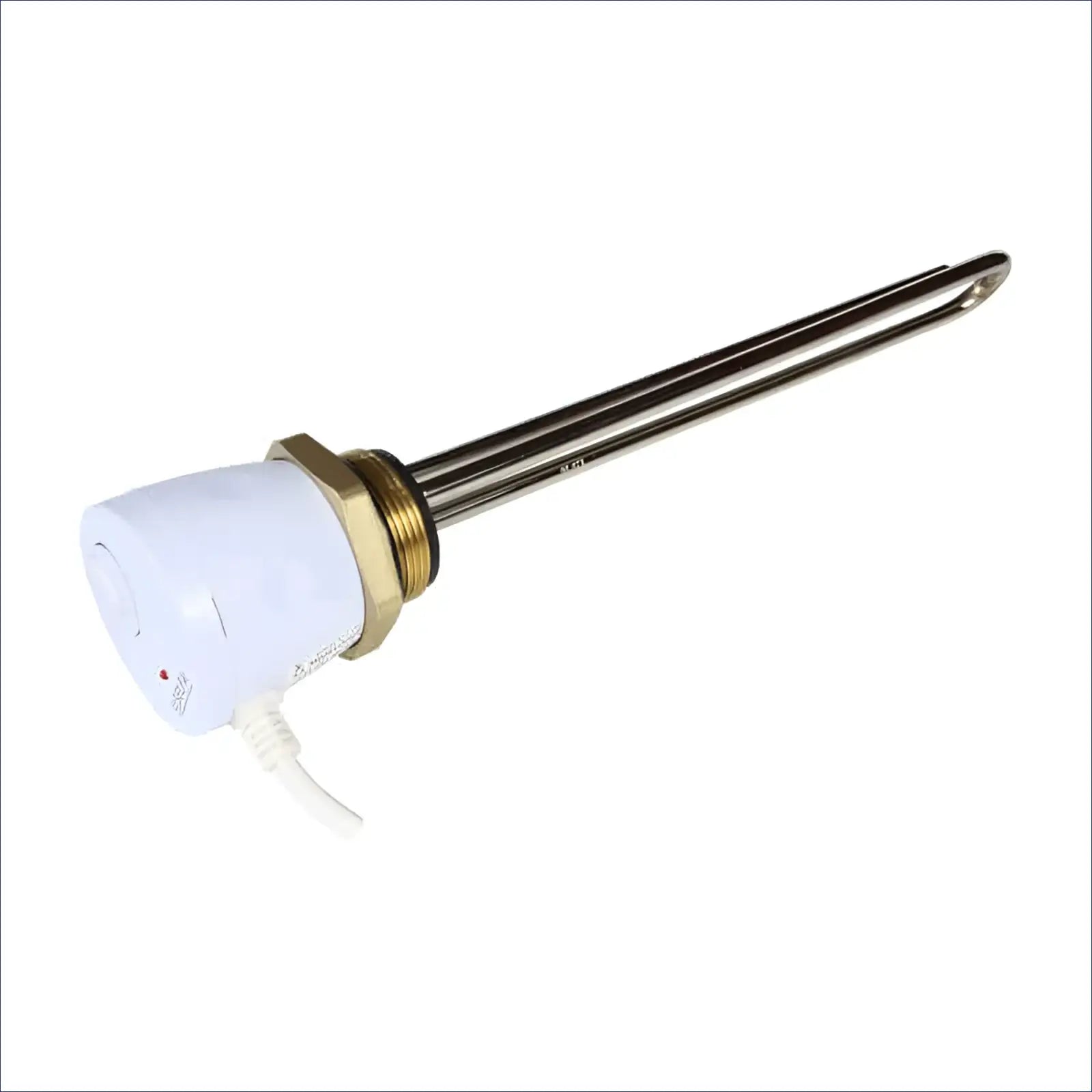

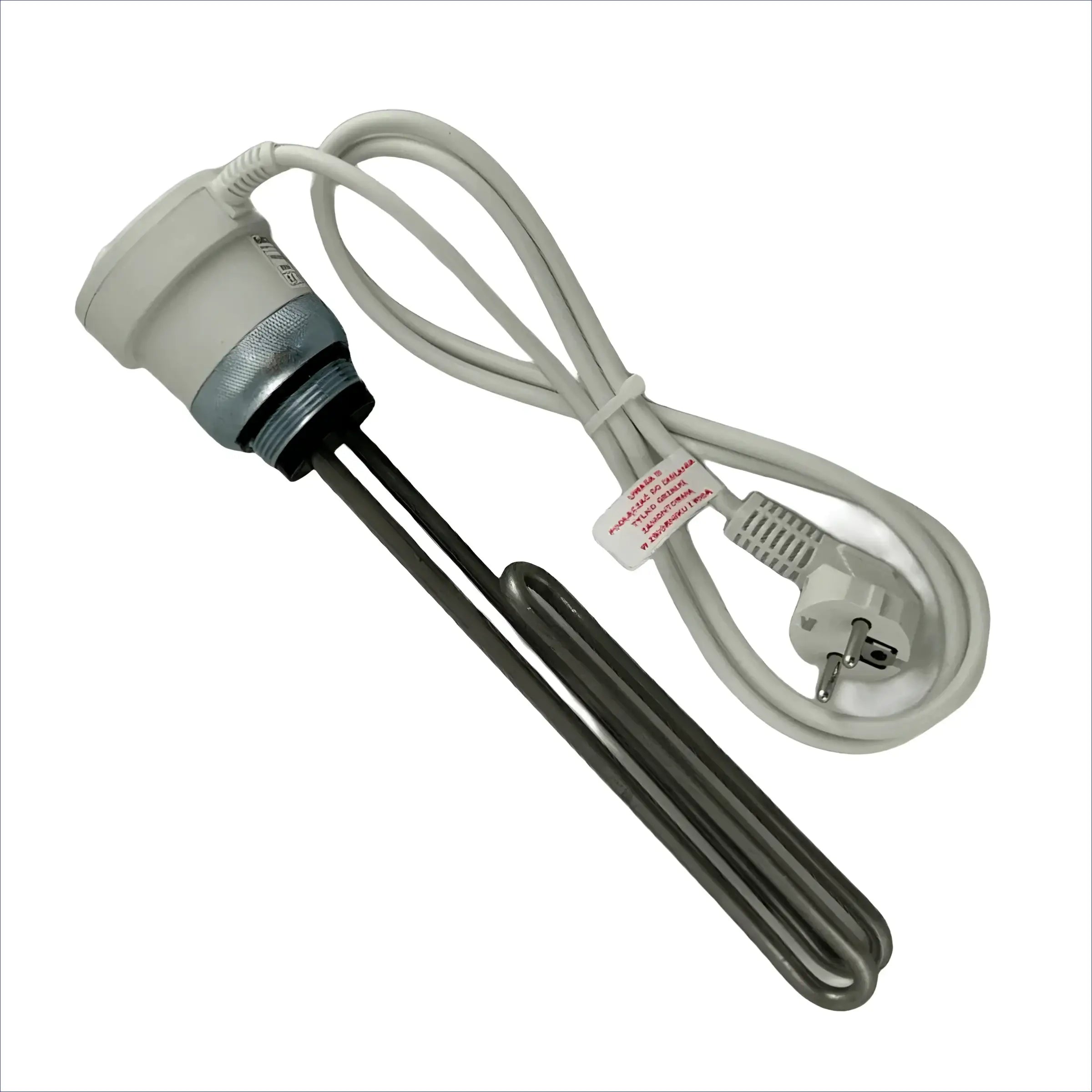

High-quality electric heating element
The included electric heating element, available in 2 kW and 3 kW versions, impresses with its INCOLOY 825 construction. This special alloy, consisting of a combination of nickel, iron, chromium, and other high-quality additives, guarantees high resistance to water corrosion.
The heating element is ideally designed for supplementing domestic hot water tanks and buffer storage tanks. Its plug-in design for a 230V connection allows for easy commissioning without complex installation.
Flexible temperature regulation
With an adjustable temperature range of approximately 30°C to 75°C and a reliable overtemperature protection that triggers at approximately 85°C, the heating element operates safely and efficiently. This flexibility allows the system to be individually adapted to specific hot water requirements.
An integrated controller and a precise thermostat ensure continuous and user-friendly control, so you always achieve the optimal temperature.
Safety and application
The sophisticated design of the heating element protects against overheating and ensures safe operation thanks to modern safety technologies. This is especially important when the heating element is used as a supplement to existing storage solutions.
In combination with the corrosion-protected hot water tank, the system offers a reliable and low-maintenance solution for modern households and smaller businesses that rely on efficient heat supply.
Conclusion
The 100-liter hot water tank with its integrated high-efficiency heat exchanger and robust electric heating element made of INCOLOY 825 is a sophisticated product that meets the highest standards. The combination of technological innovation, easy integration into existing systems, and comprehensive corrosion protection makes it a future-proof investment.
This system offers not only reliable performance but also optimal comfort and safety – perfect for demanding users who value efficiency and durability.
Technical data
Technical data hot water tank
- Volume: 100 liters
- Heat exchanger surface: 1.2 m²
- Heat exchanger capacity: 5.27 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 28 watts
- Dimensions with insulation (diameter x height): 625 x 770 mm
- Weight (empty): 64 kg

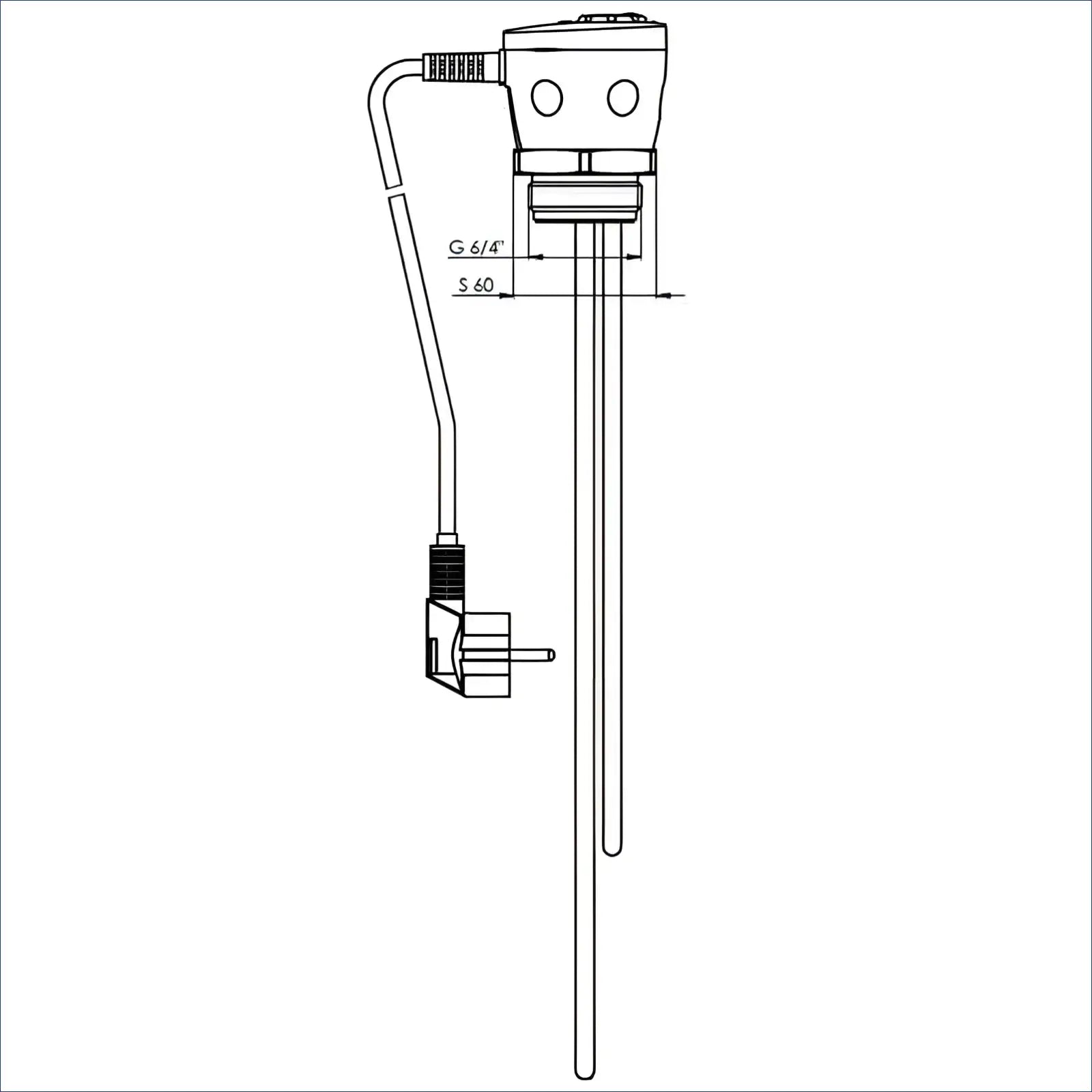

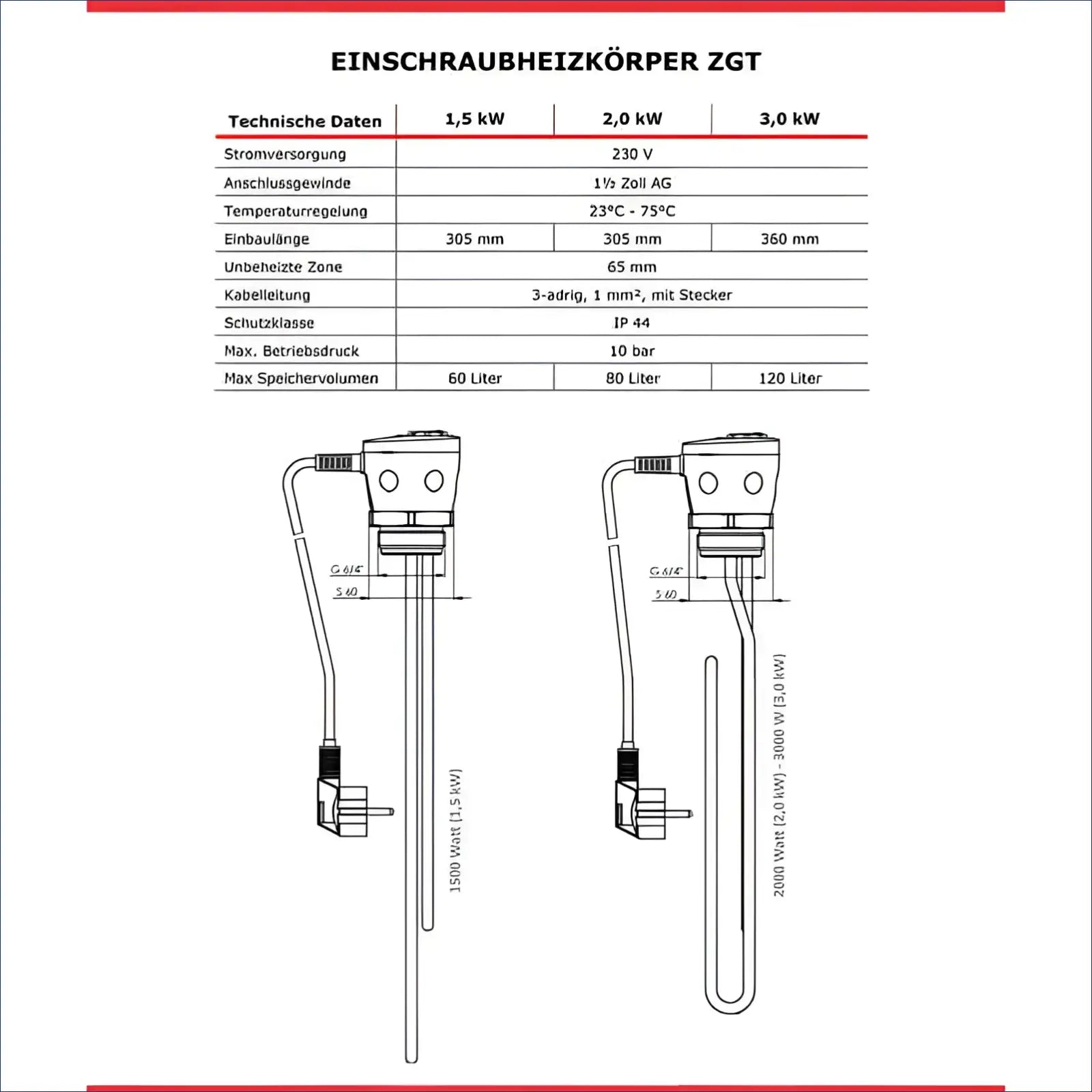

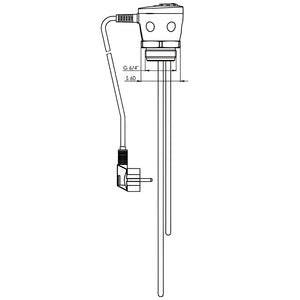

Technical data heating element
- Connection: 1 1/2"
- Power supply: 230V
- max. operating pressure: 10 bar
- unheated length: 65 mm
- Installation length: 305 mm
- Safety temperature limiter: 93 °C
Scope of delivery:
- 100 liter hot water tank with 1 heat exchanger including insulation
- safety valve
- Operating and maintenance instructions for storage
- 2 kW heating cartridge
- Operating instructions for heating cartridge
