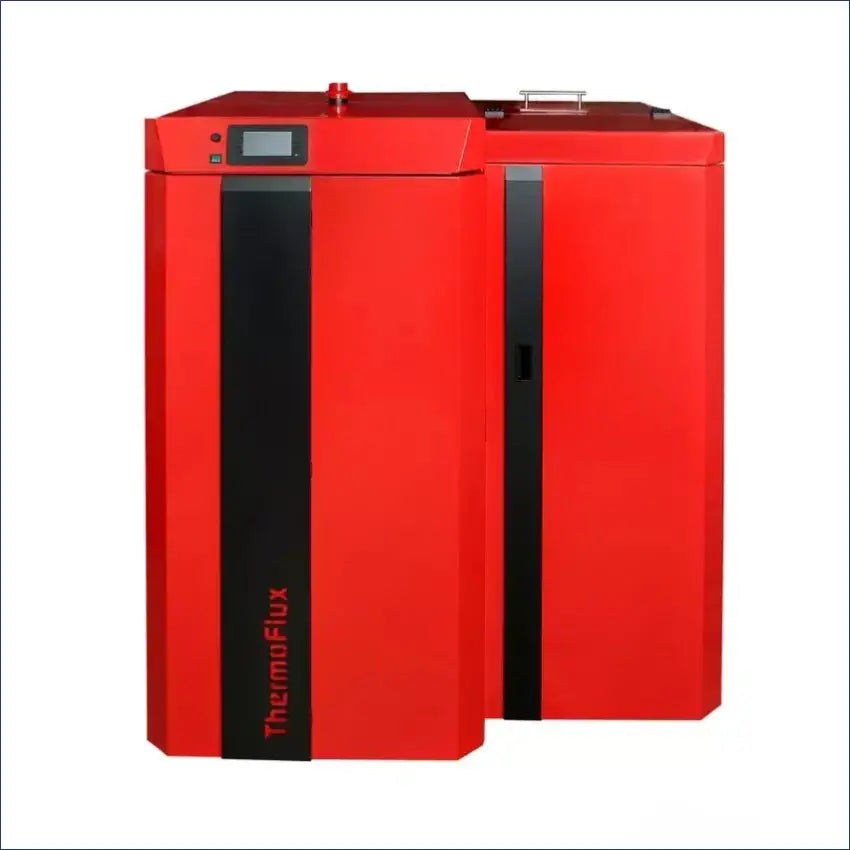

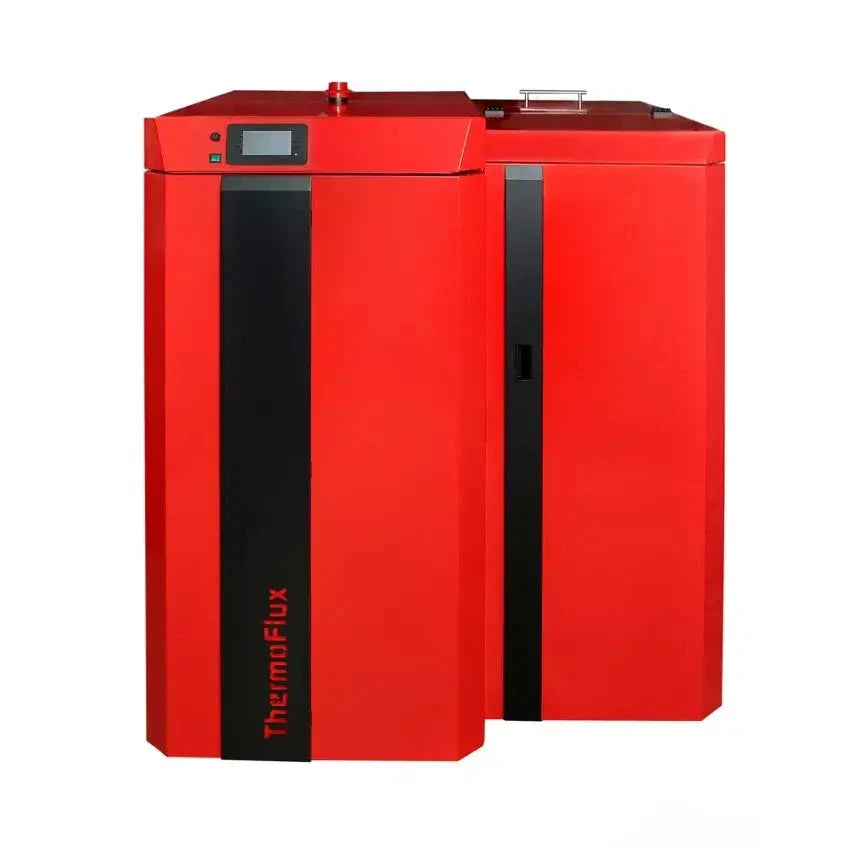

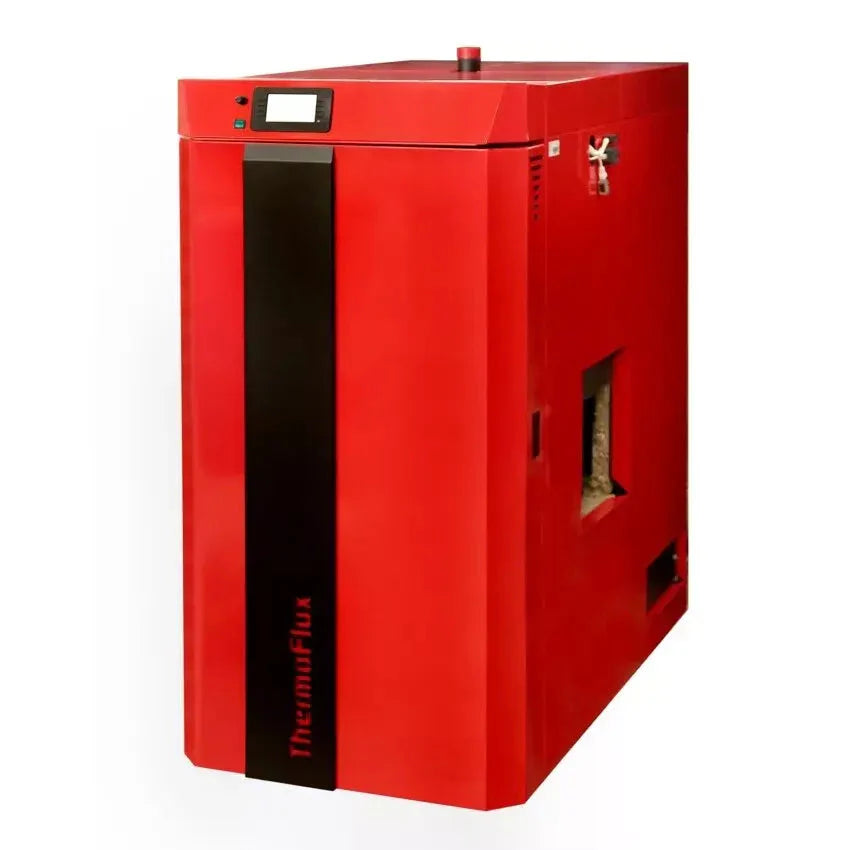

Thermoflux PID combi chamar with a large combustion chamber and perfect combination
PID Logic Kombi – The perfect combination of wood and pellet heating
The PID Logic Combi is a modern combi boiler that combines the advantages of log and pellet heating systems. With selectable nominal heat outputs of 25, 35, or 45 kW, this boiler offers an energy-efficient and environmentally friendly heating solution for small to medium-sized buildings. Thanks to innovative technologies such as touch control, a precise lambda probe, and an impressive efficiency of over 93%, the PID Logic Combi meets the highest demands.
Efficient wood gasification: Sustainable and powerful

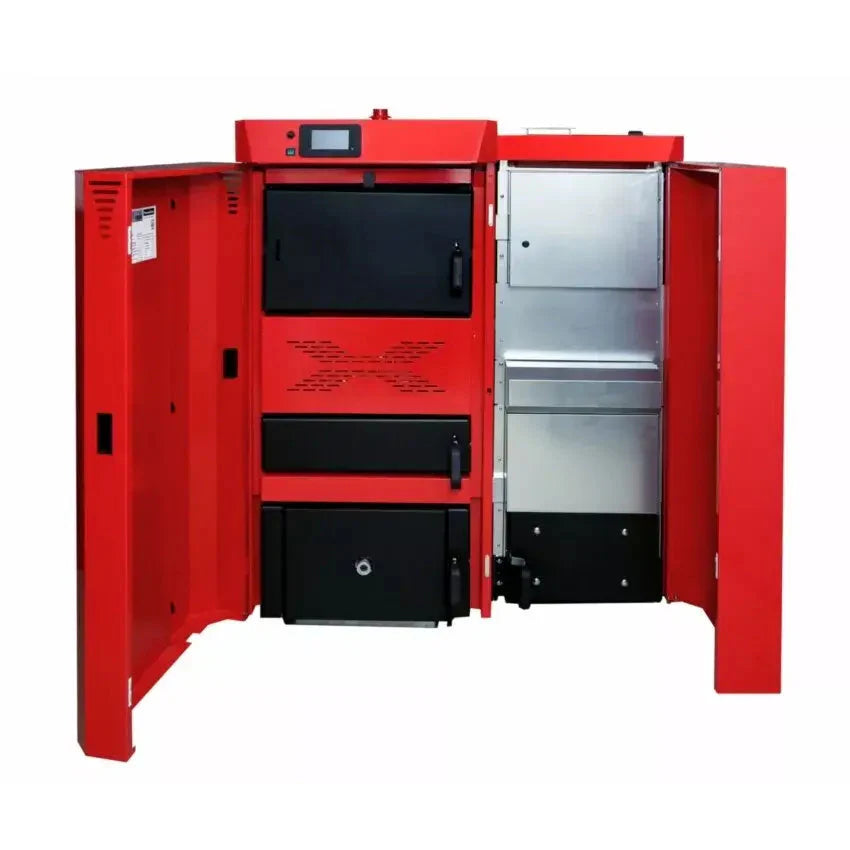

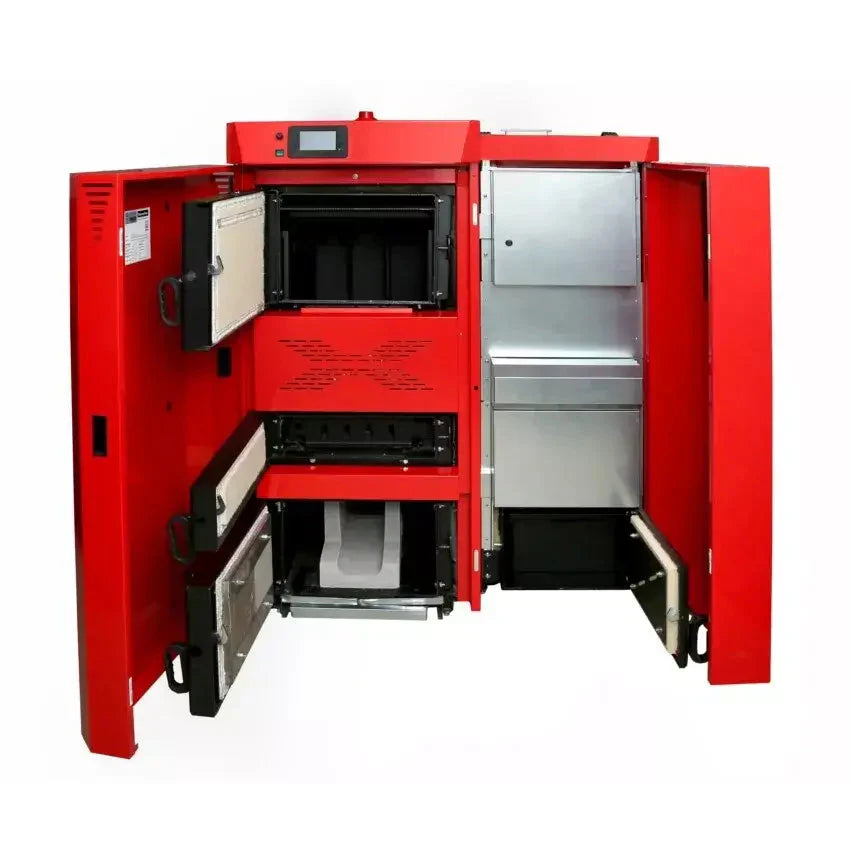

The principle of wood gasification ensures almost complete and clean combustion of the fuel. The boiler's spacious combustion chamber, located on the left side, allows for the insertion of logs up to 500 mm long. A single wood load can provide up to four hours of combustion at full power. At lower loads, operation throughout the day is even possible.
The two-stage wood gasification process protects the environment by reducing emissions and maximizes the use of the energy stored in the fuel. For optimal results, the firewood used should have a residual moisture content of no more than 20%.
Advanced pellet combustion

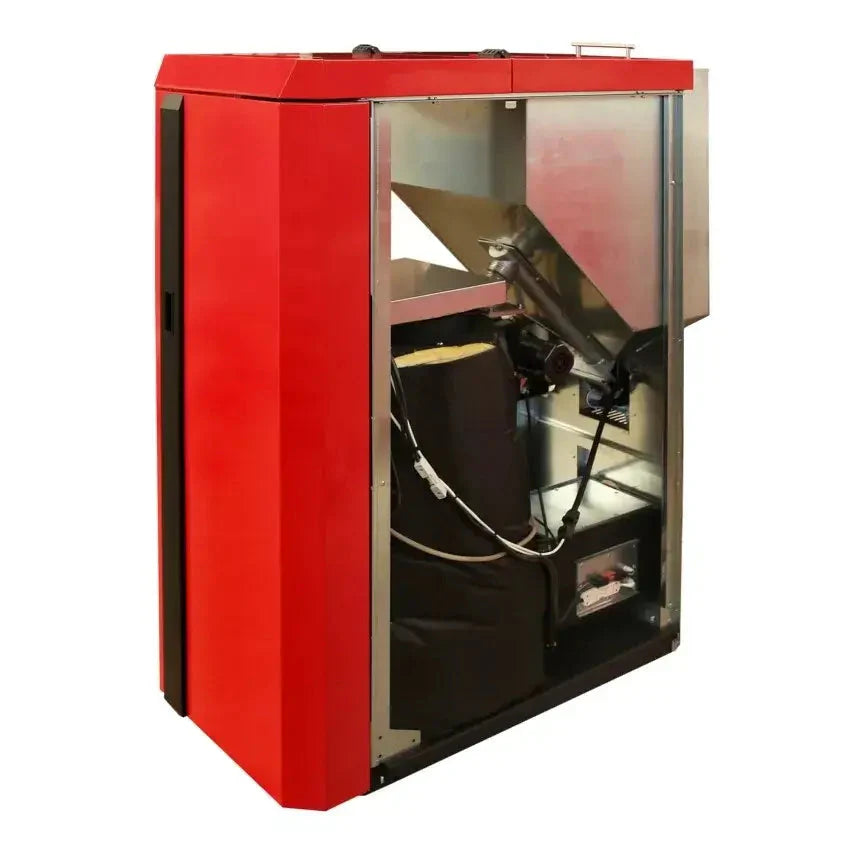

A separate boiler compartment on the right side is provided for pellet combustion. An integrated storage hopper provides sufficient space for 80 liters of pellets in the 25 kW version or 148 liters in the larger 35 or 45 kW models. Alternatively, the boiler can be connected to an external pellet storage system via a suction or conveyor system for further convenience.
Wood pellets are an environmentally friendly fuel made from renewable raw materials such as wood chips. With quality guarantees such as DINplus or ENplus A1, the pellets ensure a clean and reliable heat supply.
Automatic switching between wood and pellets
The PID Logic Combi supports automatic switching between fuel types. Once the logs are completely burned, the pellet burner automatically takes over. This ensures a constant heat supply at all times – without any manual intervention. This exceptional convenience makes the boiler ideal for users who prioritize both flexibility and efficiency.
Intuitive control and easy handling
The PID Logic Combi is easy to operate with its color touchscreen. The integrated lambda sensor continuously measures the oxygen content in the exhaust gases and optimizes the air supply for optimal combustion. This technology effectively supports both wood and pellet fuels.
Other practical features such as a flue gas temperature sensor, automatic grate cleaning, and a large log loading door make daily use of the boiler particularly convenient. Maintenance effort is kept to a minimum thanks to easily accessible cleaning elements.
Security at the highest level
The PID Logic Combi features numerous safety features to ensure smooth operation. A safety temperature limiter (STB) shuts off the boiler in the event of overheating, while an integrated safety heat exchanger ensures rapid system cooling. Additionally, a thermal discharge safety device provides maximum operational reliability.
Even in the event of a power failure, key safety elements remain functional. This reliability makes the PID Logic Kombi a safe choice for any application.
Economic efficiency and environmental friendliness
With an efficiency of over 93%, the PID Logic Combi is one of the most efficient heating systems in its class. The pyrolytic combustion process reduces fuel consumption by up to 85% compared to conventional wood-fired boilers. This not only saves users money but also conserves resources.
The extremely low emissions meet the most stringent environmental standards, including boiler class 5 according to EN 303-5:2012 and BImSchV stage 2. The PID Logic Kombi is the ideal solution for anyone looking for a sustainable heating alternative.
Expansion options for maximum flexibility
Numerous expansion modules can be easily integrated and increase the boiler's functionality. These include control modules for multiple heating circuits, a GSM alarm module, and various storage container systems. Particularly practical: Mole suction systems or screw conveyors can be used for pellet supply to meet individual needs.
Technical specifications
The PID Logic Combi is available in three power levels: 25, 35, and 45 kW. It features standardized connections for flow, return, and drainage, and is equipped with an exhaust outlet with a diameter that varies between 150 mm and 180 mm depending on the model. All components are TÜV and CE certified to ensure the highest quality standards.
The advantages of the PID Logic Kombi at a glance
- Modern combination of wood and pellet heating
- Maximum heating comfort thanks to automatic fuel change
- Lambda sensor control for optimal combustion
- High efficiency with an efficiency of over 93%
- Generous combustion chamber for logs up to 500 mm long
- Low emissions and minimal fuel consumption
- Certified according to EN 303-5:2012 and BImSchV Stage 2
- Comprehensive safety precautions for worry-free operation
- Expandable with additional functions and modules
With the PID Logic Combi, you're investing in a future-proof heating system that combines environmental awareness, efficiency, and ease of use. Benefit from the advantages of a modern wood and pellet heating system and enjoy cozy warmth anytime.
Technical data
- Energy efficiency class A+
- Boiler class 5
- Nominal heat output 25 kW
- Performance range
- Wood: 17.5-35 kW
- Pellets: 10.2-35 kW
- Wood: 17.5-35 kW
- Efficiency 90.5%
- Tensile requirement 10 Pa
- CO content
- Nominal load: 62 mg/m³
- Partial load: 72 mg/m³
- Dust emission 13 mg/m³
- Maximum firewood length
- Wood (450-550) x 70 x 50
- Pellet diameter = 6 mm
- Wood (450-550) x 70 x 50
- Exhaust gas mass flow
- Nominal power: Wood 0.022 kg/s Pellet 0.030 kg/s
- Minimum output: wood 0.012 kg/s pellet 0.008 kg/s
- Nominal power: Wood 0.022 kg/s Pellet 0.030 kg/s
- Height 1350 mm
- Width 1025 mm
- Depth 1385 mm
- Flue pipe connection Ø 160 mm
- Weight 875.0 kg
Scope of delivery
- Thermoflux PID combination boiler 35 kW
- Assembly and operating instructions
