Sunex FISH Carbon S4 drinking water storage tank

Sunex FISH Carbon S4 drinking water storage tank – 200 liters

Advantages at a glance

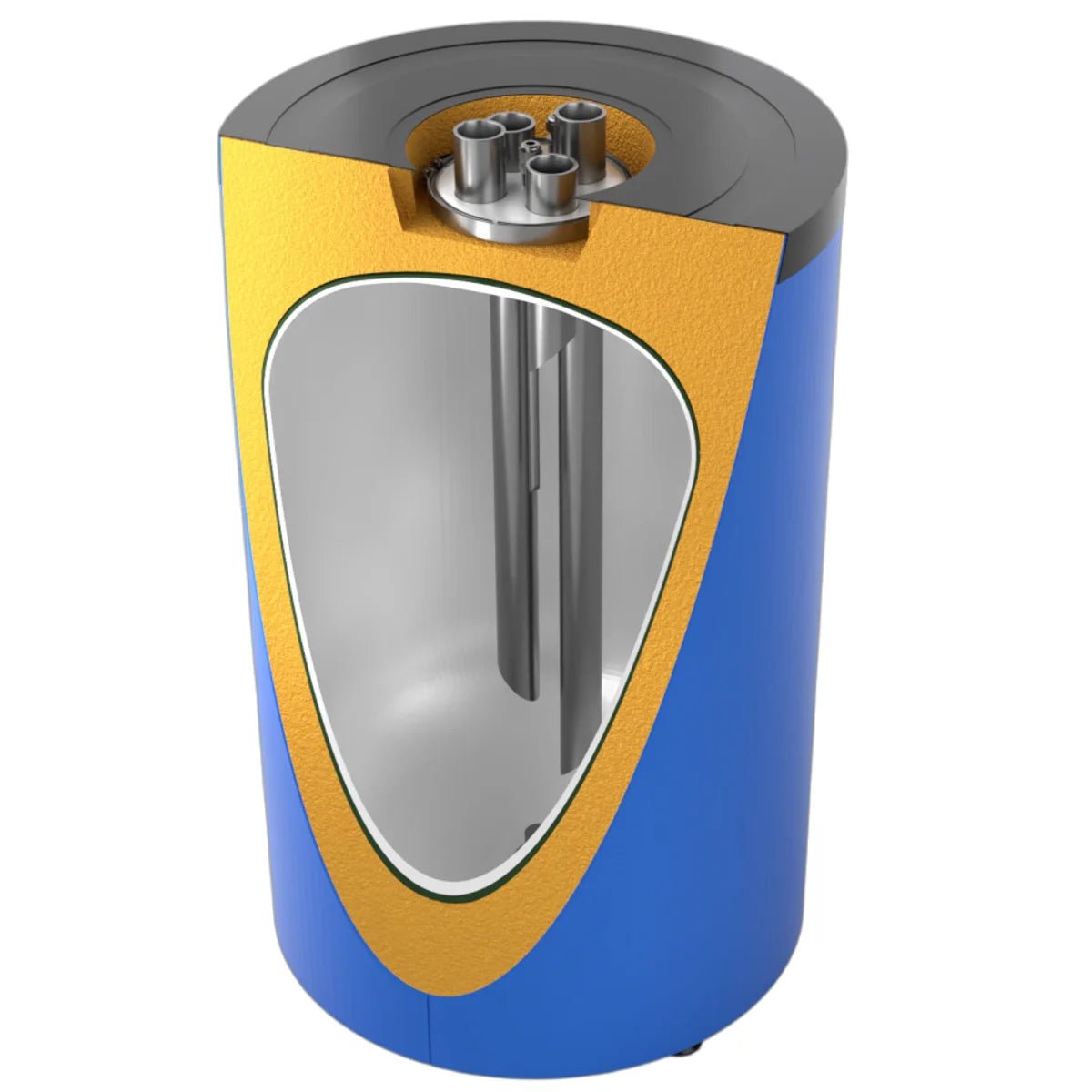

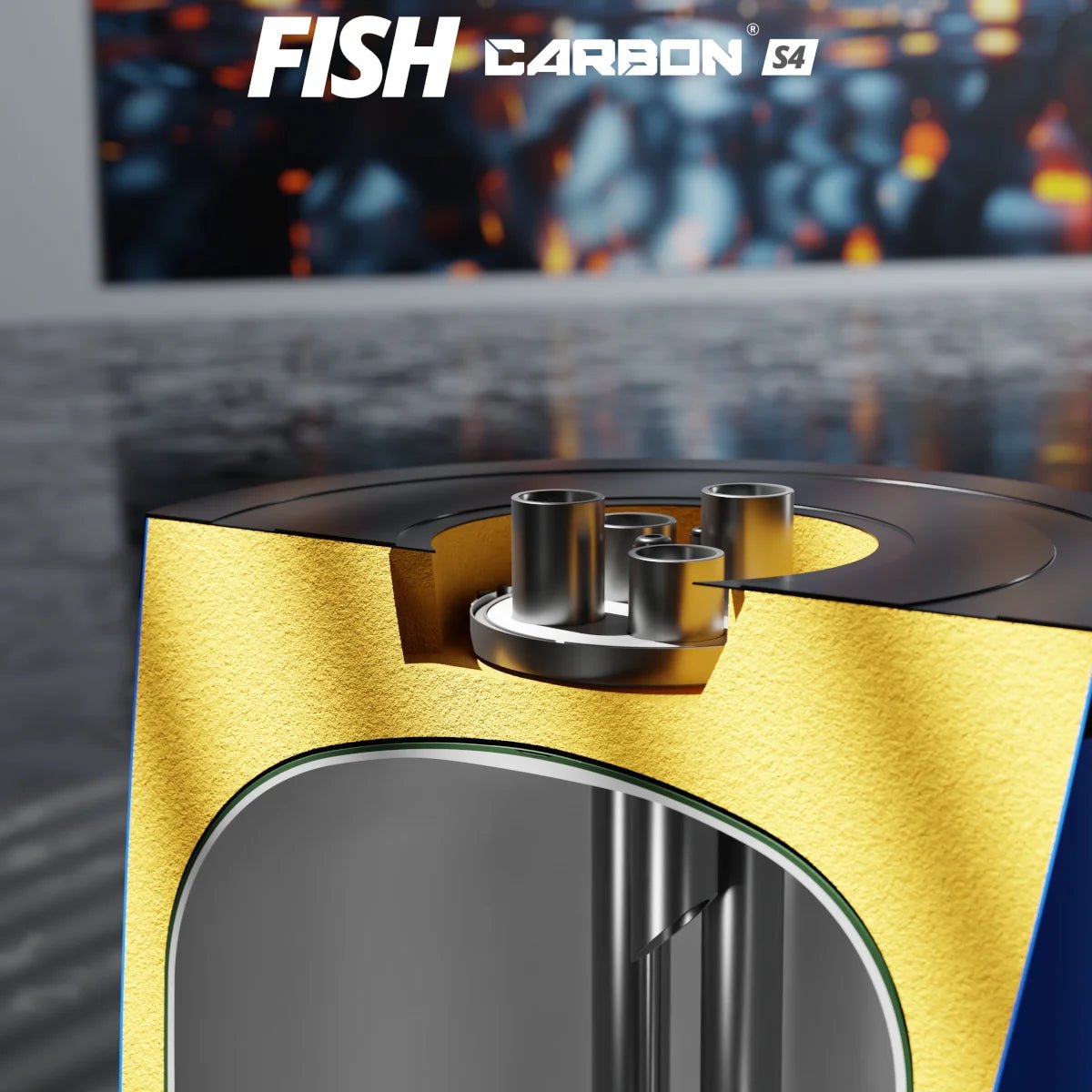

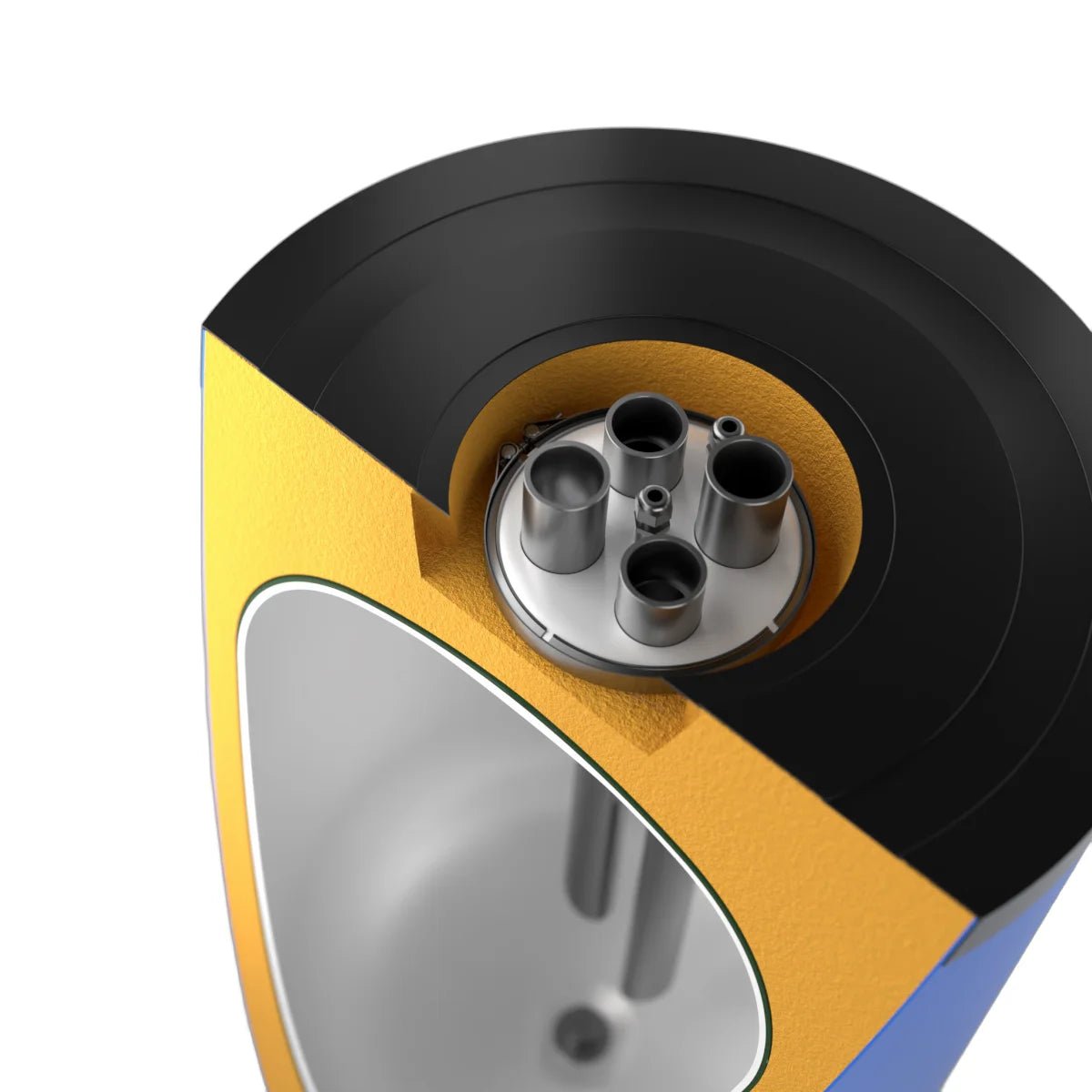

With its 200-liter volume and a weight of only 33 kg, the Sunex FISH Carbon S4 offers an unbeatable capacity-to-handling ratio. The central arrangement of all connections on the top allows for flexible connection to a wide variety of heating systems without wasting space.

Thanks to the 30 mm thick rigid polyurethane foam insulation, heat loss is reduced to a minimum and the system's energy efficiency is significantly increased. The corrosion-resistant construction made of HDPE and glass fiber reinforced composite prevents rust formation and ensures a long service life.

Technology

Storage capacity: 200 liters, Material: HDPE + fiberglass composite, Max. operating pressure: 6 bar, Test pressure: 9 bar, Max. operating temperature: 75 °C, Energy efficiency class: B, Insulation: 30 mm rigid PU foam, Heat loss (standby): 58 W, Outer casing: Blue, Weight: 33 kg.

material & construction

The core of the drinking water storage tank is made of high-density polyethylene (HDPE), reinforced externally with a fiberglass composite. This combination offers excellent corrosion protection and maximum resistance to pressure and chemical influences.

Compared to conventional steel tanks, there is no risk of rust or internal deposits. This ensures consistently high water quality and significantly reduces maintenance requirements.

Energy optimization

The thick rigid polyurethane foam insulation ensures that, thanks to its excellent insulating properties, standby losses are only 58 W. This gives the storage tank an energy efficiency rating of B and contributes to sustainable and cost-effective hot water preparation.

Due to its low heat loss, the Sunex FISH Carbon S4 is particularly impressive in systems with intermittent use, as stored heat is retained for longer periods.

Easy integration

The compact design and blue painted outer casing guarantee quick identification and effortless placement in your heating or domestic hot water system. The top-mounted connections allow for straightforward installation and ensure short installation times.

Technical data

• Storage capacity: 200 liters
• Material: HDPE + fiberglass composite
• Maximum operating pressure: 6 bar
• Test pressure: 9 bar
• Maximum operating temperature: 75°C
• Energy efficiency class: B
• Insulation: 30 mm rigid polyurethane foam
• Heat loss (standstill): 58 W
• Outer shell: Blue
• Weight: 33 kg


Scope of delivery

• Sunex Fish S4 Carbon 200 liters
• Assembly & User manual

Download

• brochure
