Solar package flat collectors AMX2.38 14.34 m² for pitched roofs

Solar package AMX 2.38 – Efficient energy generation for pitched roofs

The AMX 2.38 solar panel enables environmentally friendly energy production on pitched roofs and impresses with a surface area of ​​14.34 m² and high energy efficiency. Its robust and flexible design adapts perfectly to roof pitches between 25 and 60 degrees. This ensures a reliable energy source that delivers consistent performance even under changing weather conditions.

Take advantage of government subsidies.

The purchase of the AMX 2.38 solar package is supported by government funding programs, such as the Federal Funding for Efficient Buildings – Individual Measures (BEG EM). With subsidies of up to 30% of the investment costs, installation becomes particularly cost-effective. In combination with other renovation measures, subsidies can increase to up to 70% and shorten the amortization period.

To make it easier for you to access such funding, we provide instructions and guides. This way, you can be sure that you receive the maximum possible grant and that your investment becomes even more lucrative.

High-quality AMX 2.38 flat plate collectors

The flat-plate collectors included in the solar package guarantee excellent energy yield thanks to an integrated copper tube absorber. Even on cloudy days, solar energy is transferred effectively. Combined with a heat storage tank, the heat produced is available to you at any time.

A differential temperature controller optimizes the interaction of the components. This maximizes the efficiency of the entire system, enabling precise energy use.

Modern design and durable materials

In addition to its technical performance, the AMX 2.38 solar package impresses with its modern design. The aluminum frame is manufactured from a single piece, resulting in exceptional stability and durability. The navy blue and black colors are understated and blend harmoniously into various architectural styles.

Thanks to high-quality insulation materials, heat loss remains low even in cold or adverse weather. This allows you to benefit from consistent energy production all year round.

Easy assembly, also suitable for renovation projects

The AMX 2.38 solar package is easy and convenient to install. A mounting kit specifically designed for pitched roofs simplifies the process. The aluminum components ensure high stability and a long system lifespan.

Detailed installation instructions guide installers through the entire process. This makes the solar package ideal for renovations or retrofit solutions.

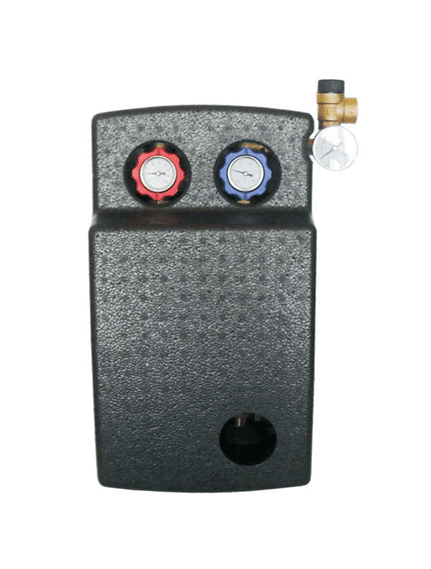

Precise control with the GPS PWM Hydra solar station

The GPS PWM Hydra solar station acts as the central element of the energy management system. It regulates the pump speed using modern PWM technology and distributes the generated heat evenly throughout the system. Additional safety features such as a pressure gauge, a safety valve, and a venting device ensure user-friendliness and easy maintenance.

The GPS PWM Hydra is particularly robust and designed for operating temperatures up to 110 °C and a working pressure of up to 6 bar. This makes it perfectly suited for continuous use.

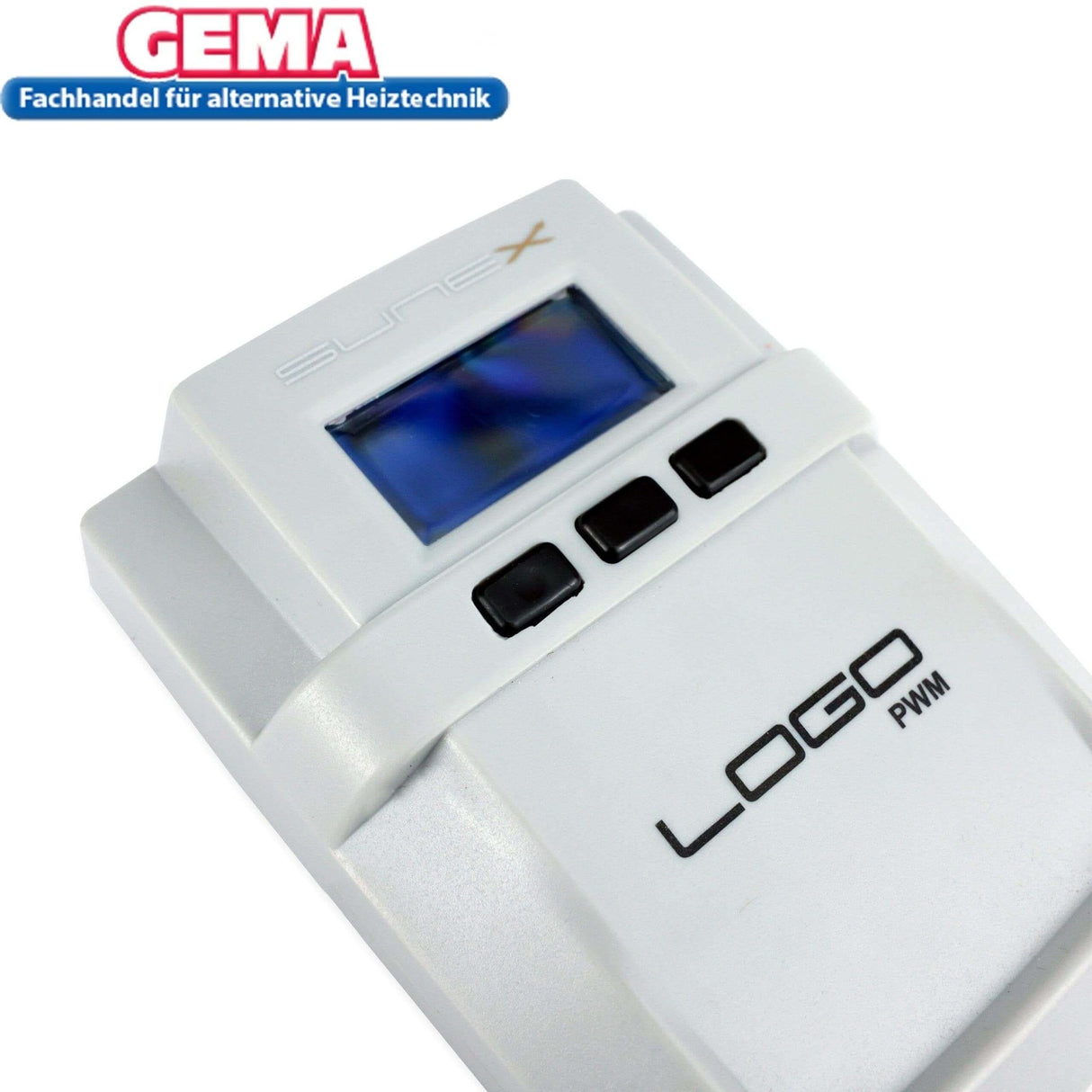

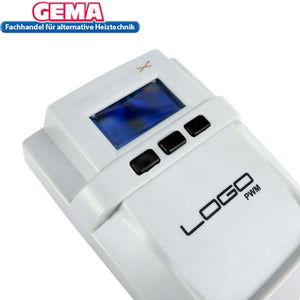

Intelligent control with the LOGO PWM solar controller

The LOGO PWM solar controller included in the package offers an intuitive user interface via an LCD display. You can conveniently monitor and adjust operating parameters. Thanks to differential control, the controller automatically adjusts the pump speed to the temperature conditions, thus increasing energy efficiency.

An integrated backup system saves all settings and protects them from data loss during power outages. This ensures that your system remains fully functional at all times.

Extensive equipment for immediate installation

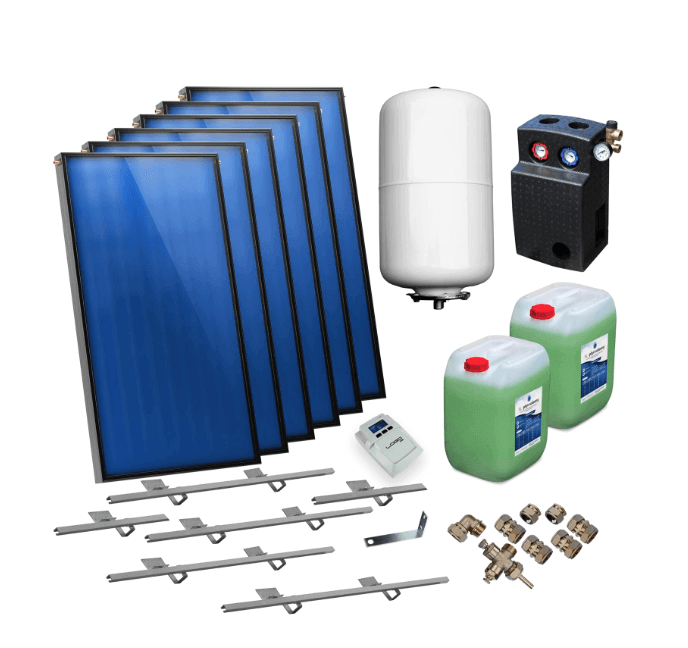

The AMX 2.38 solar kit comes with all the necessary components to ensure quick and easy installation. Included in the package:

• 6 flat plate collectors (AMX 2.38)

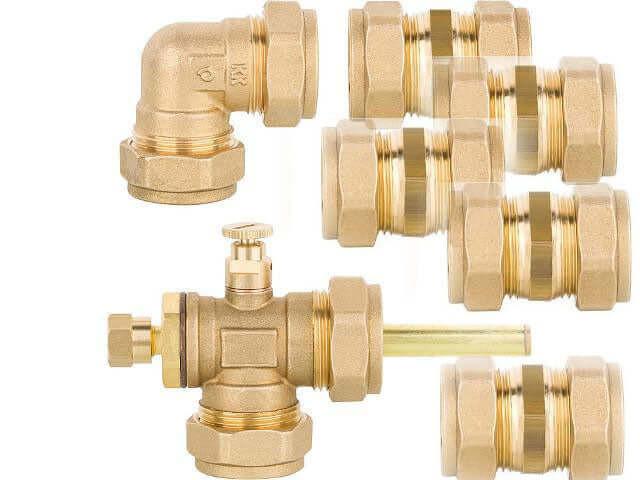

• A connection set for the collectors

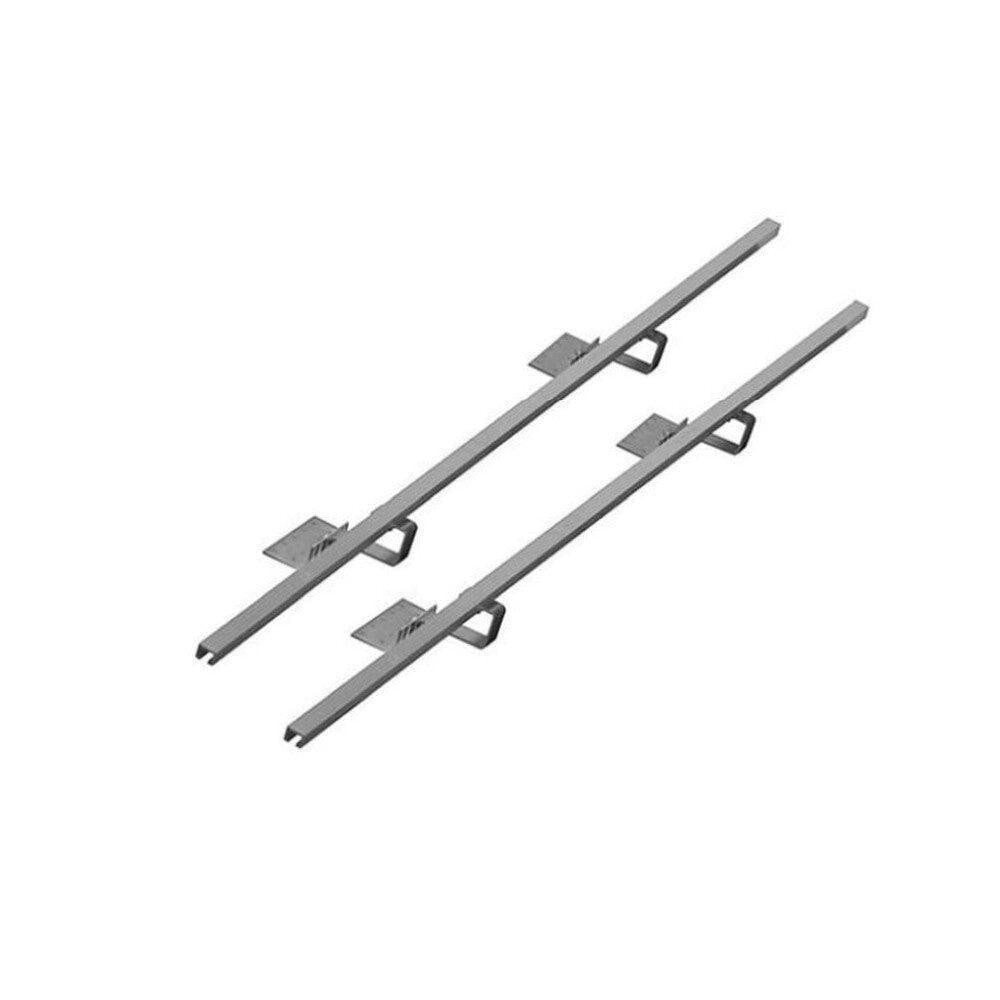

• Mounting kit specifically for pitched roofs

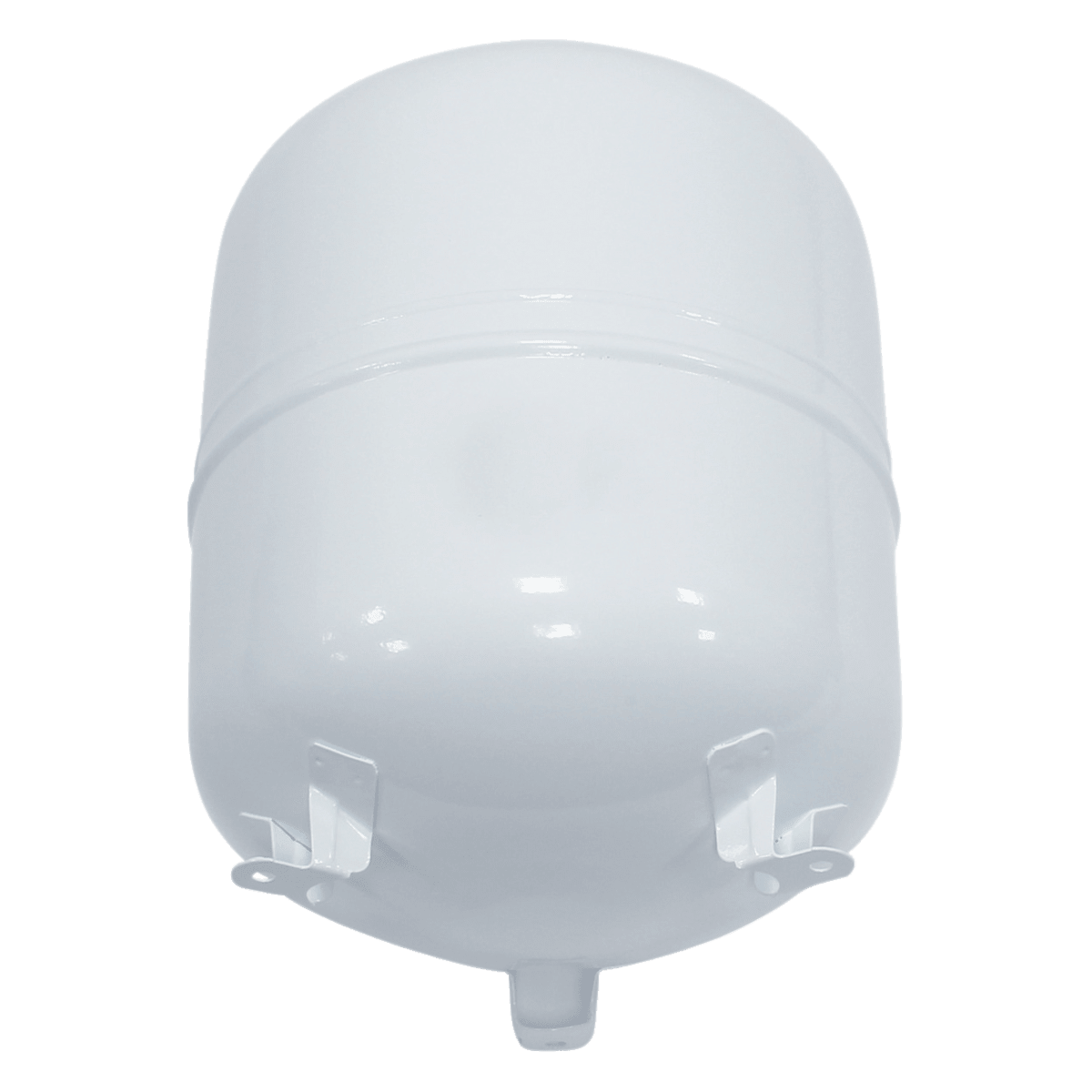

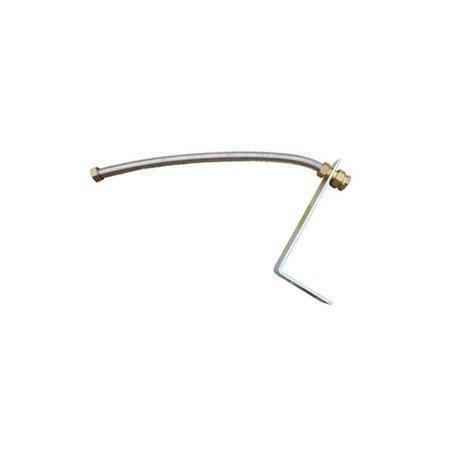

• A 35-liter solar expansion vessel with bracket
• The GPS PWM Hydra solar station
• The LOGO PWM solar controller

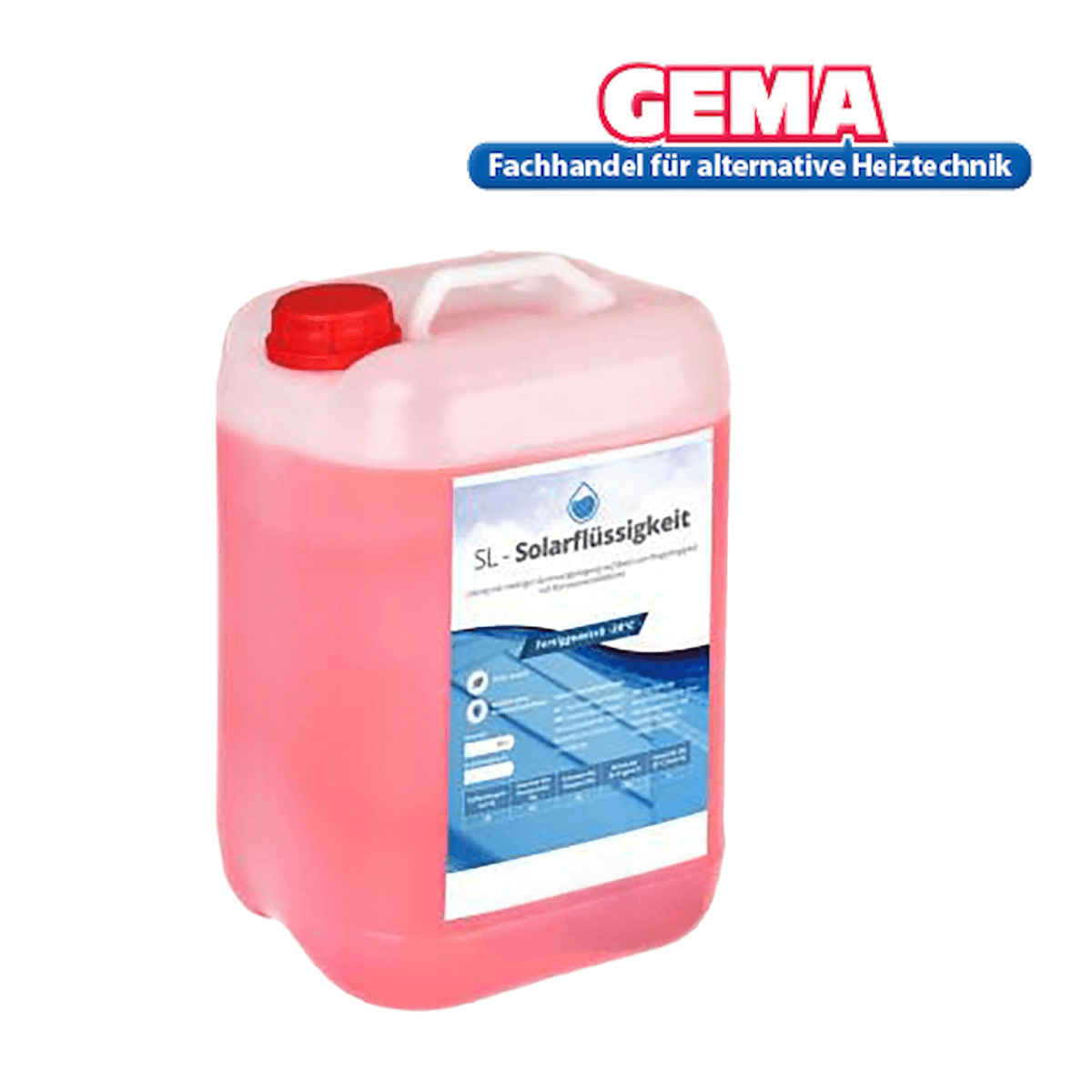

• 2 x 20 liters of solar fluid

All these components are perfectly matched to each other, ensuring smooth commissioning and long-term efficiency.

A sustainable investment in your future

With the AMX 2.38 solar package, you're choosing a modern, sustainable, and future-proof energy generation solution. Its high energy efficiency, easy installation, and available subsidies make this system an excellent choice for your home.

Reduce your energy costs, protect the environment, and benefit from a reliable energy source for years to come. The AMX 2.38 solar package helps you contribute to a greener future!

You will also need:

• Solar line DN16 or DN20 in a suitable length
• optional Roof penetration

Download

• Product data sheet Collectors
