Double -walled chimney made of stainless steel in different diameters

It consists of an inner and outer pipe made of high-quality stainless steel. An insulating material is placed between the two pipes to provide insulation. The double-walled construction increases the safety of the chimney system, as the outer wall remains cool while the hot combustion gases are dissipated through the inner pipe. MKD systems are available in various diameters and configurations.

Advantages of our dispensing systems:

• Corrosion resistance: Stainless steel is known for its excellent moisture resistance;
• Durability: Stainless steel chimneys have a long service life; lightweight and easy to install;
• Flexibility and adaptability: Chimneys are available in different diameters and configurations, allowing them to be adapted to the specific requirements of buildings and fireplaces;
• Insulation: our double-walled stainless steel systems are equipped with 30 mm insulation to minimize heat transfer to adjacent components and create constant negative pressure;
• Environmental friendliness: Stainless steel is 100% recyclable, which reduces environmental impact and promotes the sustainability of the material; our flue systems are suitable for various fuel types such as wood, gas, oil, pellets, and coal, and are used in private homes, commercial buildings, and industrial facilities; planning and design support; fast deliveries.
• A stainless steel chimney system used in buildings to safely vent smoke, exhaust gases, and other combustion residues from stoves, fireplaces, pellet boilers, wood boilers, gas and oil systems, or industrial plants to the outside. The function and tasks of a chimney, especially its quality, are crucial for the safety, efficient operation, and environmental protection of the fireplace.

Features: Double-walled stainless steel chimney

• corrosion-resistant/moisture-resistant
• durable
• flexible and adaptable
• environmentally friendly - 100% recyclable
• W2G-approval
• soot fire resistant
• easy and quick assembly

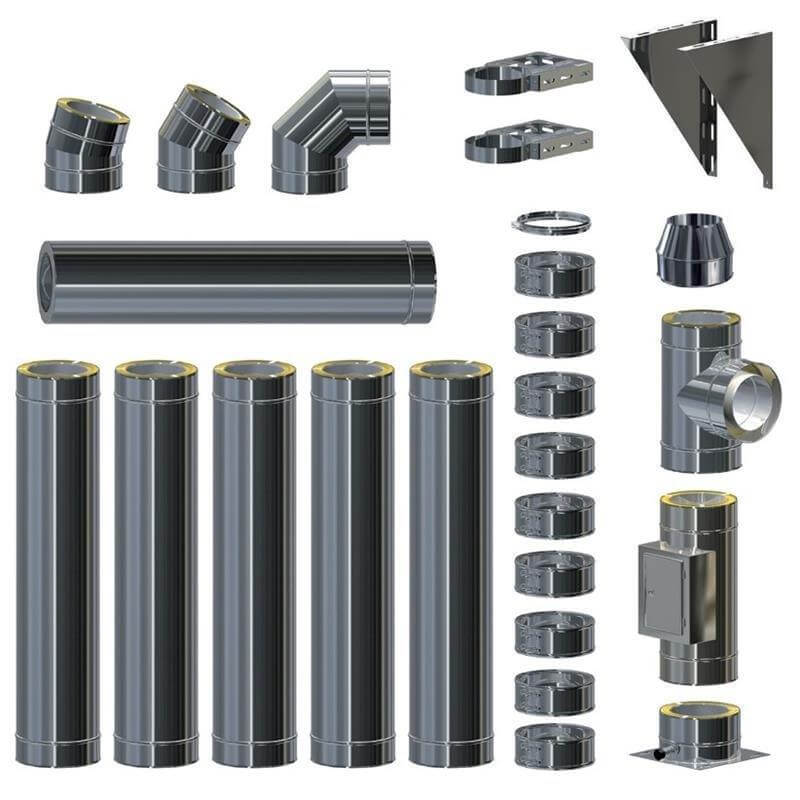

Scope of delivery

all packages included

• 1 x wall bracket 50 - 70 mm distance
• 1 x cleaning connection/inspection opening with door
• 1 x door for inspection opening
• 1 x combustion connection
• 1 x length element including wall lining
• 1 x base plate for wall bracket
• 1 x matt muzzle finish
• plus length element 1,000 mm per meter
• plus clamping band ready by the meter
• plus wall bracket 50 - 70 mm per meter

6 meters

• 5 x length element 1,000 mm
• 9 x clamping band wide
• 2 x wall brackets 50 -70 mm

7 meters

• 7 x length element 1,000 mm
• 10 x clamping band wide
• 2 x wall brackets 50 -70 mm

8 meters

• 7 x length element 1,000 mm
• 11 x clamping band wide
• 3 x wall brackets 50 -70 mm

9 meters

• 8 x length element 1,000 mm
• 12 x clamping band wide
• 3 x wall brackets 50 -70 mm

10 meters

• 9 x length element 1.000 mm
• 13 x clamping band wide
• 4 x wall brackets 50 -70 mm

11 meters

• 10 x length element 1,000 mm
• 14 x clamping band wide
• 4 x wall brackets 50 -70 mm

12 meters

• 11 x length element 1,000 mm
• 15 x clamping band wide
• 5 x wall brackets 50 -70 mm
