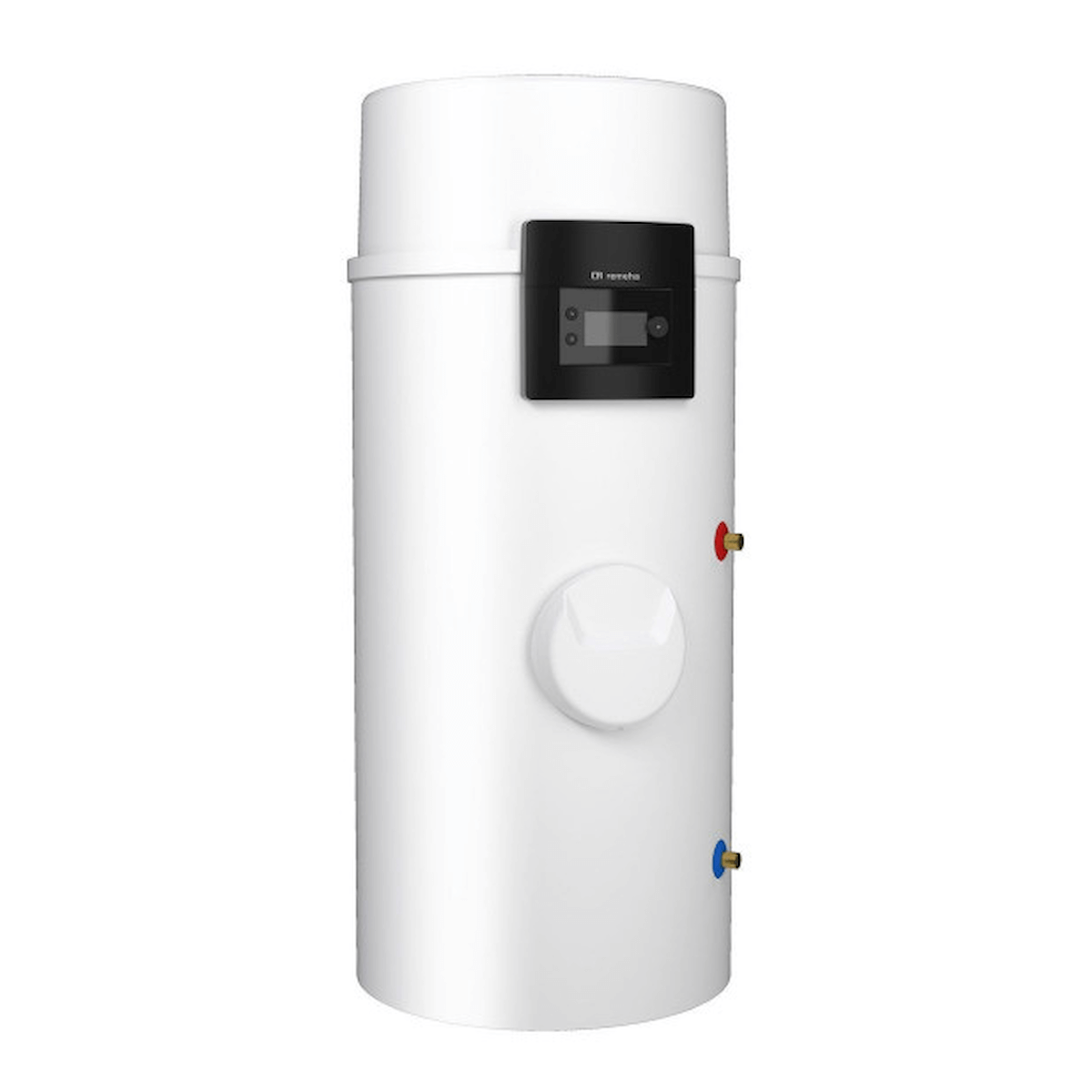

250l heat pump for efficient hot water preparation Remeha Azorra Ace
Remeha hot water heat pump 2.4 kW
Air/water hot water heat pump 2.4 kW
Azorra Ace 250 liters 2.4 kW
Air-to-water heat pumps are often used. These extract heat from the ambient air and use it to heat water inside the building. This makes it possible to heat domestic hot water and operate radiators or underfloor heating.
Air/water heat pump with 250 litres storage capacity
- Working range from -7 to +42°C outside temperature
- Controller removable with clock program for three switching times per day and legionella protection circuit
- Active climate protection with high CO² savings and possible connection to PV system
- Water comfort for 4-6 person households
- Hot water preparation with short warm-up time up to 65 ˚C
- Designed for renovation needs
- Fast and cost-effective installation
- Modern control platform with 4 different operating modes
- The domestic water pump can be transported horizontally.
- The supply and exhaust air can be supplied directly via indoor spaces or via the outside air
- Durable storage tank made of enamelled sheet steel with corrosion protection by impressed current anode
- built-in electric insert with 1.8 kW
- COP = 3.63 at air temperature 15 °C and water temperature 10 °C
Installation and connection of the Azorra Ace heat pump:

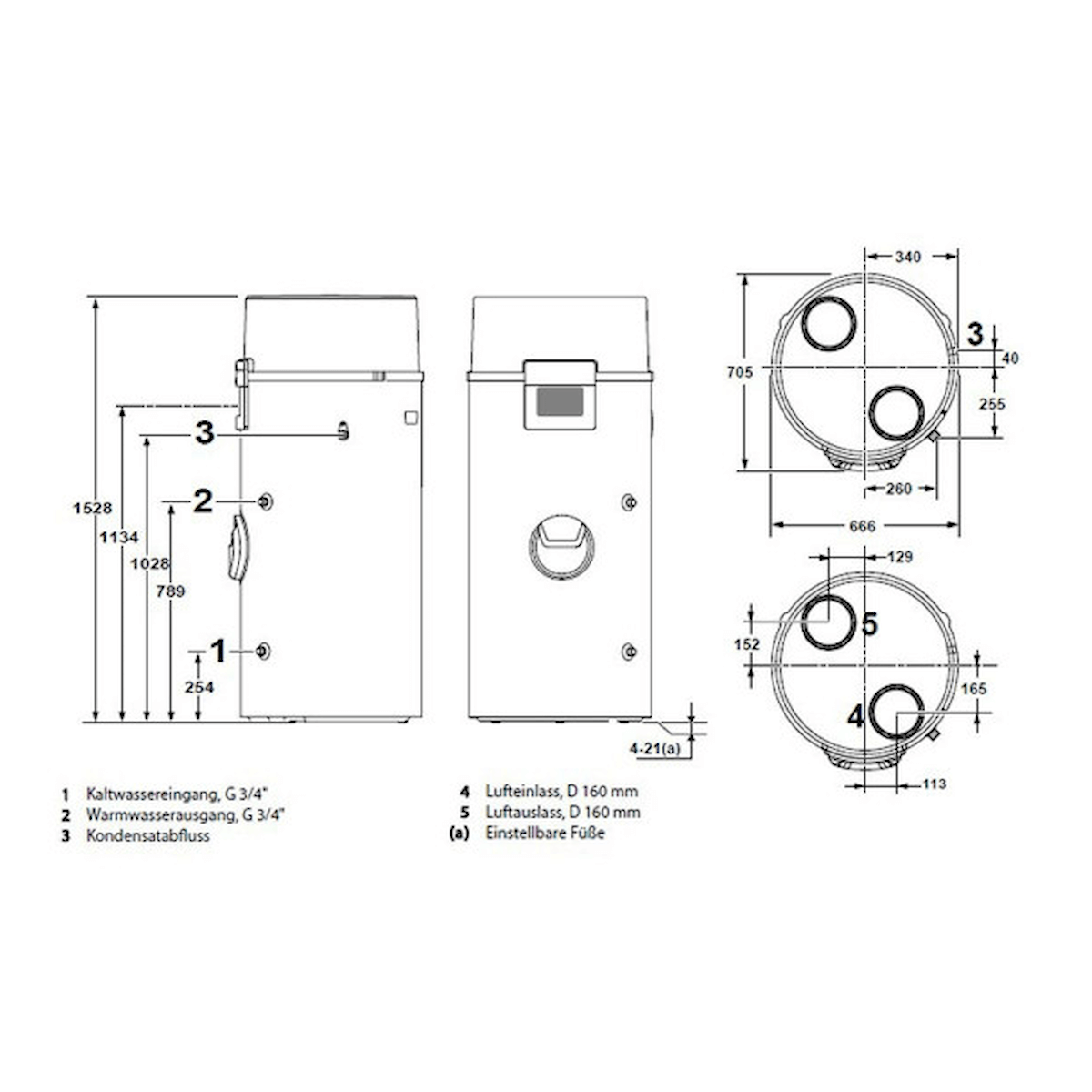

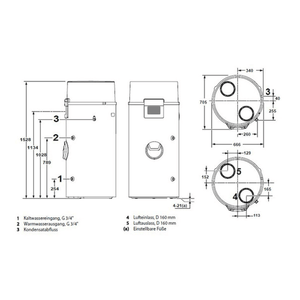

- Compact size (710mm x 670mm x 1760 mm (250L)
- Easy to install thanks to useful carrying handles
- Delivered ready-made -> easy installation
The cooled exhaust air can z.B. can be directed into a storage room or wine cellar, thus providing free cooling. If supply and exhaust air from the room are used, the room is also dehumidified via the heat pump.
- Hydraulic connections all accessible from one side
Solar thermal energy can be connected via the integrated heat exchanger. This transforms the hot water heat pump into a full-fledged solar storage system with economical storage charging support. The heat pump can be connected to the outside air from above via a Ø160 air duct (EPP/EPE or galvanized steel) -> any direction is possible without collision.
Azorra Ace Regulation
4 possible operating modes:
- Automatic: Hot water is prepared via the heat pump and, if necessary, the additional safety heating element is switched on or the additional heat exchanger of the Azorra Ace is used
- Eco: Hot water is produced exclusively by the heat pump
- Boost: Fast heating with all 3 possible heat generators (heat pump, electric heating element, external heat generator)
- Holidays: Hot water frost protection of 10°C during extended absences. Furthermore, operating hours counters, night-time electricity optimization, and programmable hot water heating are available.
The control is removable and can be installed at any desired location in the room. The hot water heat pump is connected to the control system via a 2-wire bus cable.
Technical data
- Max. electrical power consumption: 2,480 W
- Min/Max electrical energy consumption heat pump: 440/680 W
- Electric heating element power: 1,800 W
- Min/Max operating limits supply air: -7/42 °C
- Max Temp.Heat pump only/with electric reheating: 65/75 °C
- Max operating pressure: 8 bar
- Supply voltage: 230V/50Hz
- Circuit breaker: 16 A
- Electrical protection class: IP X1B
- Protective anode: TAS
- Cold and hot water connections: 3/4"
- Storage material: Enamelled steel compliant with DIN 4753
- Insulation thickness: 50 mm
- Diameter of air connections: 160 mm
- Max. air duct length: 20 m
- Connection smooth tube heat exchanger: 3/4"
- Heat exchanger area: 0.93 m²
- Refrigerant/Quantity: R290/0.150 kg
- GWP: 3
- CO2 equivalent: 0
- Sound power level inside/outside: 49/58 dB(A)
- Sound pressure level (2m): 35 db(A)
- Empty weight: 113 kg
- Dimensions (HxWxD): 1,760/666/705 mm
- Energy efficiency class: A+
