Pellet boiler NEXTPELL+ 20 kW – Efficient heating with the latest technology 🔥

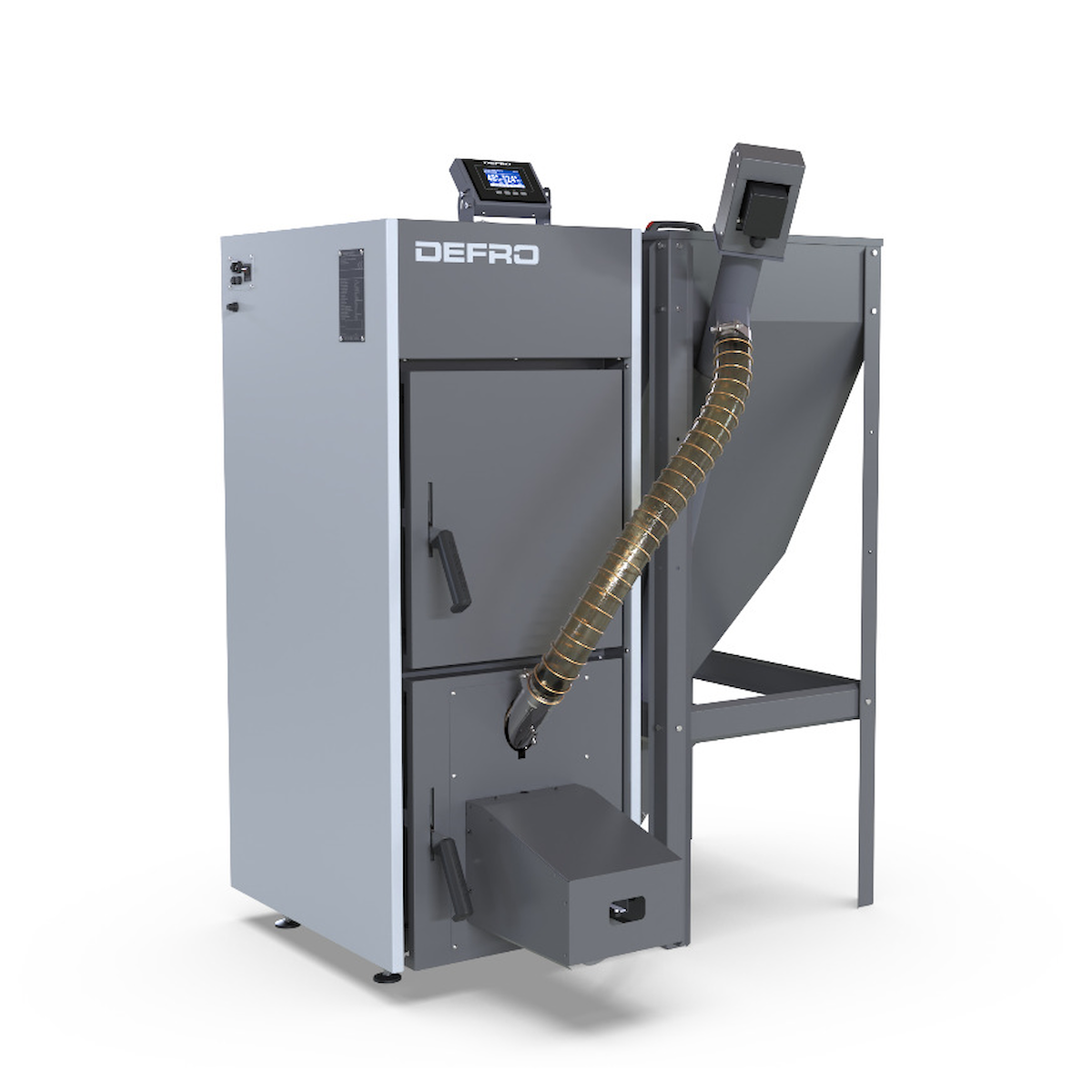

NEXTPELL+ 20 kW pellet boiler – innovative heating solution for maximum comfort

Modern technology and efficiency

The Pellet boiler NEXTPELL+ is an advanced solution for sustainable heating that combines state-of-the-art technology with high efficiency. Its outstanding efficiency makes an important contribution to environmental protection while ensuring economical heat generation for your home. Automatic system control and flexible burner output modulation optimize overall operation. The pellet boiler adapts optimally to current heat demand and ensures a comfortable, safe, and reliable heat supply around the clock. This modern control system not only improves operating convenience but also helps significantly reduce energy costs.

Versatile fuel use

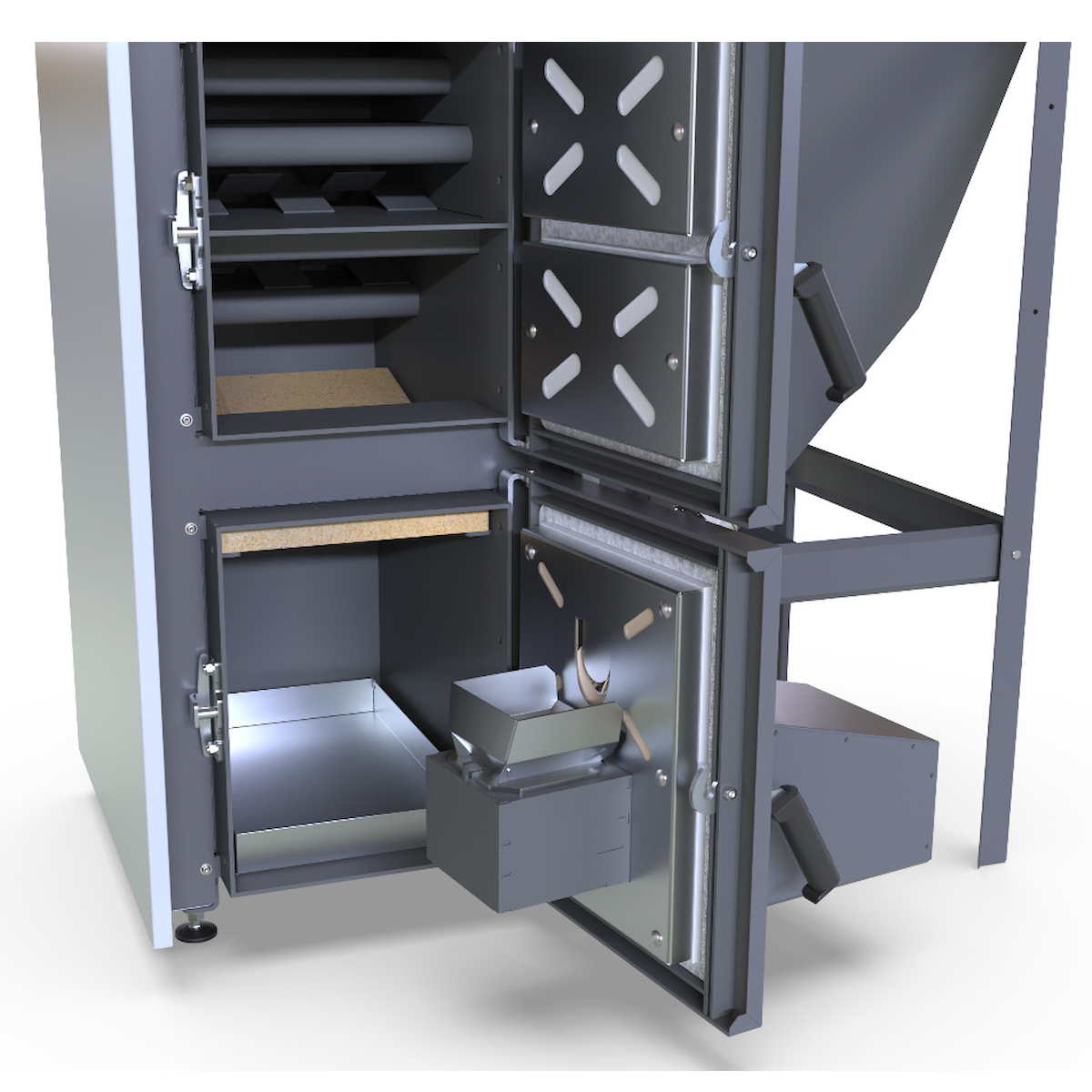

With its ability to burn both wood pellets and logs, the NEXTPELL+ pellet boiler offers remarkable flexibility in fuel use. This creates independence in fuel selection and allows you to always use the most cost-effective and available option. The integrated pellet burner features automatic self-cleaning, which minimizes maintenance and ensures trouble-free and efficient operation at all times – regardless of the fuel you choose.

High-quality workmanship and modern control

The robust, certified steel construction makes the boiler body particularly durable and resistant to the daily stresses of heating operation. A modern, factory-installed control system enables precise regulation of key components such as pumps and heating circuit mixers, ensuring the operation of the entire system is designed for maximum efficiency and safety. For forward-thinking users, the NEXTPELL+ pellet boiler offers expansion options such as an internet module that allows for easy online monitoring and flexible adaptation to changing system requirements.

Comprehensive scope of delivery and easy assembly

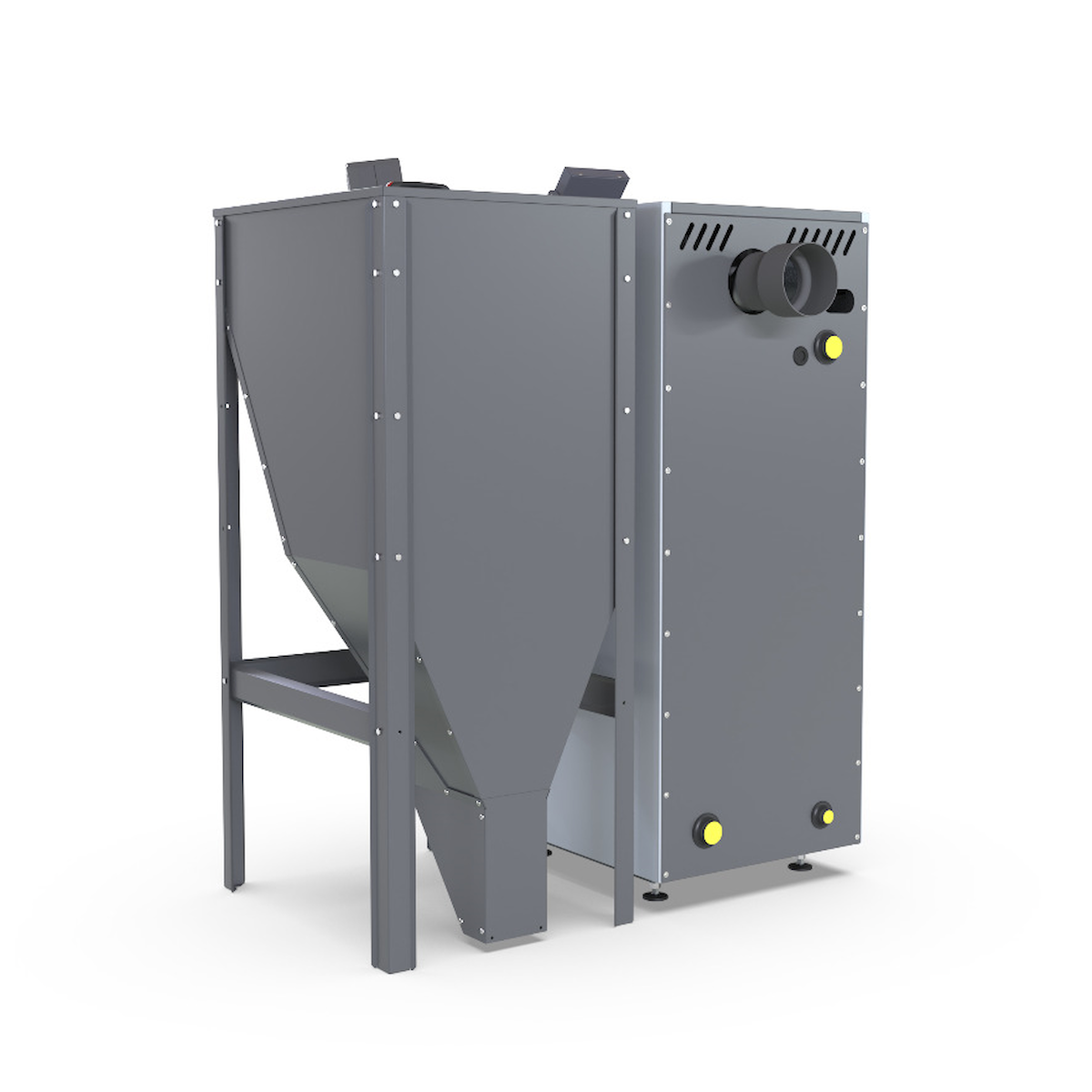

The scope of delivery includes a pellet hopper with integrated auger conveyor and a fully automatic pellet burner with a cleaning function. The system is complemented by a powerful control unit including all necessary cabling. The clear installation and operating instructions enable smooth and quick installation – even for users without in-depth technical knowledge. This ensures a quick start to modern, energy-efficient heating technology.

Robust construction and warranty

The solid construction and the use of high-quality materials ensure reliable and long-lasting operation. The boiler body is guaranteed for five years, while the electrical system and proper operation are covered for two years. These warranties offer you additional security and make the Pellet boiler NEXTPELL+ to a viable investment in a sustainable and economical pellet heating system.

Technical data at a glance

The pellet boiler has a nominal output of 20 kW and covers a variable output range from 5.9 to 19.8 kW. With impressive efficiencies of 91.9% at full load and 90.9% at partial load, it impresses with outstanding energy yield and efficient use of the fuel used. Thanks to its compact design (dimensions: 1054 x 1133 x 1415 mm including pellet hopper) and a weight of 271 kg, the boiler can be installed space-savingly and flexibly in various boiler rooms. The 130 mm flue connection ensures safe and trouble-free operation.

Technical data

• Energy efficiency class A+
• Boiler class 5
• Nominal heat output 20 kW
• Power range 5.9 - 19.8 kW
• Efficiency 91.9%
• Tensile requirement 13 Pa
• Prescribed fuel: wood pellets
• Exhaust gas temperature 132 °C
• Exhaust gas mass flow 14.7 g/s
• Height base 1530 mm/Plus 1415 mm
• Width base 498 mm/Plus 1054 mm
• Depth base 1133 mm/Plus 1133 mm
• Flue pipe connection 130 mm
• Weight 271.0 kg

Scope of delivery

• Pellet container with screw conveyor
• Pellet burner with automatic conveying
• System control including cabling
• Cleaning tool
• Assembly & Operating instructions

Download

Operating instructionsProduct data sheet
