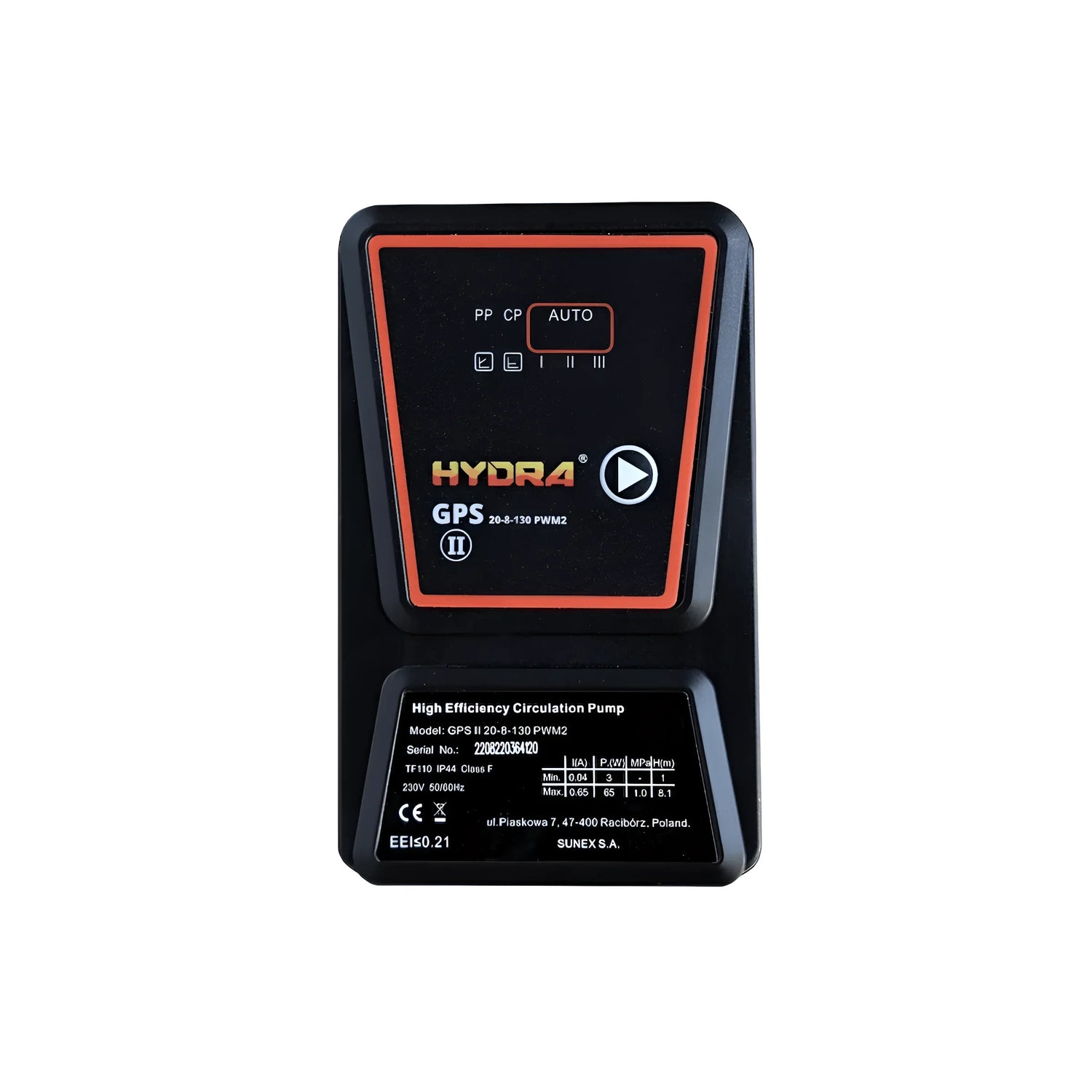

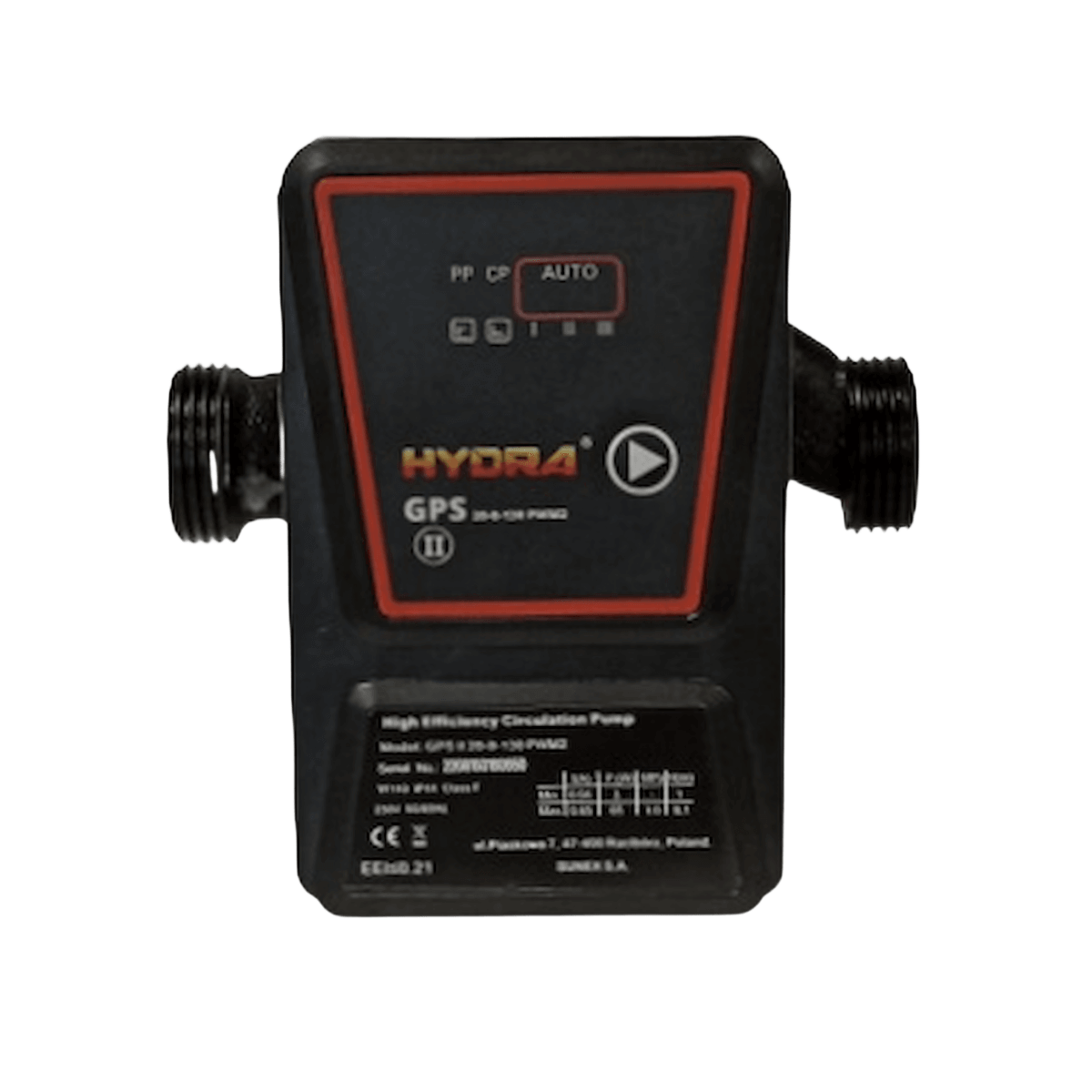

Hydra GPS solar pump 20-8-130 PWM for solar heating systems
Solar pump 20-8-130 PWM Hydra GPS II
The Hydra GPS Solar Pump 20-8-130 PWM is an electronic, energy-efficient pump with high efficiency. The pump is designed for solar heating applications. It is controlled via an external PWM signal (infinitely variable speed control), ensuring maximum energy yield. Due to its excellent price-performance ratio, it is installed as a replacement in many systems. For example, it replaces the Grundfos UPM3 Solar 15-75.
Advantages of the solar pump:
|
Technical data:
- Power supply: 220~240V, 50/60Hz
- Max. input power: 65W
- Liquid temperature: 2°C~110°C
- Ambient temperature: 0~+40°C
- Storage temperature: -35°C~80°C
- Protection class: IP44
- Max. pressure: 10 bar
- Max. lifting height: 8m
- Max. flow: 1.9m3/h at 5m H 0
- Connections: 1"
- Connection distance: 130mm
- Insulation class: F
- Weight: 1.4kg
