Edilkamin Tally S Evo 9.1 kW wood-burning stove with integrated glass flushing 🔥

Edilkamin Tally S Evo 9.1 kW

The 9.1 kW Edilkamin Tally S Evo is an elegant wood-burning stove from Edilkamin that effortlessly heats rooms up to 235 m³.

Thanks to the large window with integrated window purge, you always have a view of the flames. In addition to the optional heat storage, the Tally S Evo heats the room using natural convection during combustion.

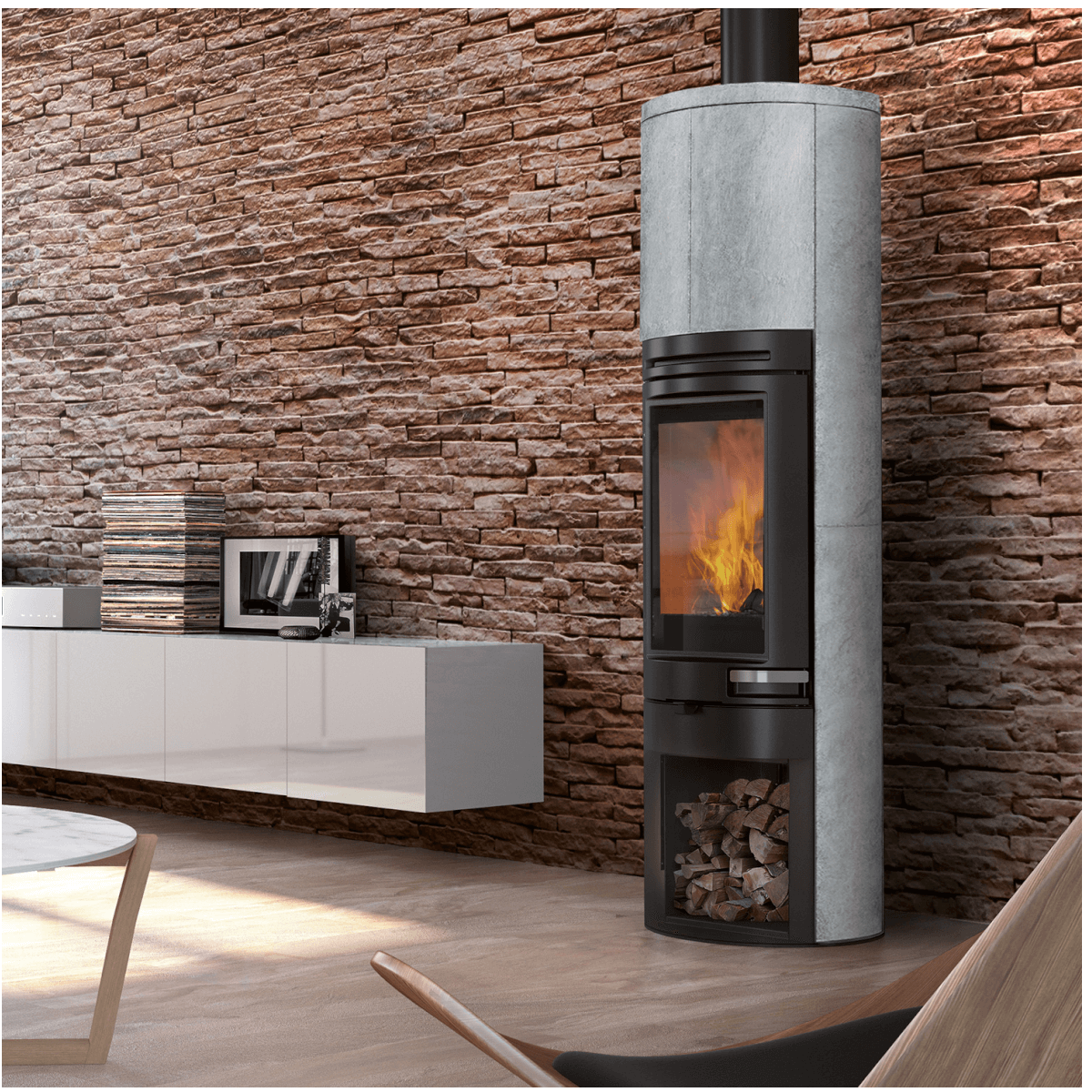

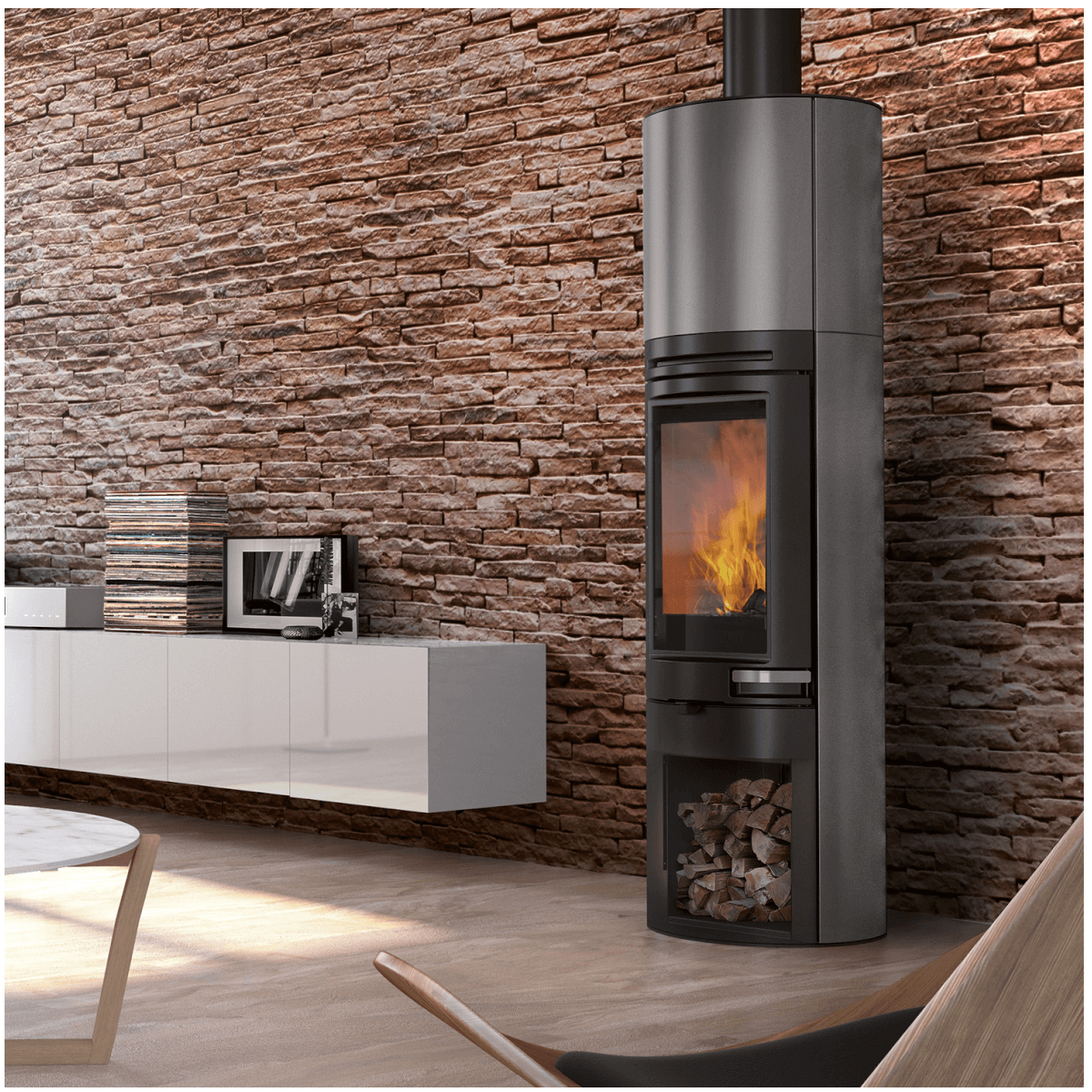

In the variants menu you can choose between side cladding in natural stone or steel grey.

Special features of the Tally S Evo stove:

• Flue pipe connection possible at the top and rear
  Decide for yourself how you want to integrate the Tally S Evo into your interior design. Depending on your needs, you can use the flue connection on the top or back of the stove.
• Connection for external supply air
  Instead of valuable indoor air, outside air can optionally be used for combustion. This is especially necessary in small or well-sealed rooms where oxygen is scarce.
• Various disguises

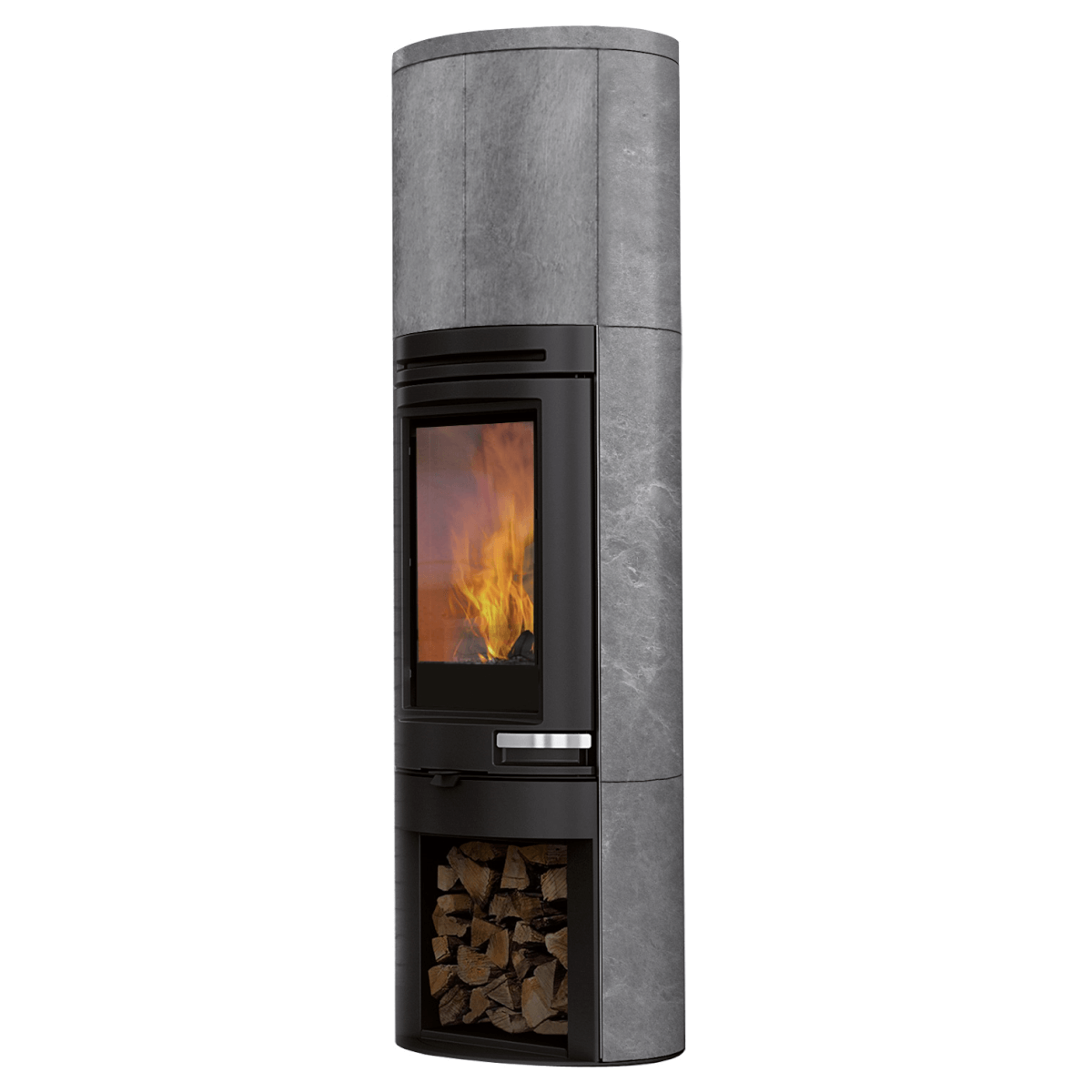

  The body of the wood-burning stove is made of black steel. Side panels are also available in gray steel or natural stone. Choose your favorite from the options menu.
• High viewing window
  The Tally S Evo's extra-high viewing window allows you to enjoy an impressive view of the flames. Thanks to the integrated window washer, it stays free of soot and dirt.
• Wood compartment
  The lower section features an open wood compartment that can store 30 kg of wood. This way, you always have fuel supplies at hand.
• Type 1
  The Tally S Evo stove features a self-closing door (Type 1) for your safety. The door closes particularly quietly thanks to the built-in damper.
• Optional: Ductable warm air distribution
  The hot air produced by the Tally S Evo can be directed into an adjacent room via a connection on the back. This allows you to efficiently utilize the heating power of this stylish wood-burning stove beyond the room where it is installed. It's best to order the matching air outlet and the Air Diffuser Kit at the same time.
• Optional: heat storage
  The stove is designed to hold 40 kg of storage mass, allowing it to heat the room efficiently and fuel-efficiently. This ensures continuous heating without having to keep the fire burning. It's best to order the heat storage kit at the same time. It's installed in the upper section.
• Optional: Automatic ignition
  With the automatic ignition kit, you can make the Tally S Evo almost as independent as a pellet stove.

Approvals and fulfilled requirements:

• DIN EN 13240
• BImSchV Stage 2
• EcoDesign Directive 2022

Technical data: Edilkamin Tally S Evo 9.1 kW

• Nominal heat output (in kW): 9.1
• Max. space heating capacity (in m³): 235
• Efficiency (in %): 90.3
• CO emission (in mg/cm³): 555
• Dust emission (in mg/m³): 23
• Exhaust gas temperature nozzle max. (in °C): 130
• Exhaust gas mass flow max.(in g/s): 7.3
• Required delivery pressure at nominal heat output (in Pa): 12

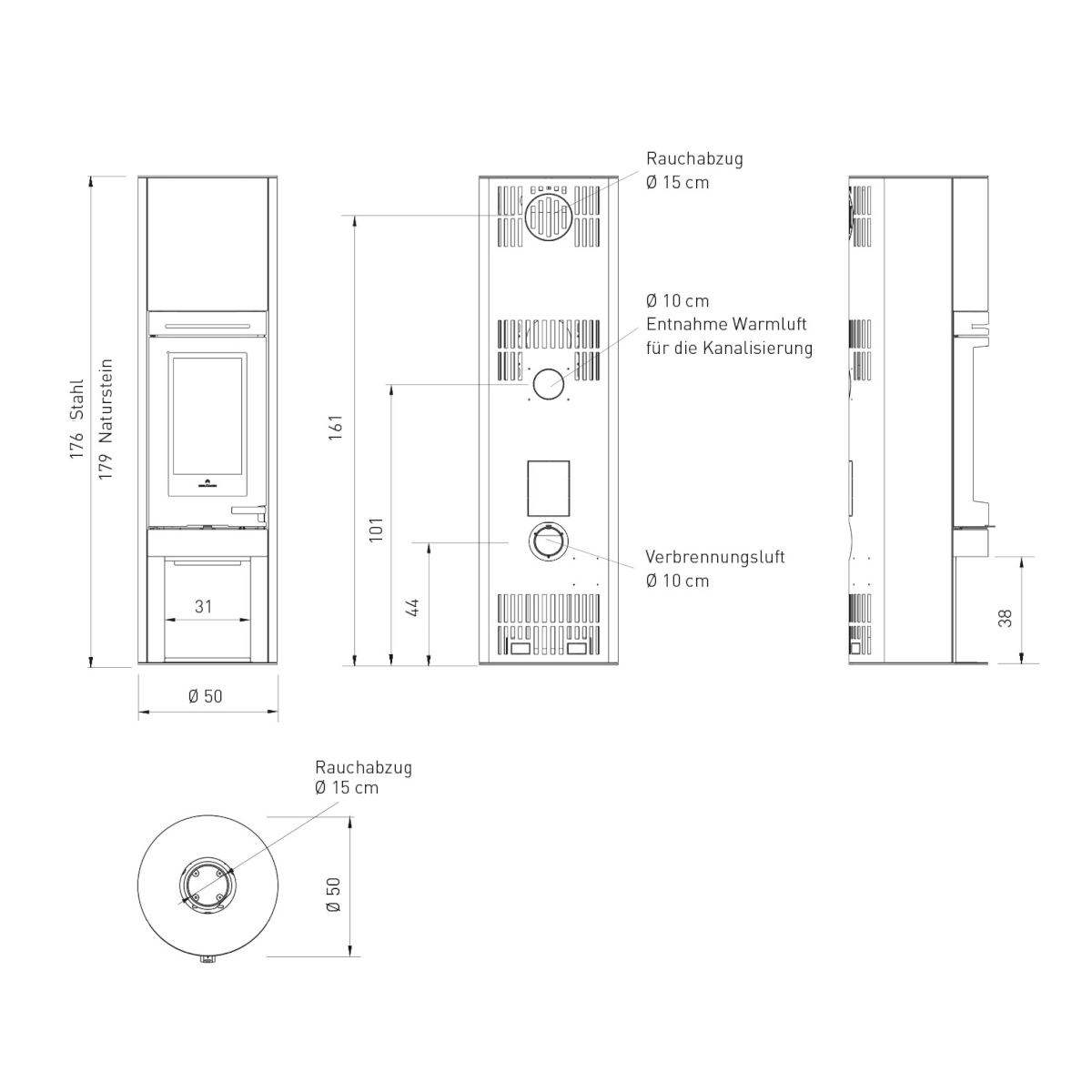

• Height (in mm): 1790
• Width (in mm): 500
• Depth (in mm): 500
• Combustion chamber height (in mm): 385
• Combustion chamber width (in mm): 290
• Depth of combustion chamber (in mm): 230
• Ø smoke pipe (in mm): 150
• Ø warm air ducting (in mm): 100
• Weight (in kg): 238/330

Download

• Product data sheet
