Attack DPX connection package up to 35 kW – Versatile connection solution for solid fuel boilers and wood gasifiers

Overview

The Attack DPX connection package is the ideal solution for optimizing solid fuel boilers and wood gasifiers with an output of up to 35 kW. It combines high efficiency with convenient handling and is designed to meet the requirements of modern heating systems.

With this comprehensive package, you can ensure that your heating system has all the necessary elements for reliable and safe operation. The combination of high-quality components ensures long-lasting, trouble-free service.

Technical equipment

The basic package includes essential components that contribute to optimizing the heating system. Among other things, the set includes a return temperature booster with a setting of 70°C or 72°C, as well as the integration of a high-efficiency pump, a thermometer, and effective insulation.

Further technical details include the boiler safety assembly, the TAS (thermal discharge safety device), as well as various fittings and connectors made of gunmetal and black elements. Also worth mentioning are several connectors in various sizes, which allow for precise integration into your existing system.

Safety and connection components

The connection package offers comprehensive safety features. The brass boiler fill and drain valve, a diaphragm safety valve, and strainers ensure reliable operation. These components are essential to prevent unexpected pressure loads and potential system failures.

Additionally, this set includes various solder fittings and press fittings that guarantee a flexible and secure connection of all system components. This significantly simplifies the assembly process and minimizes potential installation errors, thus sustainably optimizing the operation of the heating system.

Easy integration and installation

The sophisticated combination of various connection and safety components enables quick and easy integration into existing heating systems. Thanks to high-quality materials and precise dimensions, the individual modules are optimally coordinated.

The Attack DPX connection package up to 35 kW is therefore the perfect choice for users who value efficiency, safety, and ease of installation. Its versatile application options make it a future-proof investment for the operation of your solid fuel boiler or wood gasifier.

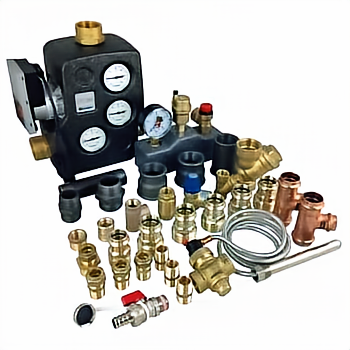

Scope of delivery

base

• 1 x return temperature increase 70°C or 72°C incl.High-efficiency pump, thermometer and insulation, 1¼"
• 1 x boiler safety group 1"-50kW
• 1 xTAS - thermal discharge safety device ¾"
• 1 x boiler filling and draining tap ½" brass
• 1 x brass membrane safety valve ½" 6bar
• 3 x gunmetal double nipple ½"
• 1 x gunmetal sleeve ½"
• 1 x gunmetal red piece ¾"x½"
• 1 x gunmetal T-piece ½"
• 2 x double nipples black 1¼"
• 2 x reducing sleeve black 1½"x1¼"
• 1 x pipe nipple black 1"x120mm
• 1 x reducer black 1¼"x1"
• 1 x T-piece black 1¼"
• 1 x angle black 1¼" 90° i/a
• 1 x check valve brass ½"
• 1 x strainer 1¼" brass
• 1 x strainer ½" brass

plus solder fittings

• 1 x T-piece 28mm
• 1 x T-piece 28x22x28mm
• 3 x heel nipples 15x½"
• 1 x heel nipple 15x¾"
• 1 x heel nipple 22x1"
• 5 x heel nipples 28x1¼"

plus press fittings:

• 1 x Profipress copper T-piece 28mm
• 1 x Profipress copper T-piece 28x22x28mm
• 3 x Profipress gunmetal union piece 15x½" AG
• 1 x Profipress gunmetal union piece 15x¾" AG
• 1 x Profipress gunmetal union piece 22x1" AG
• 5 x Profipress gunmetal union piece 28x1¼" AG
