Connection package ATMOS GSE basis for boilers up to 30kW

Connection package Atmos GSE up to 30 kW

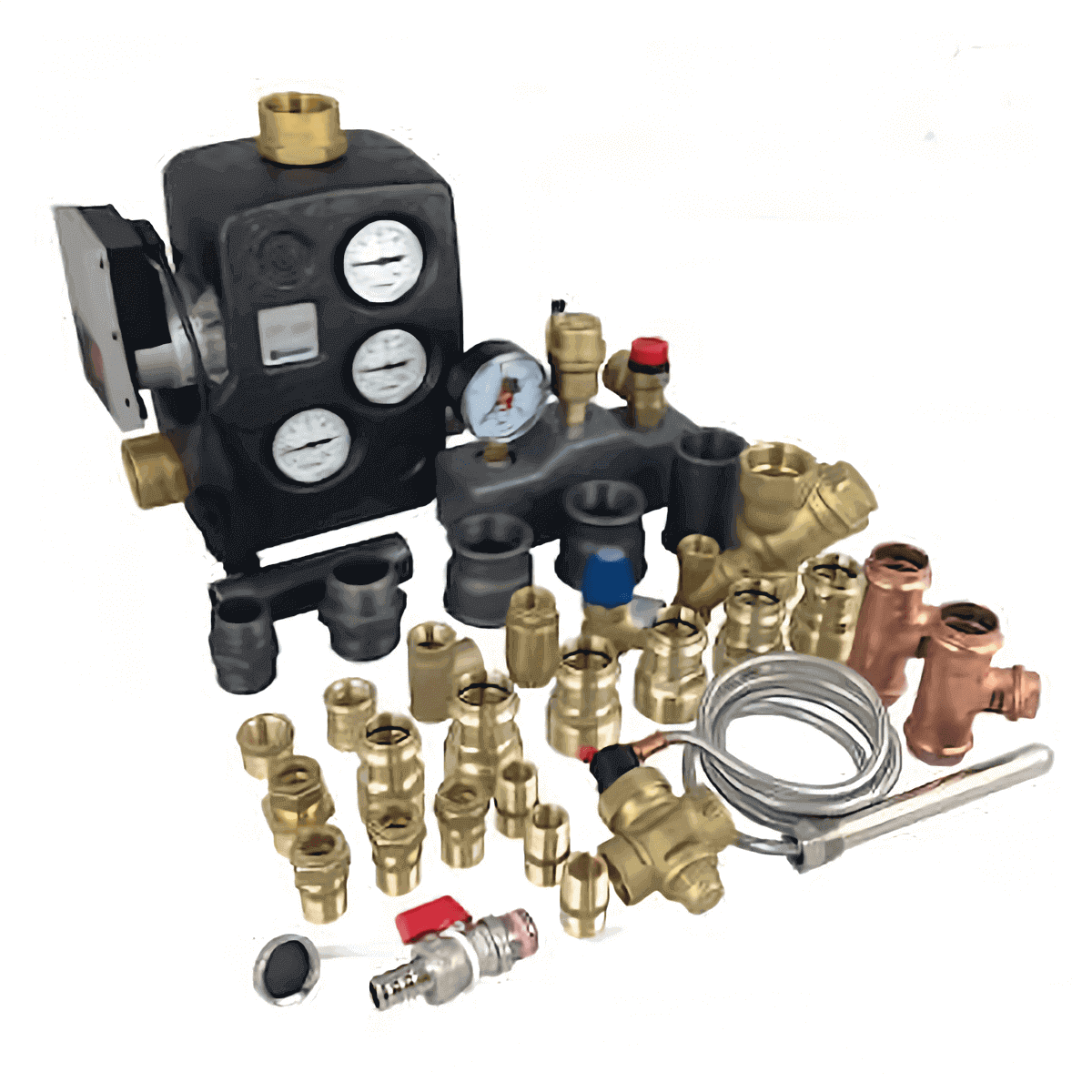

The connection package Atmos GSE up to 30kW - Basic - consists of:

• 1x return temperature increase 70°C or 72°C including high-efficiency pump, thermometer and insulation, 1¼"
• 1x boiler safety group 1"-50kW
• 1x thermal drain safety device ¾"
• 1x boiler filling and draining tap ½" brass
• 1x membrane safety valve brass ½" 6 bar
• 3x gunmetal double nipple ½"
• 1x gunmetal sleeve ½"
• 1x Gunmetal Red-Piece ¾"x½"
• 1x gunmetal T-piece ½"
• 1x double nipple black 1¼"
• 1x reducing double nipple black 1½"x1¼"
• 1x pipe nipple black 1"x120mm
• 1x reducer black 1½"x1¼"
• 1x T-piece reduced black 1¼x1¼x1"
• 1x angle black 1½" 90° i/a
• 1x strainer 1¼" brass
• 1x strainer ½" brass
• 1x Euro check valve brass ½"

Connection package Atmos GSE up to 30 kW

Basic package plus solder fittings:

• 1x T-piece 28mm
• 1x T-piece 28x22x28mm
• 3x heel nipples 15x½"
• 1x heel nipple 15x¾"
• 1x heel nipple 22x1"
• 5x heel nipples 28x1¼"

Basic package plus press fittings:

• 1x Profipress copper T-piece 28mm
• 1x Profipress copper T-piece 28x22x28mm
• 3x Profipress gunmetal union piece 15x½"
• 1x Profipress gunmetal union piece 15x¾"
• 1x Profipress gunmetal union piece 22x1"
• 5x Profipress gunmetal union piece 28x1¼"

*Technical changes reserved | Images may vary
