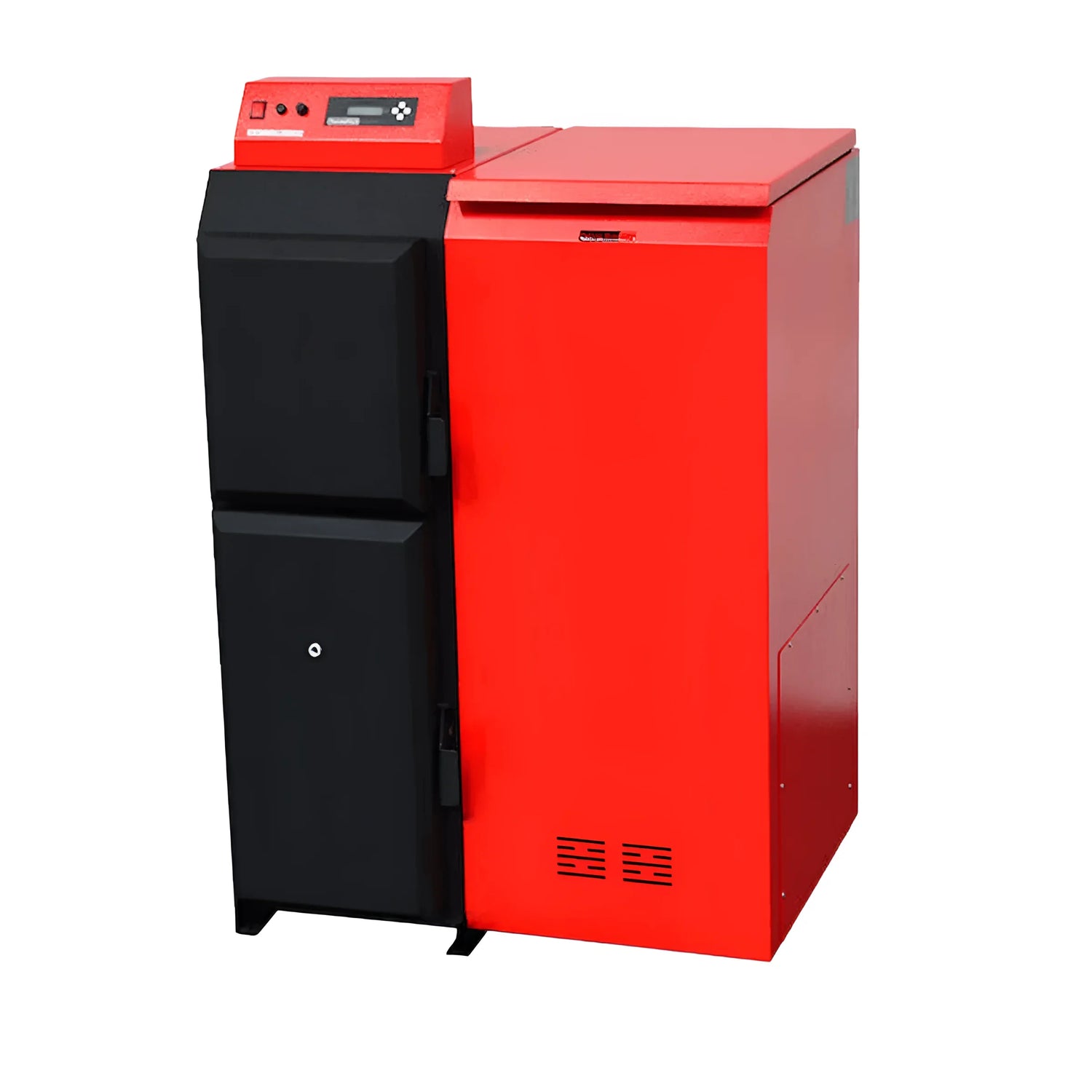

Thermoflux Pelling 25 ECO pellet boiler with 230 kg storage hopper – Efficient and environmentally friendly heating solution

Due to the amendment to the Heating Act "Technology Open", the Pellet heating systems very popular again!

The pellet boiler Thermoflux Pelling 25 ECO 25 KW pellet boiler presents itself as the optimal solution for sustainable and cost-effective heating systems. With its innovative technology, it combines high energy efficiency, environmental friendliness, and user-friendly features. Whether for single-family homes, weekend cottages, or office buildings – the Pelling ECO offers reliable heat supply at the most modern level and is easy to operate.

Powerful heat source with impressive efficiency

With a combustion efficiency of over 91%, the Thermoflux Pelling ECO demonstrates its efficiency. Thanks to its innovative design and mechanical fuel supply via a screw conveyor, optimal pellet combustion is ensured. The integrated speed-controlled induced draft fan ensures consistent and stable performance.

The automatic start and stop control of the pellet boiler Optimizes consumption by precisely adjusting operation to current heat demand. Unwanted noise and unnecessary energy losses are a thing of the past with this pellet boiler.

Generous storage tank and flexible fuel use

The Pelling 25 ECO pellet container has been generously dimensioned to allow longer operating times without refilling. In addition to the standard functionality, the boiler offers the possibility of Wood to burn. For the Operation with logs only additional thermal drain protection is required to ensure maximum safety.

This flexibility makes the pellet boiler particularly versatile and attractive for users who want to use different fuels for their heating solution.

Easy operation and maximum security

The Thermoflux Pelling 25 ECO is equipped with a user-friendly control system that allows for intuitive operation. The 10-stage control system allows for precise adjustment of the pellet feed, further optimizing heating operation. The clear interface allows users to easily monitor all important parameters and adjust them as needed.

Safety is a top priority with the Pelling ECO. The pellet feed is automatically stopped as soon as the temperature in the burner area becomes unusually high or if malfunctions occur. Alarm functions – both visual and audible – inform the user of problems such as running out of fuel or boiler overheating.

Modern ignition technology for high efficiency

The Pellet boiler 25 KW is equipped with an automatic ignition system that significantly simplifies operation. The ignition technology ensures that the pellets are ignited quickly and safely, without the need for manual intervention. This automatic ignition optimizes heating operation year-round and ensures maximum energy efficiency.

Alarm and protection functions for maximum operational safety

Der Thermoflux Pelling 25 KW ECO is equipped with a comprehensive safety system to ensure reliable and safe operation at all times. A temperature limiter intervenes if critical temperatures are exceeded, interrupting the heating process to prevent damage to the boiler or the heating system.In addition, permanent sensors monitor the temperature of the burner and the feeder motor winding to detect possible overheating at an early stage.

Should a malfunction occur, the user is immediately alerted by visual and acoustic signals. These potential warning situations include boiler overheating, burnback overheating, or an empty storage container. This provides the owner with additional security and ensures reliable operational monitoring.

Environmentally friendly and future-proof

With the Thermoflux Pelling 25 With ECO, you're opting for an environmentally friendly heating solution that minimizes emissions. Thanks to the boiler's high efficiency, the pellets are completely burned with extremely low emissions. The innovative control technology ensures that only as much energy is generated as is actually needed – a particularly sustainable way to conserve resources.

In addition, the pellet boiler Its durable construction and use of robust materials ensure a long service life. This makes it a future-proof investment for environmentally conscious households and businesses.

Conclusion: Perfect combination of comfort, efficiency and safety

Der Thermoflux Pelling ECO 25 KW iIt's an excellent choice for anyone looking for an energy-efficient and environmentally friendly heating option. With its easy operation, powerful technology, and comprehensive protection features, it impresses across the board.

Thanks to its generous storage capacity and the ability to burn additional wood, the boiler offers a high degree of flexibility. Whether for private households or commercial use, the Pelling ECO stands for comfort, economy, and environmentally friendly heating.

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 25 kW

• Power range 10.3 - 25 kW

• Efficiency 91.3%

• Tensile requirement 12 Pa

• CO content pellet 68 mg/m³ wood 139 mg/m³

• Dust emission Pellet 10 mg/m³ Wood 19 mg/m³

• Prescribed fuel pellets/logs

• Maximum firewood length 500 mm

• Exhaust gas temperature 159 °C

• Exhaust gas mass flow 14 g/s

• Height 1245 mm

• Width 710 mm

• Depth 948 mm

• Flue pipe connection 120 mm

• Weight 267.0 kg

Scope of delivery

• ThermoFlux Pelling 25 ECO with 25 kW and 230 kg container, right
• 2 buffer thermostats
• Cleaner
• Sheet metal shovel

Optional accessories
