Water softening system - decalcification system R2D2 - 72 with 1" Connection set & mounting block 1"

Water softener Aqmos R2D2-72 – Efficient limescale removal for households

Powerful ion exchange process

The Aquas R2D2-72 uses the proven ion exchange process to effectively remove limescale from your tap water. Hardness-causing calcium and magnesium ions are exchanged for sodium ions, creating soft, easy-care water. This technology ensures consistently high softening performance and protects household appliances and pipes from limescale deposits.

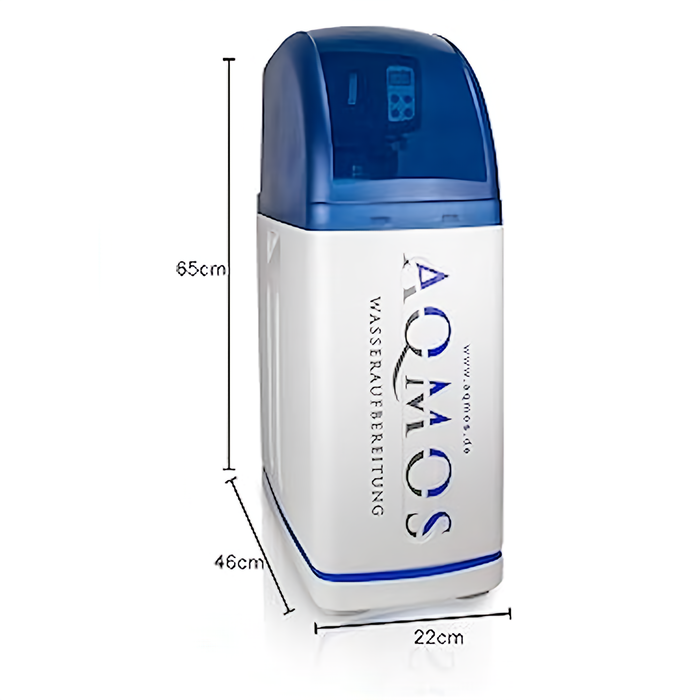

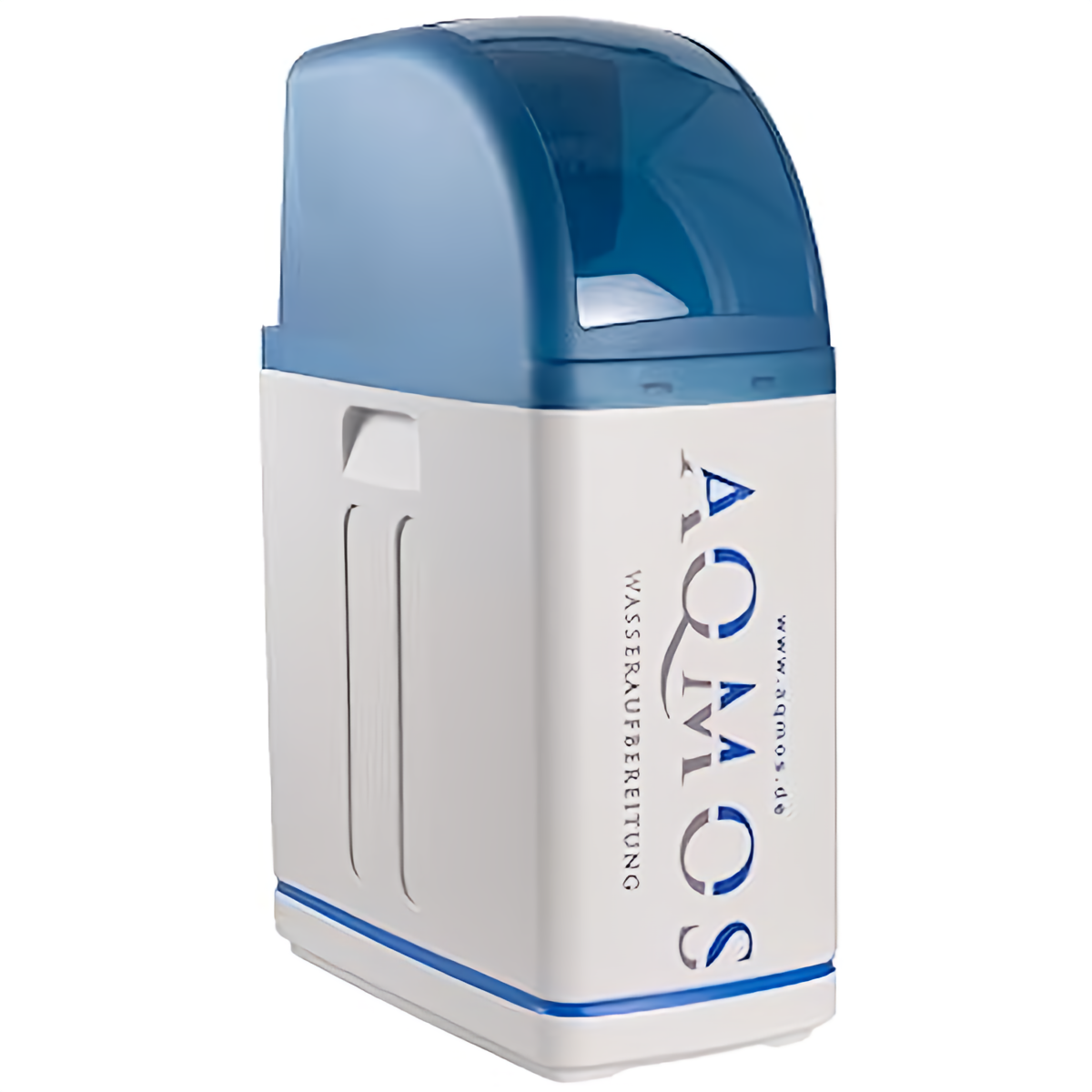

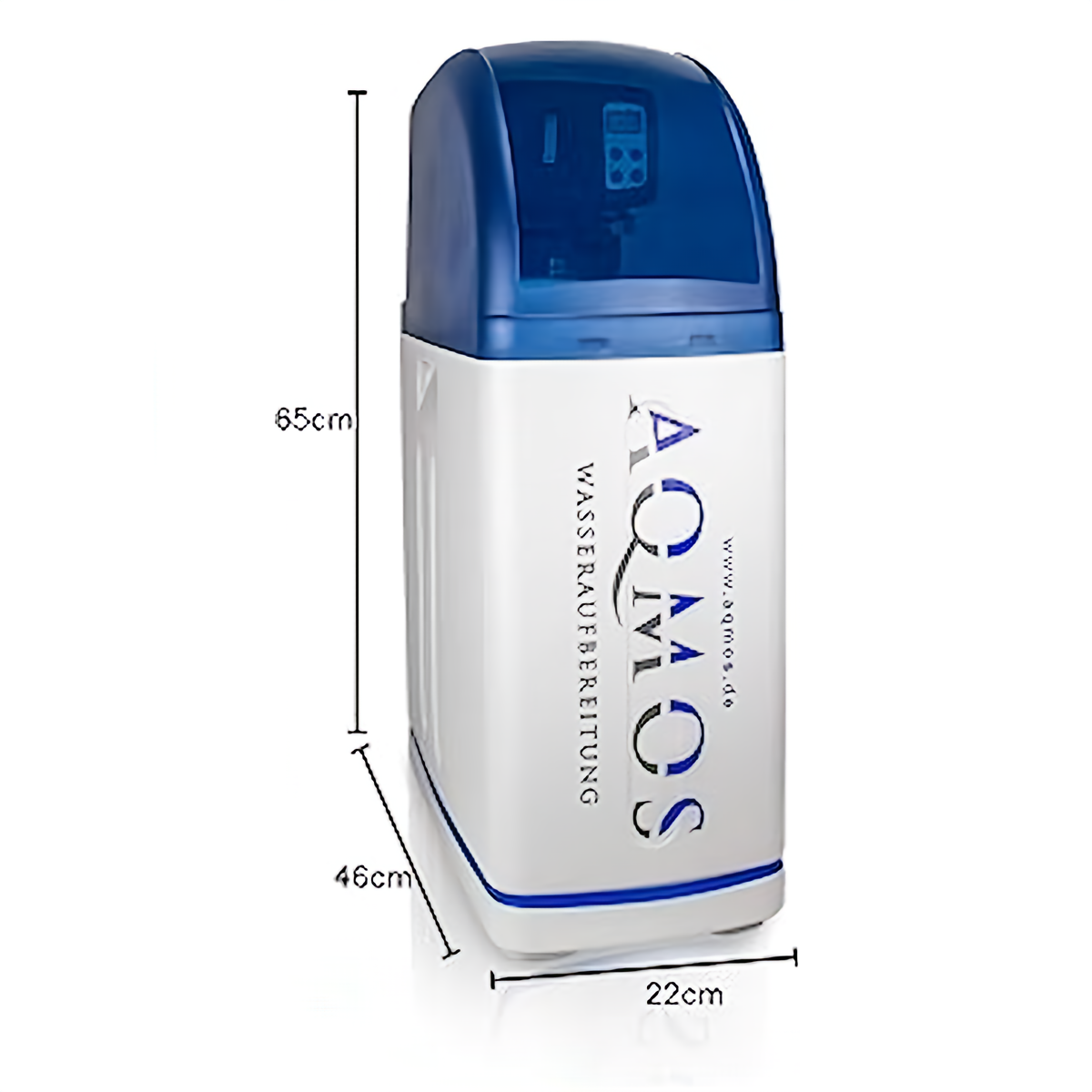

Robust cabinet and large salt storage

The sturdy cabinet housing houses a glass-fiber-reinforced (GRP) pressure bottle filled with high-quality ion exchange resin. The integrated regeneration salt container holds up to 25 kg of salt and ensures long refill intervals. A removable lid allows quick access to the salt reservoir and facilitates maintenance and refilling.

Precise water quantity control

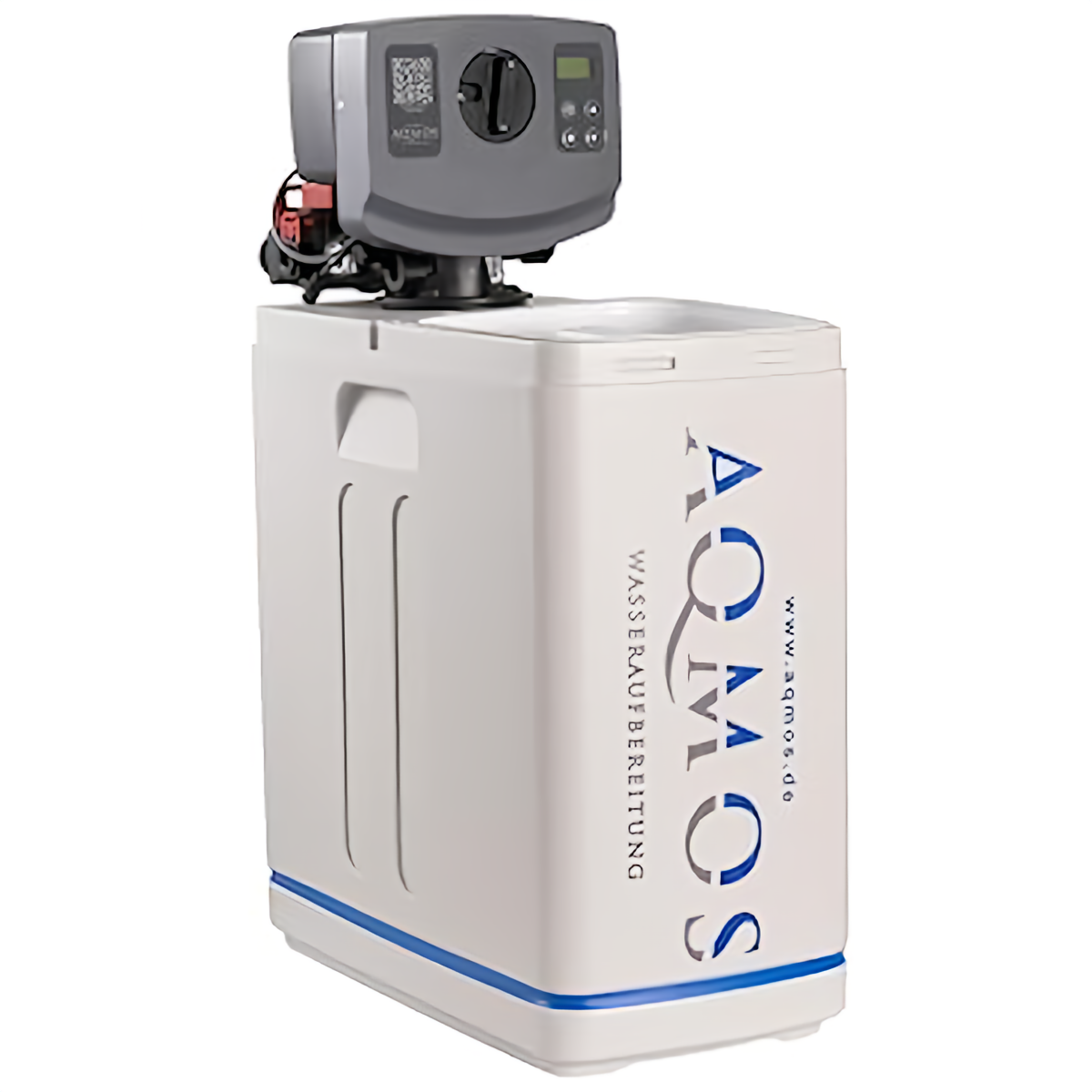

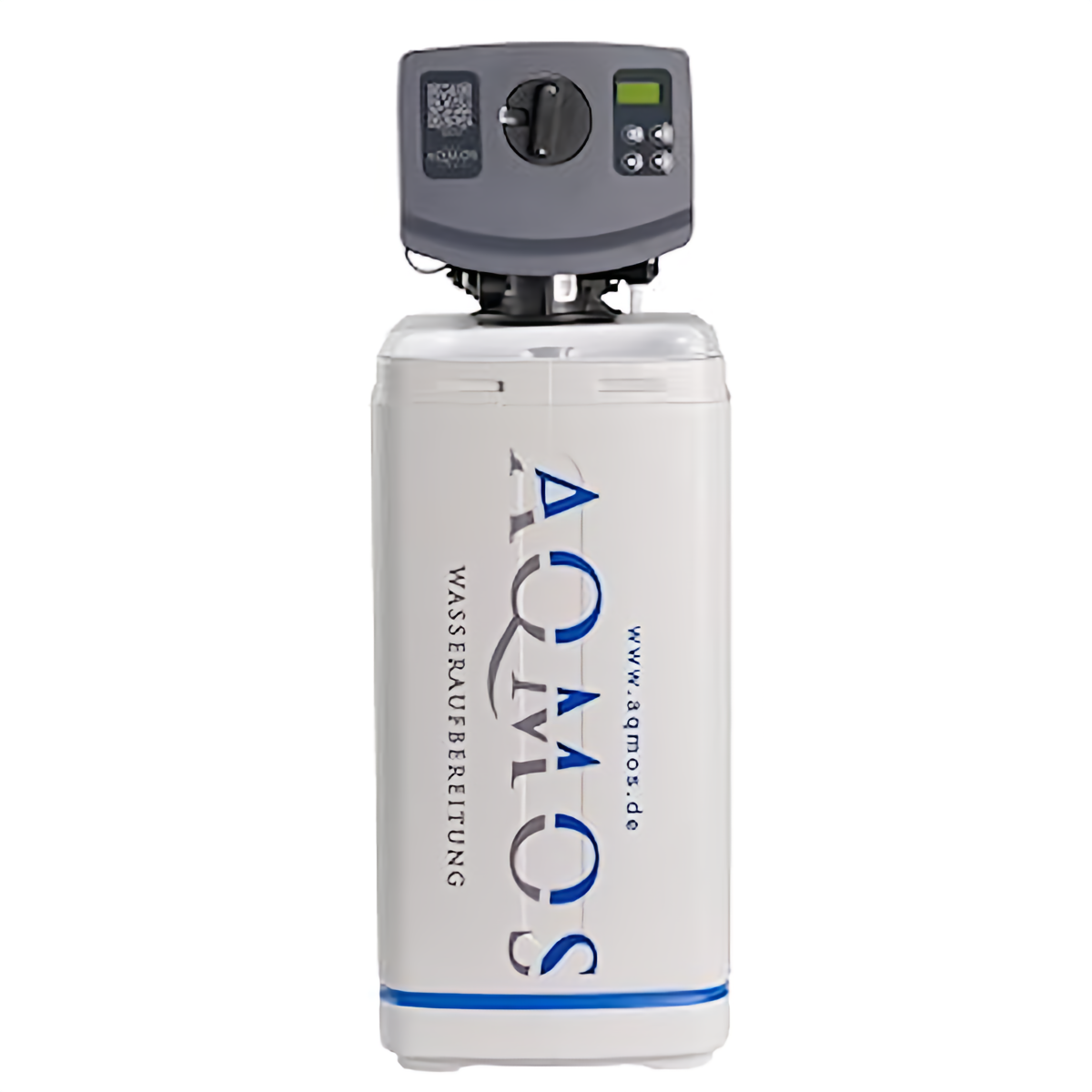

The factory-set BNT 1650 valve measures actual water consumption using an integrated counter. Once the preset volume is reached, regeneration only starts in the early morning hours at 2:00 a.m. This delayed, volume-controlled regeneration ensures uninterrupted water flow throughout the day, ensuring a supply of lime-free water around the clock.

Automatic regeneration process

Once the ion exchange resin is saturated, the system automatically runs through the regeneration cycle. A highly concentrated saline solution (sodium chloride) is passed over the resin to exchange the used calcium and magnesium ions and flush them into the wastewater. The resin is then fully recharged with sodium ions, ready for the next softening phase.

During regeneration, an integrated bypass takes over the water supply, ensuring untreated drinking water is available at all times. This around-the-clock supply avoids bottlenecks and increases operating convenience.

High-quality exchange resin with long service life

In the heart of the Aqmos R2D2-72 uses an ion exchange resin that is designed for over 20 years of reliable performance. Resin is occupied by sodium ions (Na+). It is called hard water (tap water) over the resin, the calcium and magnesium ions (Ca2+/Mg2+) present in the water are exchanged for the sodium ions (Na+) present on the resin. The result is soft waterThe resin has a Service life of over 20 years.

Benefits for your household

The Aqmos R2D2-72 is ideal for families or multi-person households of up to seven people. It effectively protects washing machines, dishwashers, and faucets from limescale deposits and reduces detergent consumption. Soft water improves the feel of skin and hair and contributes to a pleasant living environment.

With its automatic control system, generous salt tank and long-term resin quality, the system offers a low-maintenance and reliable solution for smooth operation and highest water quality in everyday life.

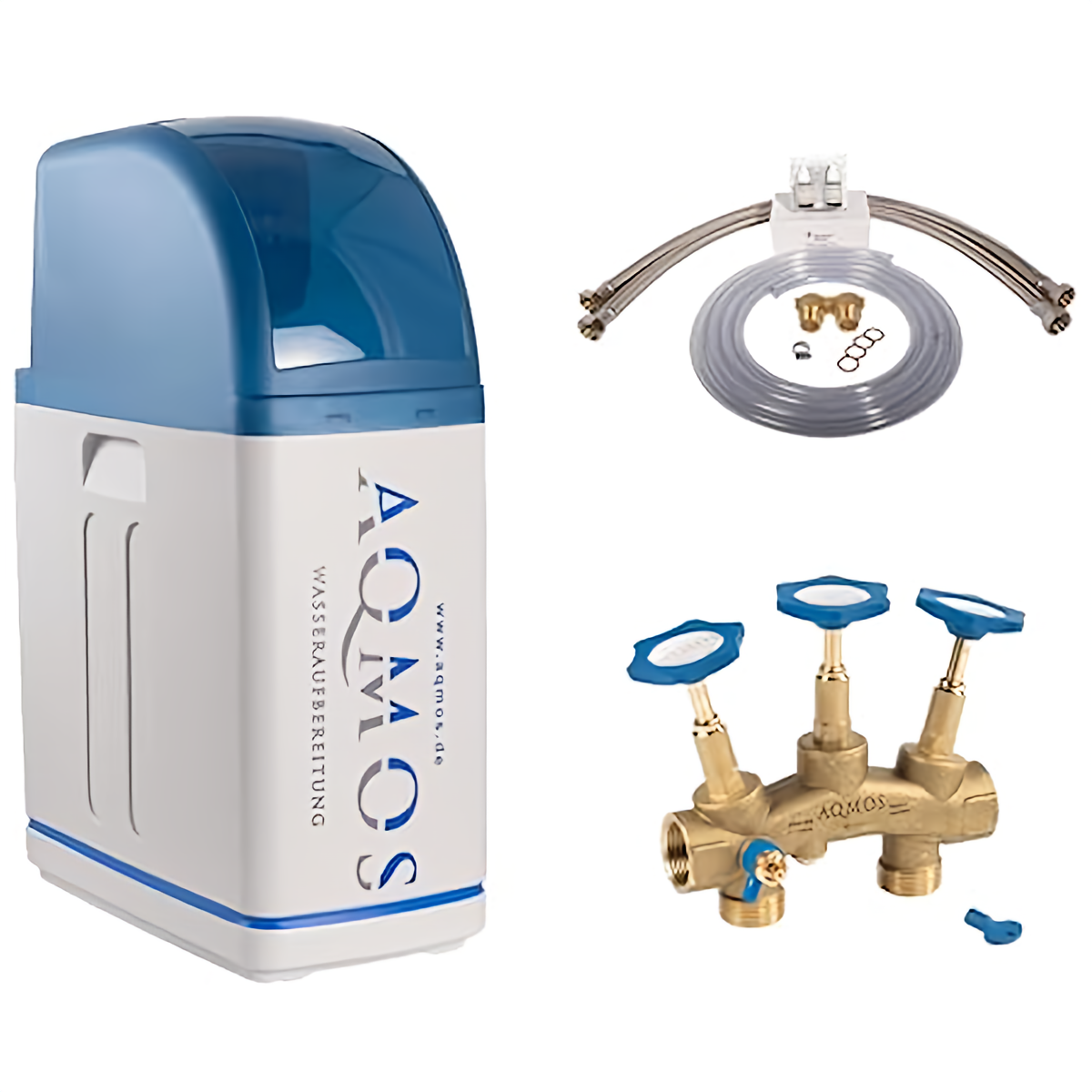

Scope of delivery

• R2D2-72 facility

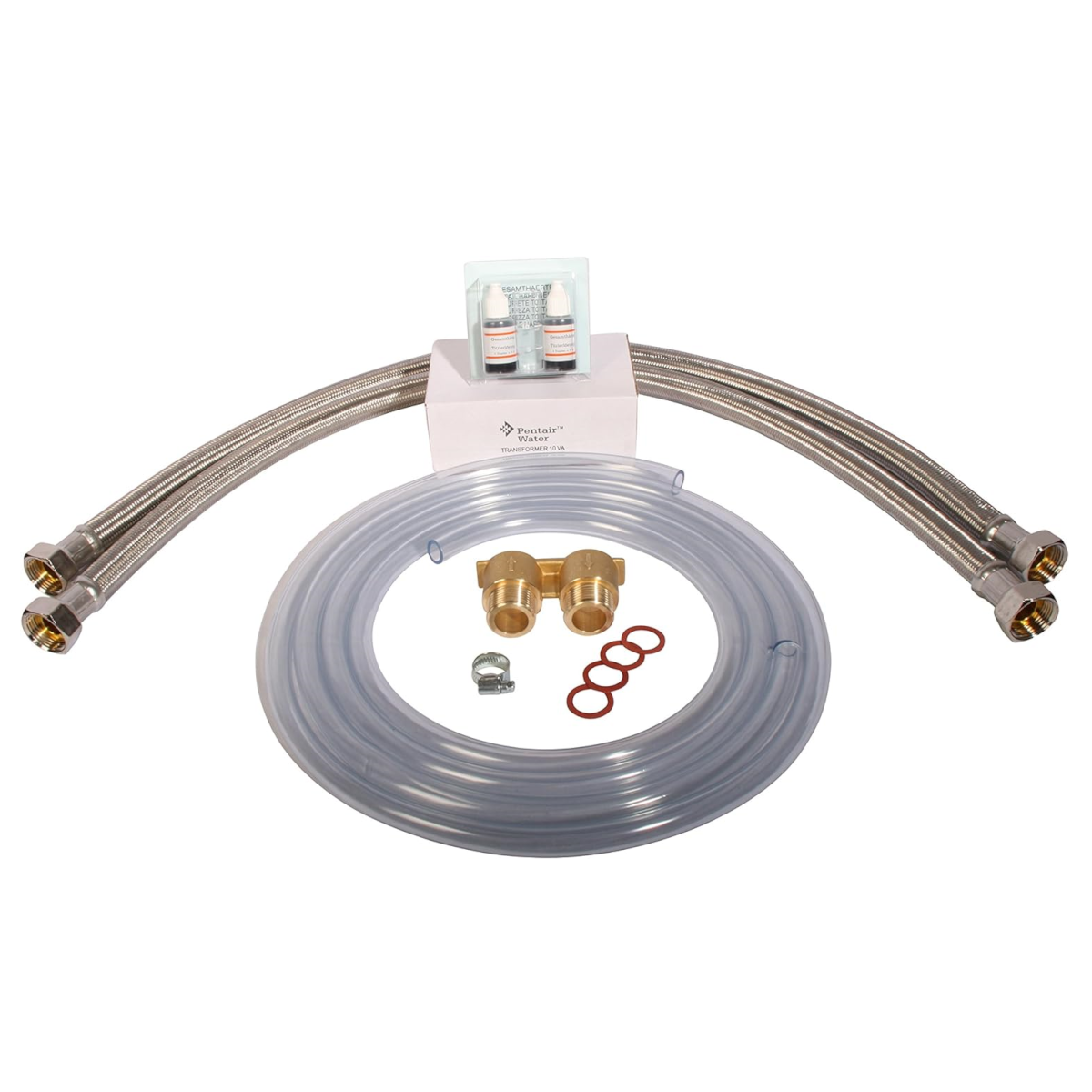

• Connection material

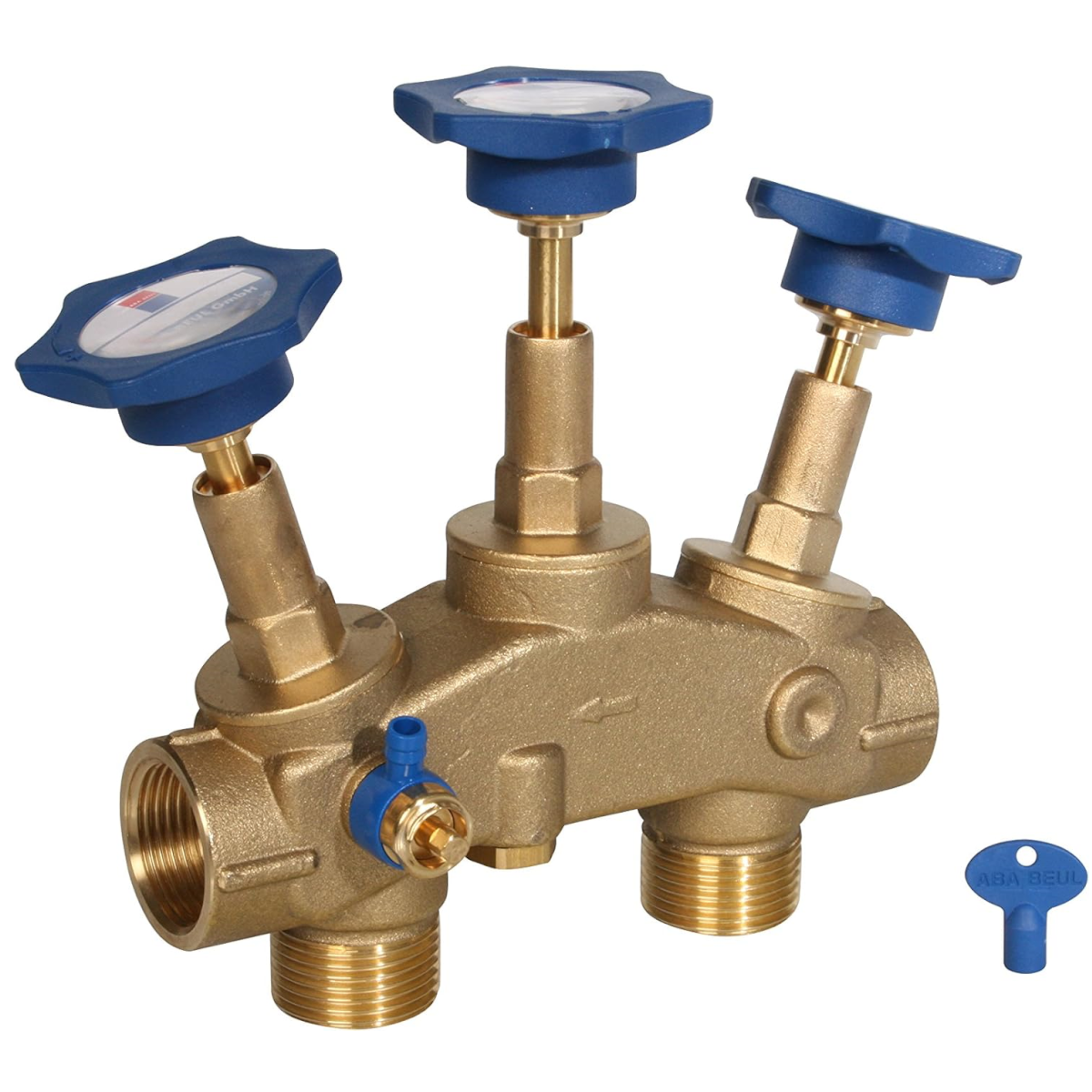

• mounting block

Download

• Assembly instructions
• Operating instructions
• Datasheet R2D2-72
