Heating boiler Wood ATMOS-GS Wood carburetor solid fuel for high efficiency

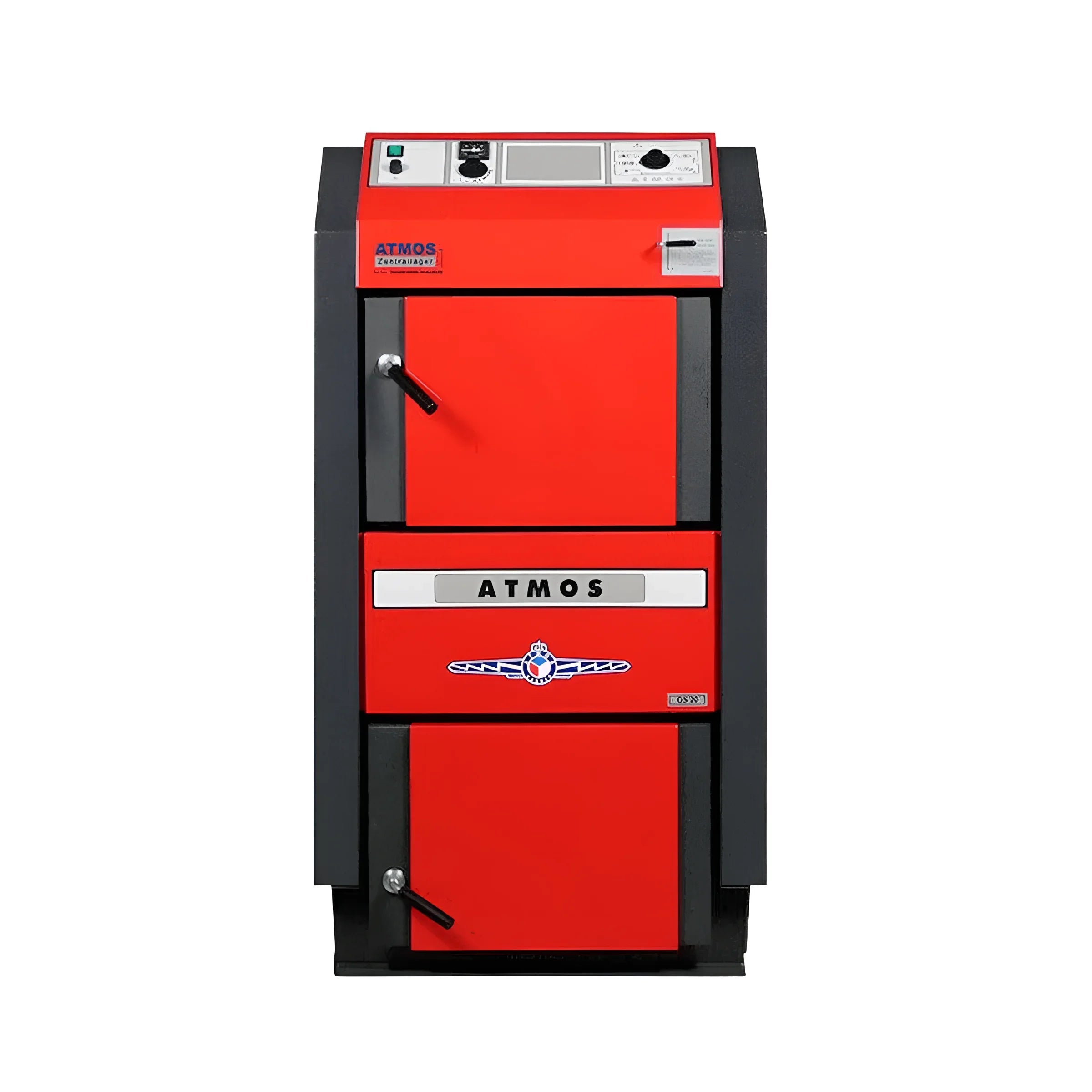

Wood boiler Atmos - GS20

Wood boiler Atmos -GS wood gasifier solid fuel achieve an efficiency of max. 87.1%.

It is spatially structured like the ATMOS GSE seriesHowever, Atmos dispenses with an additional exhaust heat exchanger in the GS series and uses a different structure for the ceramic molded parts in the filling and combustion chambers. As a result, it achieves a slightly lower efficiency than the GSE series.

Advantages: Wood boiler Atmos -GS wood gasifier solid fuel

• Wood gasifier made of high-quality 6 mm and 8 mm boiler steel
• Generous filling space
• Door hinge on the left, but can be replaced later
• Robust, replaceable protective lining in the filling and combustion chamber made of proven fireclay ceramic (up to 4 cm thick)
• Integrated safety heat exchanger 1/2 for thermal discharge protection
• Parallel and V-shaped filling chamber geometry for optimal combustion behavior and avoidance of hollow burning
• All-round thermal insulation made of mineral wool
• Automatic switch-off after the wood has burned down
• Boiler control panel prepared for the use of a weather-compensated control system, for several heating circuits, also for solar circuit.
• EN303-5 CE-0036

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 20 kW

• Efficiency 86.1%

• Tensile requirement 20 Pa

• CO content 242 mg/m³

• Dust emission 14 mg/m³

• Prescribed fuel: logs

• Maximum firewood length 330 mm

• Exhaust gas temperature 210 °C

• Exhaust gas mass flow 0.012 kg/s

• Height 1280 mm

• Width 678 mm

• Depth 758 mm

• Flue pipe connection 150/152 mm

• Weight 343.0 kg

Scope of delivery

• Wood gasifier Atmos GS 20 kW
• Assembly and operating instructions

Download

• Operating instructions
• Wood gasifier brochure
• Spare parts catalog
