Attack DPX Profi 80 kW wood carburet
Attack DPX Profi 80 kW

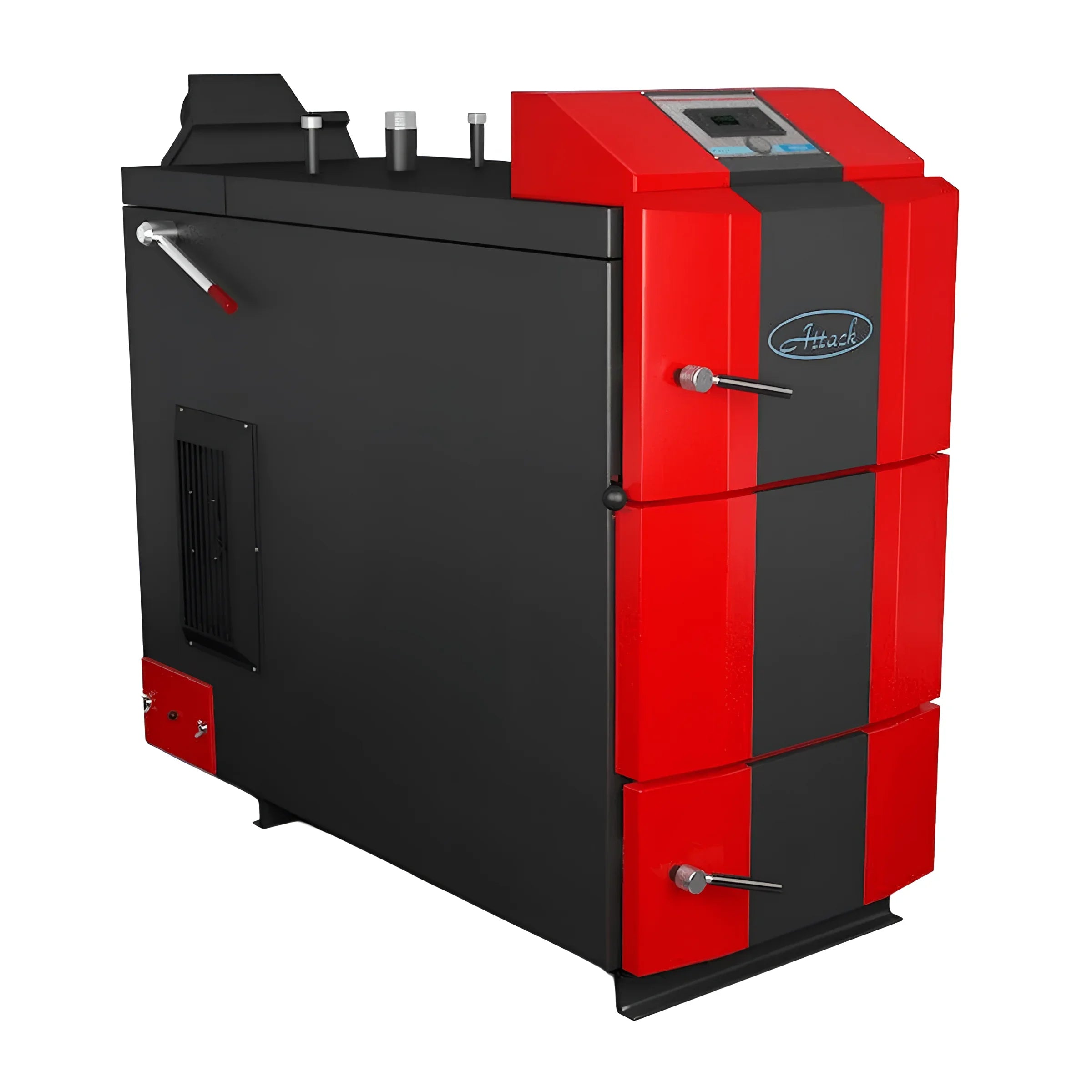

The ATTACK DPX 80 kW wood gasification boiler
is with his Power of 80 kW Ideal for larger buildings. It is equipped with a user-friendly PID control system to optimize the combustion process. It thus achieves excellent emission values and high efficiency.
Based on measured data such as boiler and flue gas temperatures, the control system automatically determines the optimal fan performance. All parameters are accessible via an LCD display. Parameter changes can be made using buttons on the boiler's control panel. Any error messages or warnings are indicated by LEDs. After the fuel has been burned, the boiler shuts down automatically.
The Attack DPX can be equipped at any time with an additional controller that supports the control of the buffer tank, the solar system or other heat sources in various designs and can be adjusted according to the customer's needs.
Advantages:
- Modern and innovative design
- Tube heat exchanger with movable turbulators
- Long-term tested construction
- Boiler efficiency 90.2 – 91.3%
- Cleaning the tube heat exchanger using a lever
- Large filling chamber that allows continuous and long combustion of the fuel during one charge
- Combustion of hard and soft wood, wood briquettes
- small amount of ash
- high customer comfort, reliable operation, easy operation and maintenance
- Made of high-quality boiler steel with a thickness of 6 mm, which ensures a long service life of the boiler
Technical data
- Rated power 80 kW
- Heat exchanger area 5.6 m²
- Volume of the filling chamber 440 dm³
- Dimensions of the filling chamber door 292 x 542 mm
- Prescribed chimney draft 35 Pa
- Max. operating pressure of the boiler 250 kPa
- Boiler weight 800 kg
- Diameter of the exhaust nozzle 200 mm
- Boiler height 1,575 mm
- Boiler width 915 mm
- Boiler depth 1,890 mm
- Length of the filling chamber 1,100 mm
- Protection class IP21
- Electrical power consumption 90 W
- Efficiency 86.5%
- Boiler class 5
- Flue gas temperature at nominal heat output 204 °C
- Flue gas mass flow at nominal heat output 0.045 kg/s
- Maximum noise level 65 dB
- Fuel type: Wood pieces with a relative humidity of 12% - max. 20%, ∅ 50 - 150 mm
- Average fuel consumption 21.5 kg/h
- Wood consumption per season (guideline value) 1 kW = 0.9 m³
- Maximum log length 1,000 mm
- Water volume in the boiler 250 liters
- Heating water temperature setting range 65 - 90 °C
- Voltage/Frequency 230 V/50 Hz
