Hot water tank 150 liters with heat exchangers and upper connection
Manufacturer Information
Name: Zakład Urządzeń Grzewczych ELEKTROMET
Address: Gołuszowice 53, 48-100 Głubczyce, Pl
Email: export@elektromet.com.pl
Website: https://elektromet.pl/en/
European Manufacturer: Yes
Guaranteed safe checkout
Hot water tank 150 liters with heat exchangers and upper connection
Hot water tank drinking water tank 150 liters with 1 WT
Hot water tank for drinking water 150 liters with 1 heat exchanger
The Hot water tank 150 liters with 1 heat exchanger is used for central and safe hot water heating.
The highly efficient heat exchanger heats Drinking water/process water inside, via the heat energy from a thermal solar system or from a boiler. An additional option for heating your hot water is to connect the Photovoltaic system with a retrofittable 1 1/2" heating element, which is connected to the drinking water tank. For a long service life, the hot water tank features corrosion protection in the form of a high-quality enamel coating. A built-in magnesium anode (protective, sacrificial anode) provides additional corrosion protection inside the tank.
Advantages :
- Very good price-performance ratio
- High hot water comfort for a requirement of 100 - 180 liters
- A highly efficient heat exchanger
- With circulation connection
- Connection for a 1 1/2" Electric heating element
- Large magnesium anode for protection against corrosion
- Thermal insulation polyurethane foam (PUR), firmly foamed
- Corrosion protection inside through a high-quality enamel coating
- Can be combined with solid fuel boilers and wood gasification boilers, pellet boilers, combi boilers or solar thermal systems

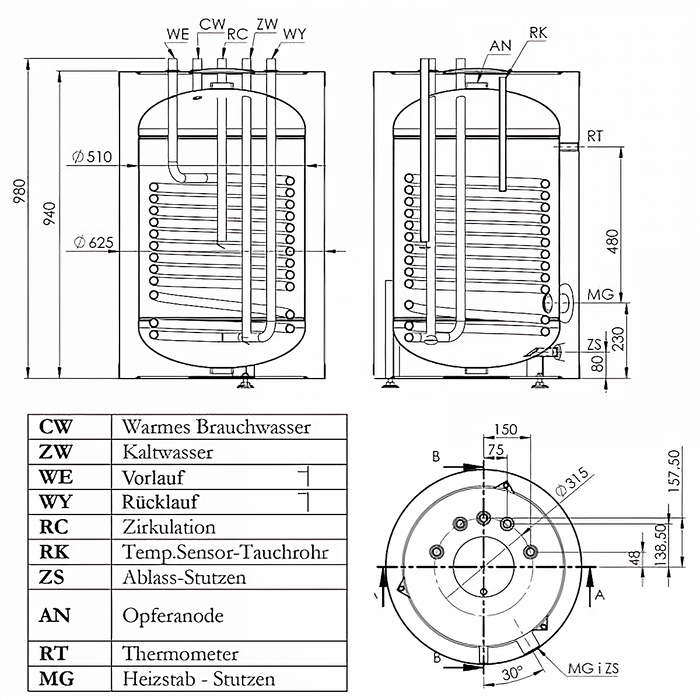

Technical data 150 liter hot water tank:
- Volume: 150 liters
- Heat exchanger surface: 1.4 m²
- Heat exchanger capacity: 6.1 liters
- Connection flow and return heating: 3/4" AG
- Connection flow and return domestic water: 3/4" AG
- Circulation connection: 3/4" AG
- Magnesium anode connection: 1 1/4" IG
- Connection for electric heating: 1 1/2" IG
- Thermal insulation: polyurethane foam (PUR)
- Max. operating temperature storage 95 °C
- Max. operating pressure storage tank/heat exchanger: 6 bar
- Max. operating temperature heat exchanger 100 °C
- Loss: 36 watts
- Inner diameter of storage tank: 510 mm
- Dimensions with insulation (diameter x height): 625 x 980 mm
- Weight (empty): 76 kg
Scope of delivery: Hot water tank 150 liters with 1 WT
- Hot water tank with 1 heat exchanger including insulation
- safety valve
- Operating and maintenance instructions
