unity Exclusive | VIH R 120/6 H
uniSTOR exclusive | VIH R 120/6 H

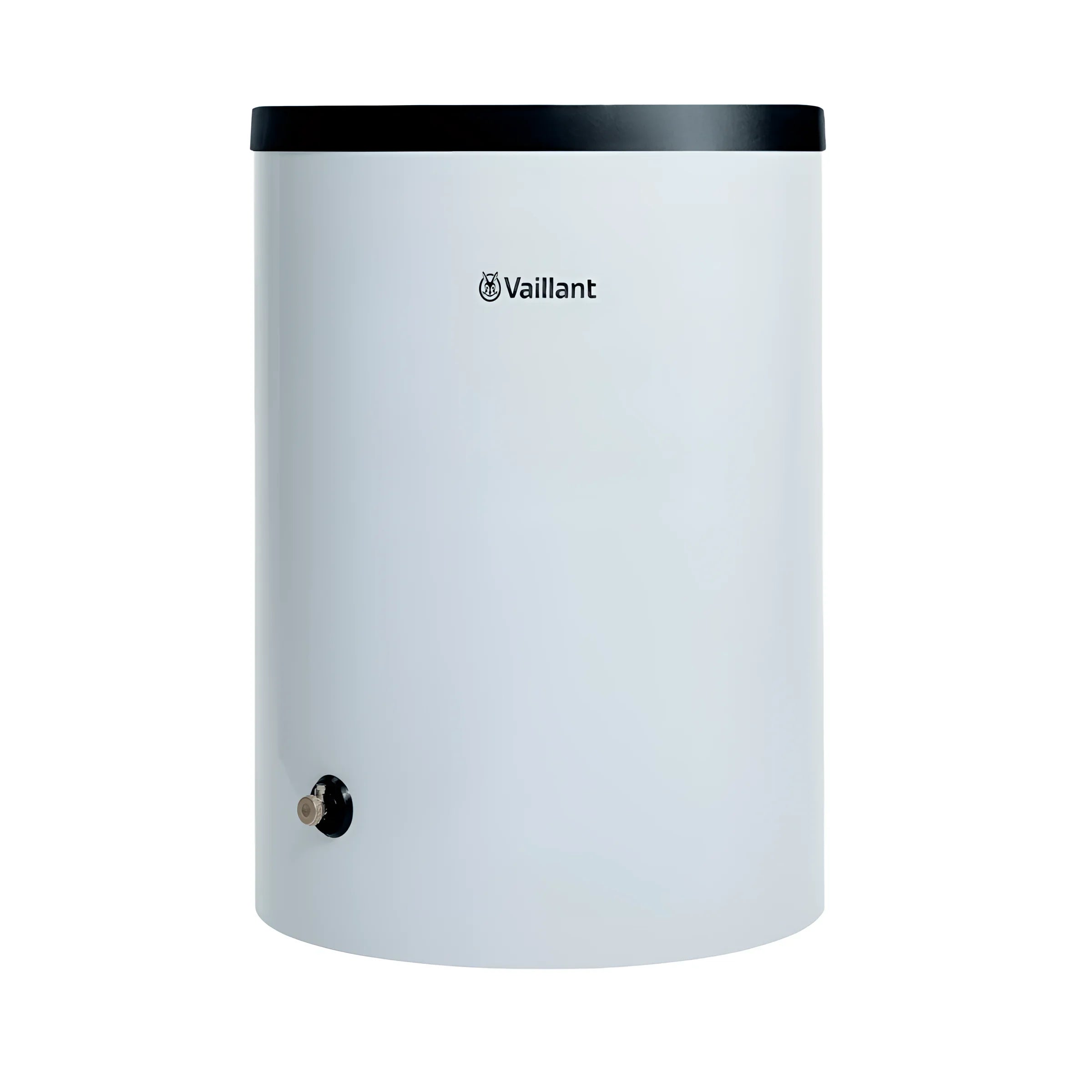

Everyone Vaillant hot water tank uniSTOR VIH R 120/6 H offers you both economical operation with low energy consumption and maximum hot water comfort.
The storage tanks, which are technically tailored to Vaillant heating appliances, are available in two product lines and three different sizes: with 120, 150 and 200 litres capacity.
The uniSTOR VIH RB product line impresses with high-quality standard thermal insulation at a more affordable price, the product line uniSTOR VIH RH offers even higher efficiency, because the vacuum insulation jacket ensures a significant reduction in standby energy losses, thus reducing energy consumption and energy costs.
Product features
- Enamelled hot water tank with thermal insulation
- Internal tube heat exchanger
- Magnesium protective anode
- Gravity brake
- Circulation connection
- Drain tap
- Cover with fleece inserts for thermal insulation and cladding of the piping on the storage tank
Special features
- Hot water tank, indirectly heated
- Vacuum thermal insulation combination for extremely low heat losses
- All connections led out to the top
- Optimally fitting piping kits available
- Drinking water side (storage tank and heat exchanger) with high-quality enamel and magnesium protective anode
Technical data: uniSTOR exclusive | VIH R 120/6 H
| Technical data | Unit | VIH R 120/6 H |
|---|---|---|
| Total memory content | l | 117 |
| DHW output power heating flow 80 °C, storage temperature 60 °C | l/10min | 163 |
| Continuous hot water output heating flow 80 °C, tap temperature 45 °C | l/h | 527 (21.7 kW) |
| Performance index NL heating flow 80 °C, storage temperature 60 °C | 01.Apr | |
| Standby heat loss storage | kWh/24h | 0.6 |
| Contents heating side | l | 4.8 |
| Max operating pressure hot water side | bear | 10 |
| Max operating pressure on the heating side | bear | 10 |
| Hot water temperature (max) | °C | 85 |
| Heating temperature (Max) | °C | 110 |
| Weight ready for use | kg | 185 |
| Product dimensions (height/width/depth) | mm | 961/590/590 |
| Product weight | kg | 68 |
| Heating connection (flow and return) | R1 | |
| Circulation connection | R 3/4 | |
| Anode connection | G 1/2 | |
| Cold water connection, hot water | R 3/4 |
Scope of delivery: uniSTOR exclusive | VIH R 120/6 H
- 1 uniSTOR VIH R
- 1 gravity brake for heating circuit
- 1 cap for circulation connection
- 1 cladding cover and thermal insulation for the piping
- 2 fleece inserts (thermal insulation) for the cladding cover
- 1 Operating and installation instructions
