LK 840 Thermomix® 2.0 3-way mixer

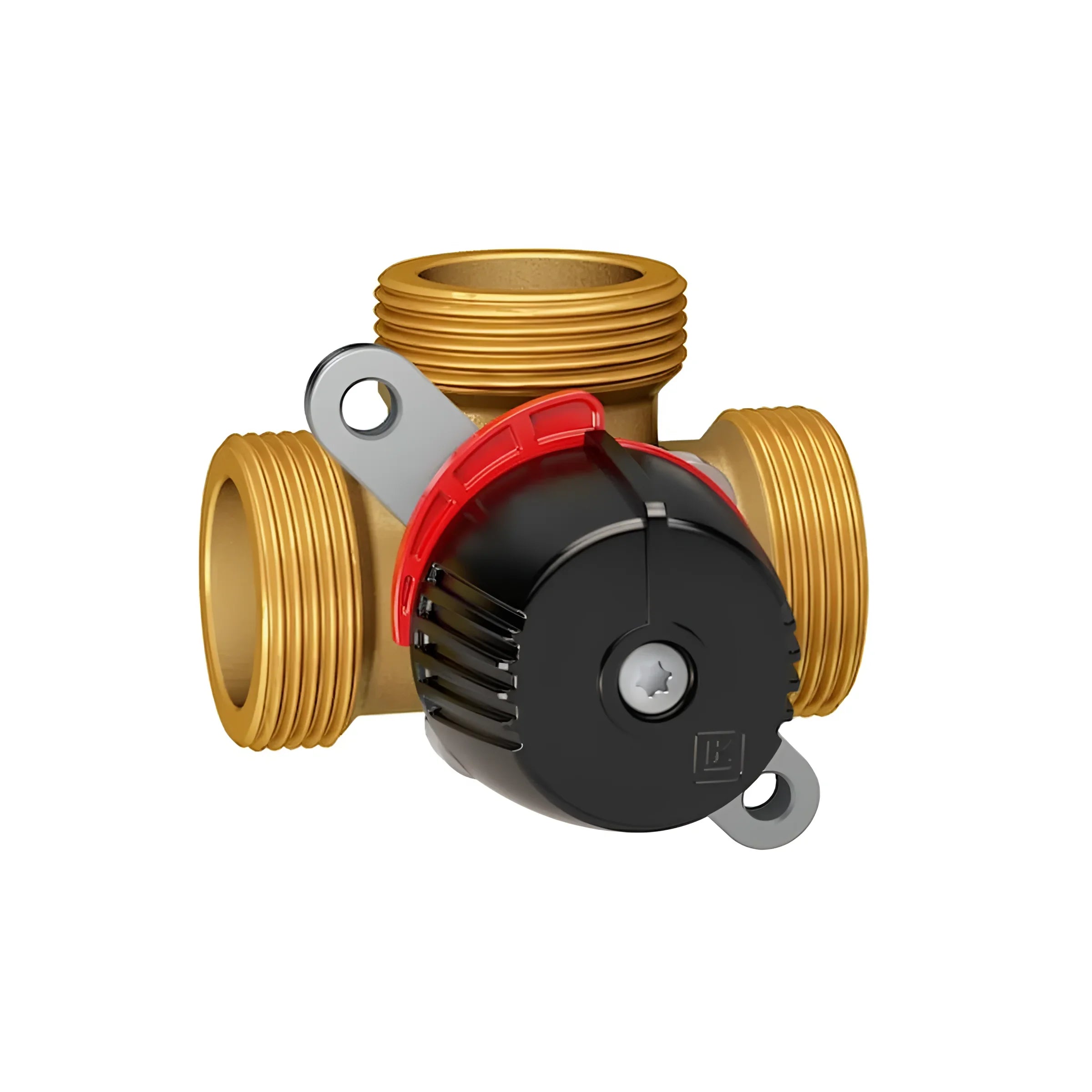

LK 840 ThermoMix® 2.0 3-way mixer – precision and efficiency for your heating system
The LK 840 ThermoMix® 2.0 3-way mixer is the ideal solution for optimizing temperature control in your heating or cooling system. This high-quality product impresses with its robust construction, precise control options, and easy operation. Perfectly suited for use in modern heating systems, the mixer not only ensures greater energy efficiency but also a pleasant climate all year round.
Versatile applications
Thanks to its sophisticated design, the LK 840 ThermoMix® 2.0 can be used in a wide variety of systems. Whether in heating systems with underfloor heating, radiators, or solar systems – this 3-way mixer ensures reliable temperature control. It optimally mixes hot and cold water to achieve the desired temperature, which not only saves energy but also extends the lifespan of your heating components.
With its wide range of applications, the mixer is ideal for both private households and commercial applications. This makes it the first choice for anyone seeking a reliable and durable heating control solution.
High-quality materials and robust construction
The ThermoMix® 2.0 is constructed from durable and corrosion-resistant materials that easily meet the demands of modern heating systems. The precision of the internal components ensures consistently high performance for many years. The mixer is designed for easy handling while offering the robustness necessary for long-term use, even under heavy loads.
The high-quality materials also ensure that the 3-way mixer functions reliably even under extreme temperature conditions. This makes the LK 840 ThermoMix® 2.0 ideal for demanding systems.
Easy installation and convenient operation
Another advantage of the LK 840 ThermoMix® 2.0 is its straightforward installation. Thanks to its standardized connections, the mixer can be quickly and easily integrated into existing systems. Its intuitive operation ensures that users can easily adjust the desired settings without requiring any special prior knowledge.
With its precisely adjustable temperature control options, the LK 840 offers maximum flexibility and convenience. Whether regulating the flow temperature or mixing circulation flows, this mixer always delivers the desired results.
Energy efficiency and environmental friendliness
With the LK 840 ThermoMix® 2.0, you not only reduce your energy costs but also make an important contribution to environmental protection. The effective mixing of hot and cold water allows the heating system to operate more efficiently, reducing energy consumption. This not only protects the environment but also saves costs in the long run.
The mixer's energy efficiency makes it an excellent choice, especially for modern systems designed for sustainability and resource conservation. At the same time, it improves the overall performance of the heating system, noticeably increasing the comfort in your home.
Invest in quality and reliability
The LK 840 ThermoMix® 2.0 3-way mixer combines advanced technology with proven quality. With its versatility, robust construction, and ease of use, it's ideal for anyone looking for a long-term solution for their heating system.
Experience a new dimension in heating control with the LK 840 and benefit from maximum efficiency, durability, and ease of use. Choose the ThermoMix® 2.0 – a product that redefines convenience and functionality.
Technical data
Rotation angle: | 90°/360° |
Torque: | < 1 Nm (DN15-32)* < 2.1-2.3 Nm (DN40-50)* |
Leakage: | < 0.2% of Kvs at 100 kPa |
Max. working pressure: | 1.0 MPa (10 bar) |
Max. differential pressure: | 100 kPa (1 bar) |
Working temperature: | Min. 5 °C/Max. 110 °C (120 °C briefly) |
Ambient temperature: | Min. 5 °C/Max. 60 °C |
Thread standard: | Rp - internal thread, G - external thread |
Liquid 1: | Water - Glycol max. 50% Ethanol max. 30% |
Material, housing: | Brass EN 12165 CW617N |
Material, internal lid: | PPS composite |
Material, external cover: | Aluminum DN 15 - 32, composite DN 40 - 50 |
Material, internal parts/shaft: | Brass EN 12165 CW617N |
Material, seals: | EPDM |
Miscellaneous: | * When used as a distributor, the torque doubles |
Shaft seal: | Two O-rings |
